Артикул
Название
Примечание
Количество
1

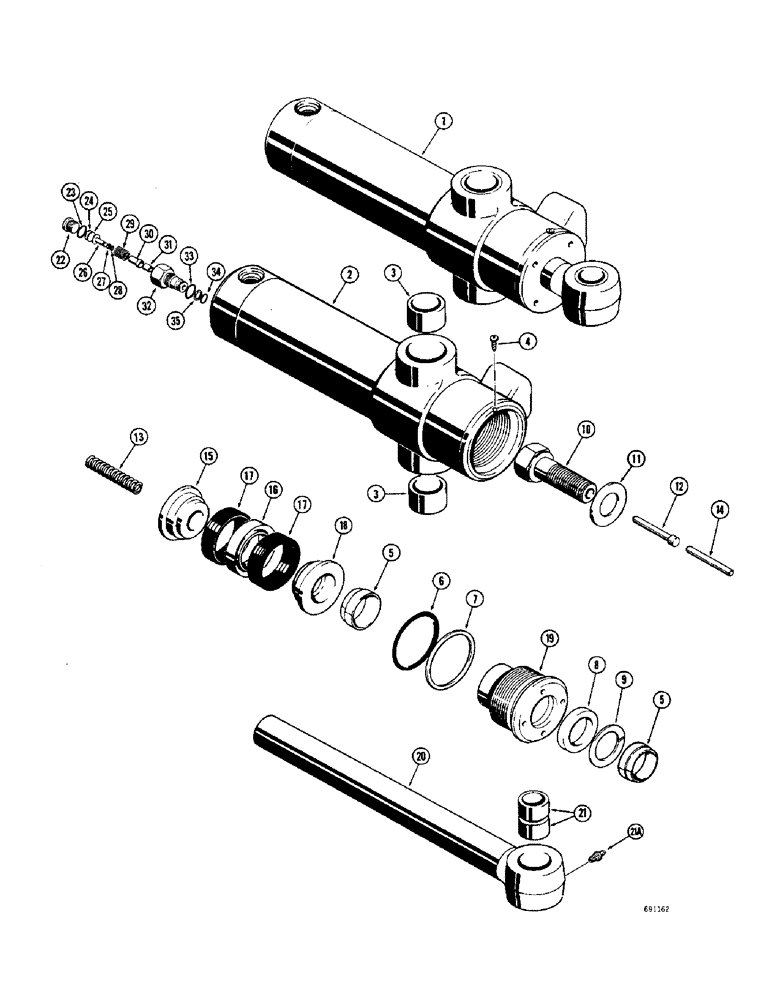

D45303
CYLINDER
- hydraulic, swing (L.H.) 4-1/2" I.D. x 11-3/8" stroke, Includes: Ref. 2 - 35
1шт.
D45304
CYLINDER
- hydraulic, swing (R.H.) 4-1/2" I.D. x 11-3/8" stroke, Includes: Ref. 2 - 35
1шт.
2
D45305
CYLINDER
TUBE - cylinder, L.H., Includes: Ref. 3
1шт.
D45306
CYLINDER
TUBE - cylinder, R.H., Includes: Ref. 3
1шт.
3
D44543
BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L
- tube
2шт.
D47651
GLAND
KIT - packing, gland type cylinder, Includes: Ref. 4 - 9
1шт.
4
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 x 1/4"
1шт.
5
D27380
SCRAPER RING
WIPER - rod
2шт.
6
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
SEAL - "O" ring, gland
1шт.
7
D42452
RING
- backup, gland seal
1шт.
8
D36971
RING
SEAL - rod
1шт.
9
D28500
RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk
- backup, rod seal
1шт.
10
D44557
BOLT
- special
1шт.
11
D43745
WASHER
- special, bolt (When stock is exhausted, order D95033 washer for service)
1шт.
11
D95033
WASHER
- special, bolt
1шт.
12
D46171
AXLE PIN
PIN - restrictor
1шт.
13
D44554
VALVE SPRING
SPRING - pin
1шт.
14
D46155
SPACER
STOP - restrictor pin
1шт.
15
D38934
PISTON
- split, bolt end (When stock is exhausted, order D46931 piston for service)
1шт.
15
D46931
PISTON
- split, bolt end
1шт.
16
D47210
BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk
RING - packing, piston
1шт.
17
D47205
PACKING
- piston, chevron
2шт.
18
D44556
PISTON
- split, rod end (When stock is exhausted, order D49166 piston for service)
1шт.
18
D49166
PISTON ASSY.
PISTON - split, rod end
1шт.
19
D44552
GLAND
- packing
1шт.
20
D47975
PISTON ROD
ROD - piston (2" dia.), Includes: Ref. 21
1шт.
21
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- piston rod
2шт.
21a
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
D44766
VALVE
CARTRIDGE - relief valve, non-adjustable, Includes: Ref. 22 - 35
1шт.
22
D40354
PLUG
- relief valve, Includes: Ref. 23
1шт.
24
D40355
SHIM,.005" Thk
Spring guide .005" Thk
1шт.
25
16917
SHIM
- spring guide, .010"
1шт.
26
D37073
GUIDE
- spring
1шт.
27
D40357
RING
- backup, spring guide
1шт.
23
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, plug
1шт.
28
D40356
O-RING
SEAL - "O" ring, spring guide
1шт.
29
D37148
SPRING
- plunger
1шт.
30
D37074
PLUNGER
- relief valve
1шт.
31
D37075
SEAT
- plunger
1шт.
32
D47667
CAP
BODY - relief valve
1шт.
33
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Valve body to cylinder
1шт.
34
D26265
O-RING,1.78mm Thk x 14mm ID, 70 Duro
SEAL - "O" ring, valve body
1шт.
35
D37071
RING
- backup, valve body seal
1шт.
Выбрано товаров: 43
