Артикул
Название
Примечание
Количество
1
G32601

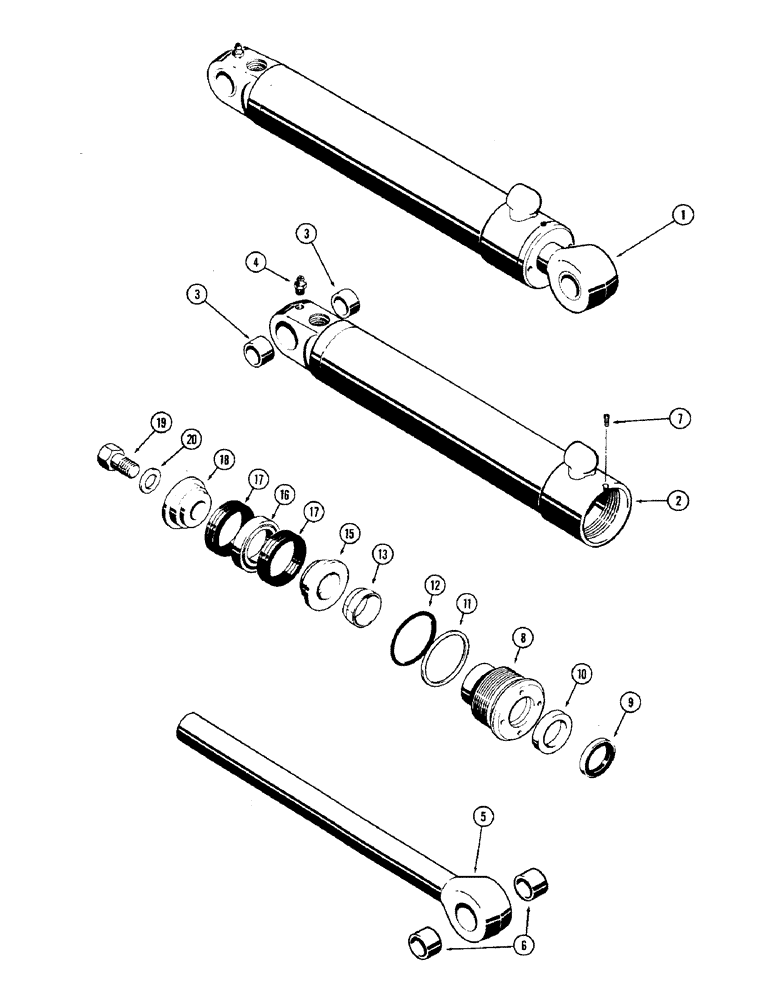

CYLINDER ASSY. - stabilizer, Includes: Ref. 2 - 20
1шт.
2
D42707
CYLINDER
TUBE ASSY. - cylinder, Includes: Ref. 3
1шт.
3
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- tube
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" P.T. str.
1шт.
5
D42703
ROD ASSY.
ROD - piston, Includes: Ref. 6
1шт.
6
D35071
BUSHING
- rod
2шт.
7
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - #8 - 32 x 1/4" self-tapping
1шт.
8
G32737
GLAND
- packing
1шт.
9
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - rod, outer
1шт.
Part of Seal Kit G32299
1шт.
10
D36971
RING
SEAL - rod
1шт.
Part of Seal Kit G32299
1шт.
11
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
1шт.
Part of Seal Kit G32299
1шт.
12
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - 4 x 4-1/4 x 1/8", Includes: Ref. 13 - 20
1шт.
Part of Seal Kit G32299
1шт.
13
D27380
SCRAPER RING
WIPER - rod, inner
1шт.
Part of Seal Kit G32299
1шт.
15
D28371
PISTON
- split, rod end
1шт.
16
D47209
BEARING,3.006" ID x 3.987" OD x 0.631"
RING - piston, vee seal
1шт.
17
D47204
PACKING,89.15mm ID x 100.86mm OD
- piston, vee seal
2шт.
Part of Seal Kit G32299
1шт.
18
D28370
PISTON
- split, bolt end
1шт.
19
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
Piston retaining Hex, 1 1/4"-12 x 2 1/2", G8
1шт.
20
G32351
WASHER
- piston bolt, 1-11/32 x 2-1/2 x 9/64"
1шт.
G32299
KIT
SEAL KIT - cylinder packing, Incl. Ref. 9, 10, 11, 12, 13 and 17
1шт.
Выбрано товаров: 26
