Артикул
Название
Примечание
Количество
1
D42708

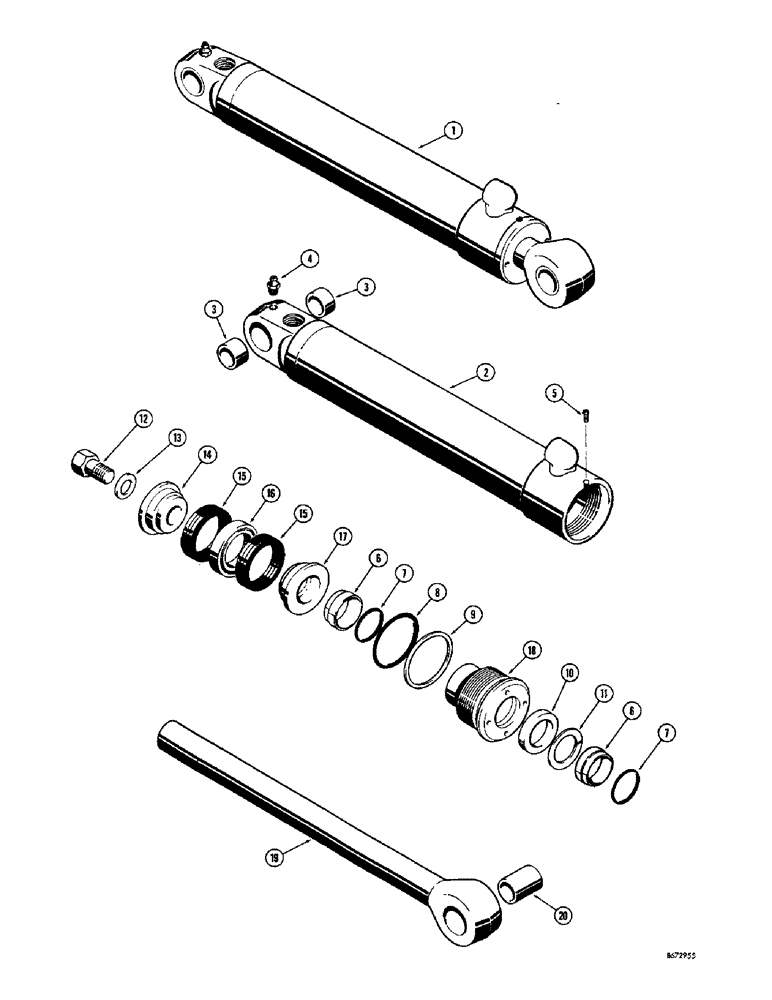

CYLINDER - hydraulic, stabilizer (4" I.D. x 21-3/8" stroke), Includes: Ref. 2 - 20
2шт.
2
D42707
CYLINDER
TUBE - cylinder, Includes: Ref. 3
1шт.
3
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- tube
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
D42876
GLAND
KIT - packing, gland type cylinder, Includes: Ref. 5 - 11
1шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4"
1шт.
6
D27380
SCRAPER RING
WIPER - rod
2шт.
7
D26115
O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro
SEAL - "O" ring, wiper (If used)
2шт.
8
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
SEAL - "O" ring, gland
1шт.
9
D36095
BACK-UP RING
- backup, gland seal
1шт.
10
D36971
RING
SEAL - rod
1шт.
11
D28500
RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk
- backup, rod seal
1шт.
12
D31642
BOLT
- special
1шт.
13
D36434
WASHER
- special (When stock is exhausted, order D95033 washer for service)
1шт.
13
D95033
WASHER
- special
1шт.
14
D28370
PISTON
- split, bolt end (When stock is exhausted, order D46930 piston for service)
1шт.
14
D46930
PISTON
- split, bolt end
1шт.
15
D43112
PACKING
- piston, chevron
2шт.
16
D43113
PACKAGE
RING - packing, piston
1шт.
17
D28371
PISTON
- split, eye end ( When stock is exhausted, order D46424 piston for service)
1шт.
17
D46424
PISTON
- split, eye end
1шт.
18
D45071
GLAND
- packing
1шт.
19
D42703
ROD ASSY.
ROD - piston (2" dia.), Includes: Ref. 20
1шт.
20
D42788
BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L
- rod
1шт.
Выбрано товаров: 24
