Артикул
Название
Примечание
Количество

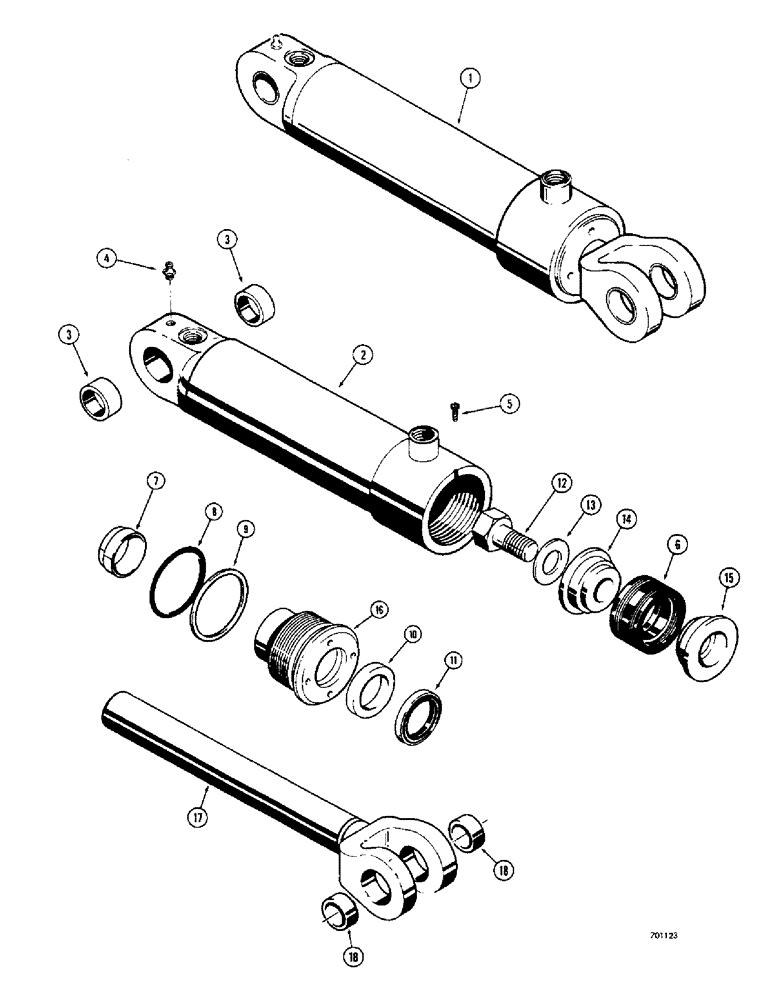

1
G32141
CYLINDER
- hydraulic, Hydra-Leveling (3" I.D. x 7-1/4" stroke), Includes: Ref. 2 - 18
2шт.
2
D35129
CYLINDER
TUBE - cylinder, Includes: Ref. 3
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tube
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4"
1шт.
G32289
SEAL
KIT - packing, gland type cylinder, Includes: Ref. 6 - 11
1шт.
6
D28374
PACKAGE,SERVICE
PACKING - piston
1шт.
7
D27432
SHIM
- rod, inner
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL - "O" ring, gland
1шт.
9
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup, gland seal
1шт.
10
D36970
CUP
SEAL - rod
1шт.
11
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - rod, outer
1шт.
12
D32861
BOLT
- special
1шт.
13
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
- special
1шт.
14
D28896
PISTON
- split, bolt end
1шт.
15
D28897
PISTON
- split, yoke end
1шт.
16
G32115
GLAND
- packing
1шт.
17
D35126
ROD
- piston (1-3/4" dia.), Includes: Ref. 18
1шт.
18
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- rod
2шт.
Выбрано товаров: 19
