Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

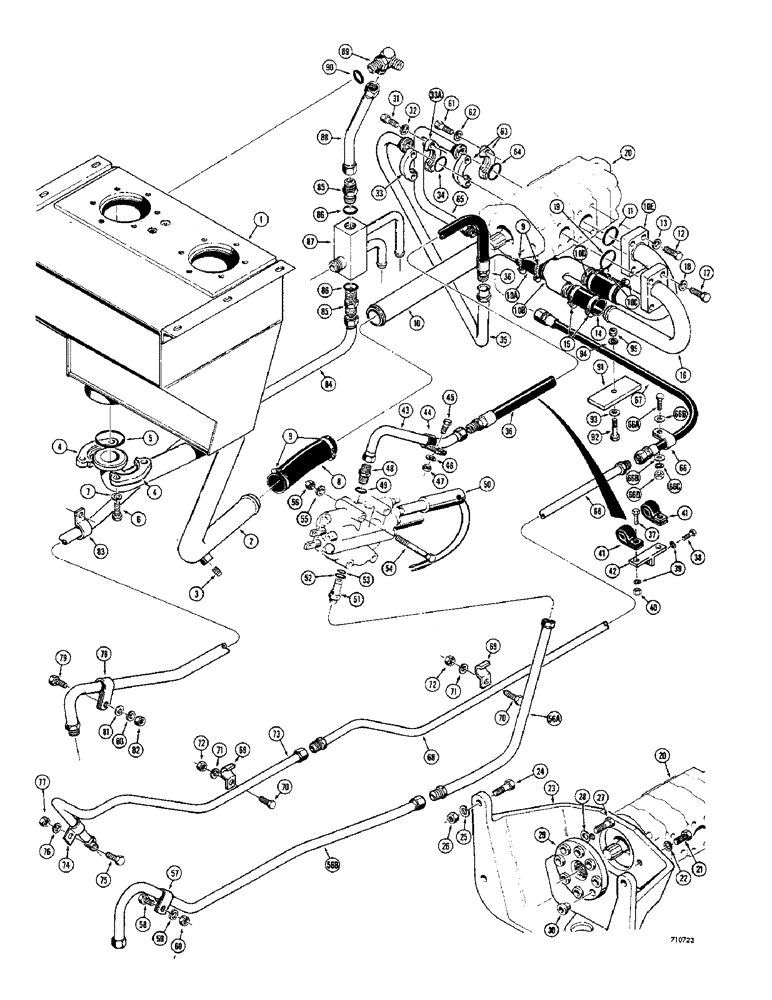

TANK - hydraulic oil reservoir (See Figure 122 for service)
1шт.
2
L17469
TUBE - suction, Serial Range: tank-pump
1шт.
3
221-674
DRAIN PLUG,Sq Hd, 1/2" NPT
PLUG - drain, magnetic (1/2" NPT)
1шт.
4
A14141
FLANGE
- split, tube (2")
2шт.
5
A35812
O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro
SEAL - "O" ring, flange
1шт.
6
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
7
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
4шт.
8
L25993
HOSE,2.00" ID x 8.00"
Suction, Tank to Junction Tube 2.00" ID x 8.00"
1шт.
9
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
4шт.
10
L17964
TUBE - suction tube to pump 8.7" L
1шт.
10a
L40465
HOSE - low pressure, tank to joint (4" long) 2" I.D.
1шт.
10b
L40462
JOINT TURNING
Y JOINT - junction, suction, Serial Range: tube-pump
1шт.
10c
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
2шт.
10d
L19862
HOSE,1.50" ID x 4.00", SAE 100R1
Low Pressure, Joint to Pump 1.50" ID x 4.00", SAE 100R1
1шт.
10e
L40002
TUBE,1.5" OD x 2.8" L
- suction, joint to pump
1шт.
11
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
12
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
4шт.
13
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
4шт.
14
L40547
HOSE
- suction, junction to pump (1-1/4" I.D. x 4" long)
1шт.
15
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
2шт.
16
L40464
TUBE
- suction, junction to pump (1-1/4")
1шт.
17
13-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
4шт.
18
92-7
LOCK WASHER,7/16"
med. sect. 7/16"
4шт.
19
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
SEAL - "O" ring
1шт.
20
L26379
PUMP
- hydraulic, equipment (25 G.P.M. and 17 G.P.M. - 42 G.P.M total at 2000 P.S.I. at 2000 R.P.M.) See Figure 254
1шт.
21
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
22
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
2шт.
23
L10793
BRACKET
- pump and engine mounting
1шт.
24
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
4шт.
25
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
26
25-1012
NUT,3/4"-10, G5
4шт.
27
L11274
LOCK BOLT
BOLT - special, coupling mounting
8шт.
28
195-29
WASHER,7/16"
- plain () 7/16"
8шт.
L16692
COUPLING, BREAK AWAY
COUPLING - pump to crankshaft pulley, Includes: Ref. 29 and 30
1шт.
29
NSS
NOT SOLD SEPARAT
HUB - splined
1шт.
30
G36905
BLOCK
BUSHING - hub
8шт.
31
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
HHCS - 3/8" - 16 NC x 1-1/2"
4шт.
32
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
4шт.
33
A12306
FLANGE
- split, tube (1")
1шт.
33a
L19864
CLAMP
FLANGE - split, tube (1") Sheared edge
1шт.
34
A7560
O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro
SEAL - "O" ring, flange
1шт.
35
L25909
TUBE ASSY.
TUBE - pump to loader control valve, at pump
1шт.
36
L11315
HOSE
- pressure, pump to loader control valve (When stock is exhausted, order L46758 for service)
1шт.
36
L46758
HOSE ASSY.
HOSE AND TUBE ASSEMBLY - pressure, pump to loader control valve
1шт.
37
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Clamp to bracket Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
38
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd
1шт.
39
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
3шт.
40
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
41
R13931
CLAMP
- hose
2шт.
42
L18957
BRACKET - hose mounting
1шт.
43
L11472
TUBE,1" OD x 12.44, 6.06" L
- pump to loader control valve, at valve (When stock is exhausted, order L46758 for service)
1шт.
43
L46758
HOSE ASSY.
HOSE AND TUBE ASSEMBLY - pump to loader control valve
1шт.
44
49789
CLAMP
- tube
1шт.
45
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
46
92-5
LOCK WASHER,5/16"
med. sect. 5/16"
1шт.
47
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
48
L12050
CONNECTOR, ELEC
ADAPTER - male, straight (Special), Includes: Ref. 49
1шт.
49
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
50
REF
INSTRUCTION
VALVE - hyd., ldr. control (See Figure 232 for proper valve), Includes: Ref. 51 - 53
1шт.
51
L30446
FITTING
CONNECTOR - power beyond, Includes: Ref. 52 and 53
1шт.
52
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
SEAL - "O" ring, connector (Large)
1шт.
53
L32680
RING
SEAL - "O" ring, connector (Small)
1шт.
54
13-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
HHCS - 3/8" - 16 NC x 4-1/2"
3шт.
55
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
3шт.
56
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
3шт.
56a
L26259
TUBE - ldr. valve to b/hoe valve, end inlet (At ldr. valve) 1" OD x 16.7, 12.38" L
1шт.
56b
L25917
TUBE,36.1, 8.3" L
- ldr. valve to b/hoe valve, end inlet (At b/hoe valve)
1шт.
57
49840
CLAMP
- tube
1шт.
58
13-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd
1шт.
59
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
60
25-104
NUT,1/4"-20, G5
1шт.
61
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
HHCS - 3/8" - 16 NC x 1-1/2"
4шт.
62
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
4шт.
63
A16961
FLANGE
- split (3/4")
2шт.
64
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
65
L25900
TUBE ASSY.
TUBE - pump to backhoe valve, center inlet (At pump)
1шт.
66
R14098
CLAMP,1 1/4", Insul, 5/16" Bolt
- tube
1шт.
66a
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
66b
95-5
WASHER,3/8" x 7/8" x .083"
- standard wrot (5/16")
2шт.
66c
92-5
LOCK WASHER,5/16"
med. sect. 5/16"
1шт.
66d
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
67
D31796
HOSE
- pump to backhoe (29" long)
1шт.
68
L26262
TUBE - pump to backhoe valve, center inlet (Intermediate) 0.75" OD x 69.6, 4.25" L
1шт.
69
L25930
CLAMP
- tube
2шт.
70
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
HHCS - 3/8" - 16 NC x 1/2"
2шт.
71
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
72
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
73
L25921
TUBE,0.75" OD x 26.8, 6.9" L
- pump to backhoe valve, center inlet (Rear)
1шт.
74
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
- tube
1шт.
75
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
76
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
1шт.
77
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
1шт.
78
R14098
CLAMP,1 1/4", Insul, 5/16" Bolt
- tube
1шт.
79
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
80
92-5
LOCK WASHER,5/16"
med. sect. 5/16"
1шт.
81
95-5
WASHER,3/8" x 7/8" x .083"
- plain (5/16")
1шт.
82
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
83
L19682
CLAMP - tube, at fuel tank mounting bolt
1шт.
84
L25919
TUBE - return, backhoe valve to reservoir 1.25" OD x 68.8, 8.6" L
1шт.
85
218-5072
HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB
CONNECTOR - straight, male, Includes: Ref. 86
2шт.
86
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
87
L24325
MANIFOLD - oil cooler (See Figure 196 for related parts)
1шт.
88
L25792
TUBE - return, Serial Range: manifold-reservoir
1шт.
89
L42736
JUNCTION - special, 90 degrees, Includes: Ref. 90
1шт.
90
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
91
L41803
BRACKET - hose mounting
1шт.
92
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
93
95-6
WASHER,3/8"
- standard wrot
1шт.
94
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
1шт.
95
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
1шт.
Выбрано товаров: 110
