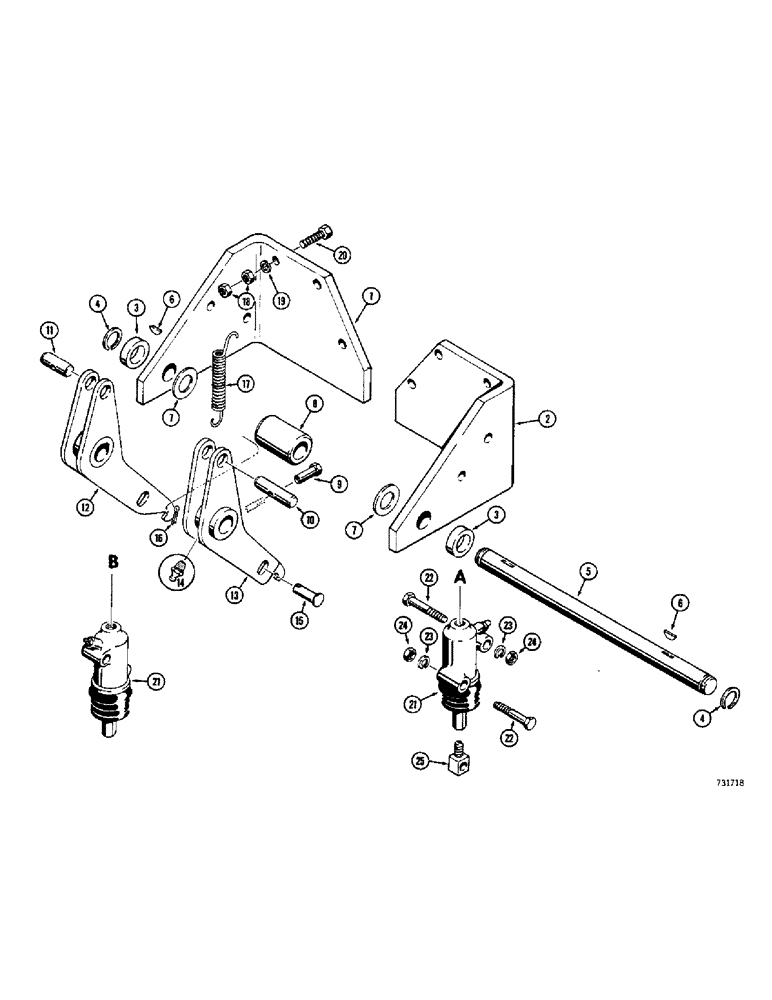

Запчасти Case 680CK (096) - WHEEL BRAKE CYLINDERS AND LINKAGE (33) - BRAKES & CONTROLS

1

L16361

BRACKET - wheel cylinder support, L.H.

1шт.

2

L16360

BRACKET

- wheel cylinder support, R.H.

1шт.

3

L40650

SPACER

- bracket

2шт.

4

F62093

RING, SNAP

RING - snap

2шт.

5

L25738

SHAFT

- bellcrank pivot

1шт.

6

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

7

195-79

WASHER - plain (1-3/16")

2шт.

8

L25579

SPACER -, Serial Range: bellcrank-differential

1шт.

9

A27686

NUT

- retaining, differential, Serial Range: rod-trunnion

2шт.

10

L25736

TRUNNION - brake, bellcrank to differential brake rod (R.H.)

1шт.

11

L25907

TRUNNION - brake, bellcrank to differential brake rod (L.H.)

1шт.

12

L40699

BELLCRANK - brake, L.H.

1шт.

13

L40700

GELLCRANK - brake, R.H.

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

15

R22609

PIN -, Serial Range: bellcrank-cylinder

2шт.

16

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

17

R15380

SPRING

- return, wheel cylinder

2шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

4шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

2шт.

21

L25589

CYLINDER

- wheel, brake (Parts list Figure 98)

2шт.

22

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

4шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

25

L25562

ROD EYE - push, wheel cylinder

2шт.
