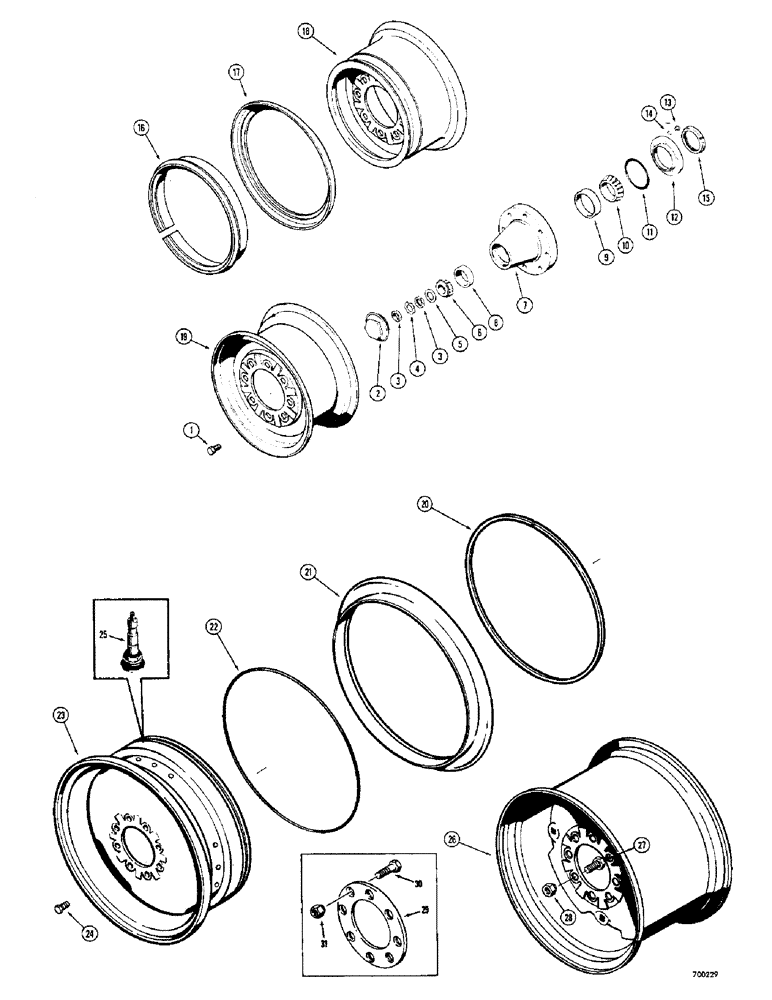

Запчасти Case 680CK (112) - FRONT STEERING WHEELS, HUB, BEARINGS AND RELATED PARTS / REAR WHEELS (25) - FRONT AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
1
B18264
WHEEL BOLT
BOLT -, Serial Range: wheel-hub
16шт.
2
A26011
CAP
- outer bearing, wheel
2шт.
3
25-1516
NUT,Jam, 1"-14, G5
- hex. lock (1" - 14 NF)
4шт.
4
A26542
LOCK WASHER
- lock, special
2шт.
5
A26681
BEARING WASHER
WASHER - thrust, outer bearing
2шт.
6
A26679
ROLLER BEARING,1.25" ID x 0.9983"
CONE - bearing, outer
2шт.
L11382
WHEEL ASSY.
HUB ASSEMBLY - front steering wheel, Includes: Ref. 7 - 9
2шт.
7
NSS
NOT SOLD SEPARAT
HUB - front steering wheel
1шт.
8
A26680
ROLLER BEARING,2.7510" OD x 0.75"
CUP - bearing, outer
1шт.
9
A26678
BEARING CUP,3.6718" OD x 0.9375"
CUP - bearing, inner
1шт.
10
A27301
ROLLER BEARING,2" ID x 1.193"
CONE - bearing, inner
2шт.
11
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
SEAL - "O" ring, retainer
2шт.
12
A26992
RETAINER
- seal
2шт.
13
75-48
SCREW,Rd, 1/4" - 20 x 1/2"
RHMS - 1/4" - 20 NC x 1/2"
10шт.
14
193-28
LOCK WASHER,Int Tooth, 1/4"
WASHER - lock, external tooth (1/4") Shakeproof
10шт.
15
A26991
SEAL
- front steering wheel
2шт.
L12274
WHEEL ASSEMBLY - front steering, Used on models with 8.25 x 15 - 12 ply tires, Includes: Ref. 16 - 18
2шт.
16
L30746
LOCKING RING
RING - lock
1шт.
17
L30745
RING
- side
1шт.
18
NSS
NOT SOLD SEPARAT
RIM - wheel, front steering
1шт.
19
L11745
WHEEL (STEERING)
WHEEL - front steering, Used on models with 11.00 x 16 - 14 ply tires
2шт.
20
A13098
RING
- lock, rim
2шт.
21
A13097
RING
- side, rim
2шт.
22
A13099
O-RING,22 1" ID x 0.25"
SEAL - "O" ring, rim
2шт.
23
A13642
WHEEL
- drive, rear, Used on models with 12.00 x 24 - 8 ply tires
2шт.
24
L15106
WHEEL BOLT
BOLT -, Serial Range: wheel-hub
16шт.
25
A20058
VALVE STEM
- Wheel
2шт.
26
L43000
WHEEL - drive, rear, Used on models with 16.9 x 24 - 8 ply tires
2шт.
27
L42896
WHEEL BOLT
BOLT - wheel to hub (5/8" - 18 NF x 2")
16шт.
28
F62206
NUT
- special
16шт.
