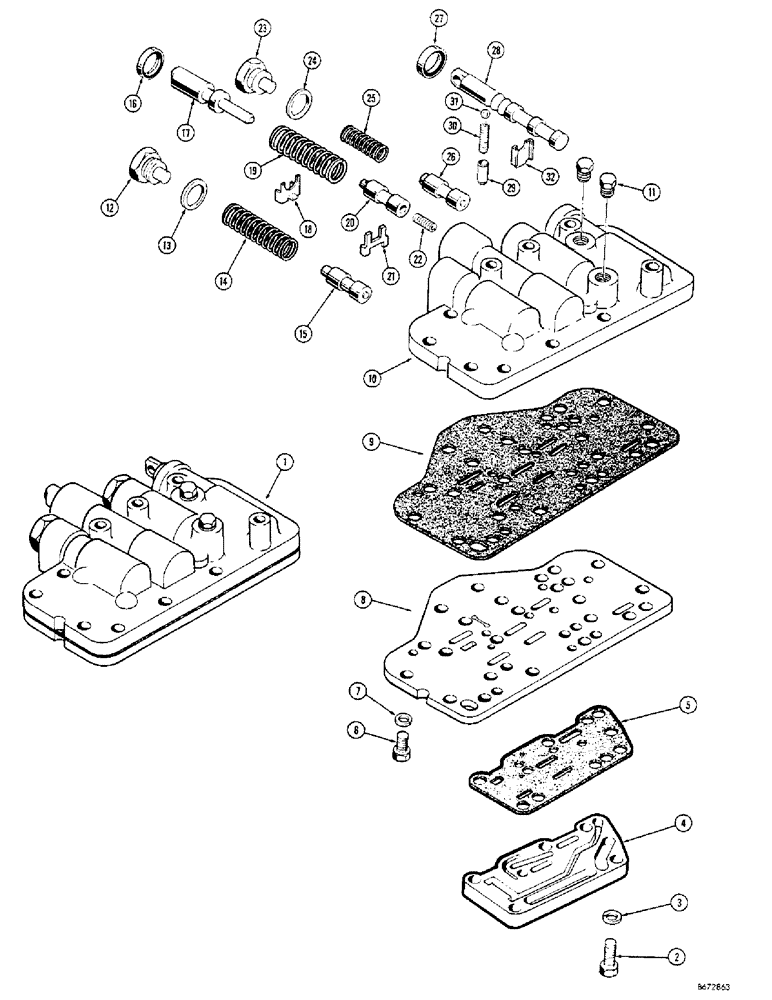

Запчасти Case 680CK (074) - TRANSMISSION AND RELATED PARTS, FORWARD AND REVERSE CONTROL VALVE (21) - TRANSMISSION

1

L30972

LOCK VALVE

VALVE ASSEMBLY - forward and reverse control , Includes: Ref. 2 - 32

1шт.

2

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

6шт.

3

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

6шт.

4

L30491

COVER - valve body

1шт.

5

A14871

GASKET

- cover

1шт.

6

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

8

L30973

PLATE - separator

1шт.

9

L30974

GASKET

-, Serial Range: plate-body

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

11

221-1661

PLUG

- pipe, hex. head (1/8" NPT)

2шт.

12

A14882

SCREW

- pressure regulator valve

1шт.

13

G10964

WASHER

GASKET - valve retainer screw

1шт.

14

A14885

VALVE SPRING

SPRING - regulator valve

1шт.

15

A14883

PLUNGER

VALVE - pressure regulator

1шт.

16

A14877

SEAL

- oil, clutch control

1шт.

17

A14873

PLUNGER

- clutch control

1шт.

18

A14876

STOP

- clutch control plunger

1шт.

19

A14874

VALVE SPRING

SPRING - plunger

1шт.

20

A14878

PLUNGER

VALVE - clutch control

1шт.

21

A14880

STOP

- clutch control valve

1шт.

22

A14879

VALVE SPRING

SPRING - clutch control valve

1шт.

23

A14882

SCREW

- clutch supply valve

1шт.

24

G10964

WASHER

GASKET - valve retainer screw

1шт.

25

A14881

VALVE SPRING

SPRING - clutch supply valve

1шт.

26

A14884

PLUNGER

VALVE - clutch supply

1шт.

27

A14863

OIL SEAL

SEAL - oil, direction selector spool

1шт.

28

L30255

SPOOL

- direction selector

1шт.

29

A14864

PLUNGER

- detent spring

1шт.

30

A14865

SPRING

- detent ball

1шт.

31

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

32

A14866

STOP

- selector spool

1шт.
