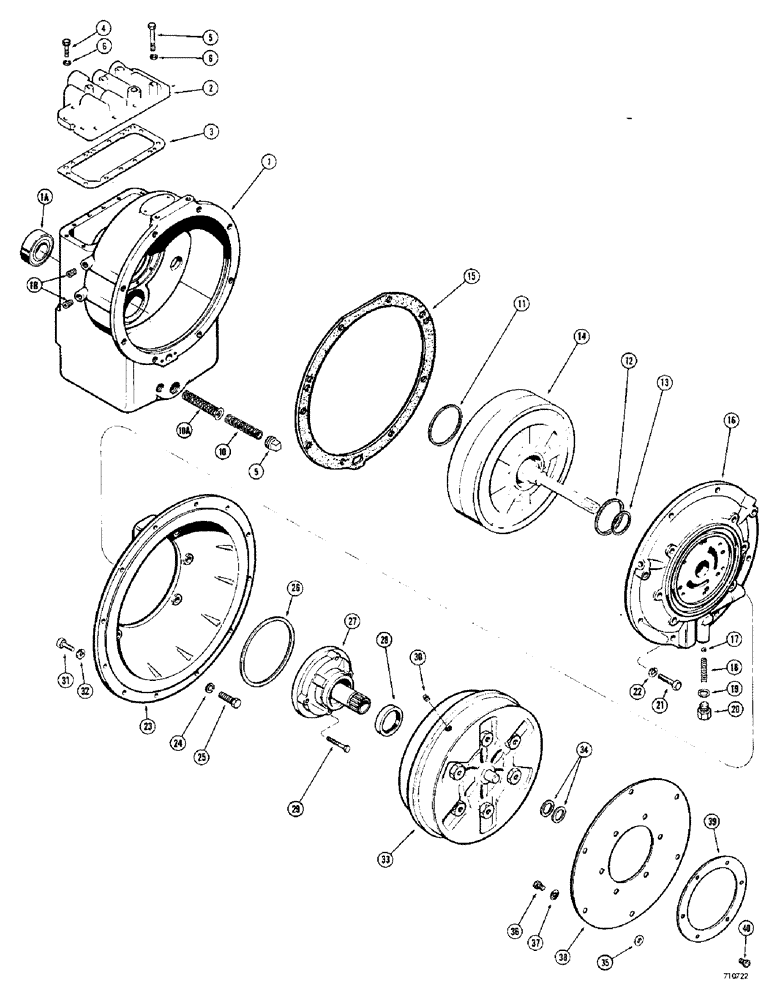

Запчасти Case 680CK (070) - TRANSMISSION AND RELATED PARTS, TORQUE CONVERTER HOUSING AND PUMP (21) - TRANSMISSION

L42968

TRANSMISSION ASSY. - loader, Includes: Ref. 1 - 40

1шт.

L32744

CASE ASSY.

HOUSING ASSY. - transmission, Includes: Ref. 1 - 1B

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

1a

G13075

BEARING, BALL

BEARING - housing

1шт.

1b

221-1662

PLUG

- pipe, hex. head (1/4" NPT)

4шт.

2

L30972

LOCK VALVE

VALVE ASSEMBLY - forward and reverse control (Parts list Figure 74)

1шт.

3

L32119

GASKET

- valve body

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

8шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

12шт.

9

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. hd. (1/2" NPT)

1шт.

10

L32746

SPRING

- screen

1шт.

10a

L32745

FILTER SCREEN

SCREEN - oil

1шт.

11

L30237

SEAL

RING - sealing

2шт.

12

A14833

SEALING RING

RING - seal, cylinder to torque converter housing

1шт.

13

L30486

SEAL

RING - sealing

1шт.

14

L30691

CLUTCH

ASSEMBLY - forward and reverse (Parts list Figure 72)

1шт.

15

A14886

GASKET

- transmission housing

1шт.

16

L30482

ADAPTER

- trans. housing to torque converter housing

1шт.

17

211-11

BALL,3/8" Dia

- steel (.) 3/8" Dia

1шт.

18

L30251

VALVE SPRING

SPRING - pop valve

1шт.

19

A14810

WASHER

- special

1шт.

20

A14811

SEAT, VALVE

SEAT - spring, pop valve

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

23

L30485

O-RING

HOUSING - torque converter

1шт.

24

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

6шт.

25

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

6шт.

26

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- pump

1шт.

27

L30488

PUMP

ASSEMBLY - torque converter charging, Includes: Ref. 28

1шт.

27

137093A1R

REMAN-HYD PUMP

680CK, (S/N 9103967 TO 9105879), REMAN for Part No. L30488, N.A. Only

1шт.

27

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

28

L30489

OIL SEAL

- pump

1шт.

29

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

30

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

11шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

12шт.

33

L10815

CONVERTER

- torque

1шт.

34

L11172

SHIM,.0478" Thk

Pump engagement .0478" Thk

1шт.

35

195-2024

WASHER,3/8" x 7/8" x .065"

- flat, steel (3/8" I.D.), Includes: Ref. 36 - 40

1шт.

L11783

KIT

- torque converter drive

1шт.

36

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

- place (5/16" - 18 NC x 3/4")

6шт.

37

A14512

WASHER

- torque converter drive plate

6шт.

38

A14509

PLATE

- torque converter drive

1шт.

39

A14510

PLATE

- reinforcement

1шт.

40

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- place (3/8" - 24 NF x 1/2")

6шт.
