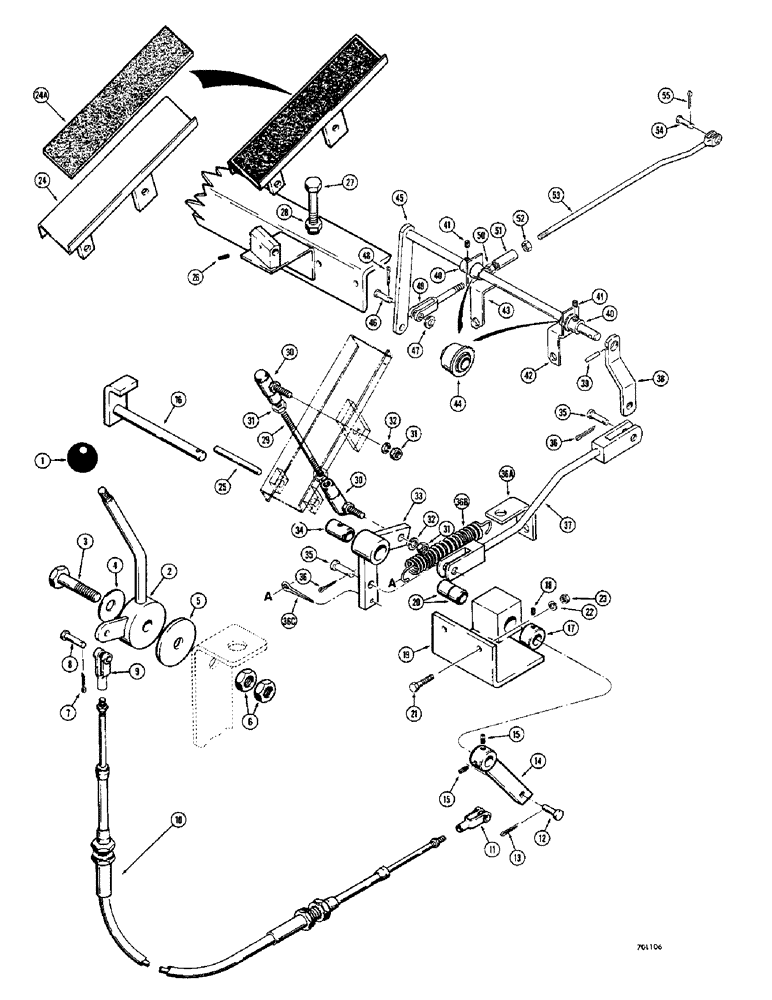

Запчасти Case 680CK (066) - THROTTLE CONTROL LINKAGE (10) - ENGINE

1

31375

WASHER

- throttle lever

1шт.

2

L41891

LEVER - throttle control

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

4

R14771

WASHER

- special

1шт.

5

R15071

DISC

- friction

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

2шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

8

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4" dia.)

1шт.

9

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable (1/4")

1шт.

10

L42534

CABLE PULLING GRIP

CABLE - throttle control, backhoe

1шт.

11

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - cable to throttle arm

1шт.

12

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

13

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

14

L26355

LEVER - linkage, hand throttle

1шт.

15

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - set, square head (1/4" - 20 NC x 1/2") Cup point

2шт.

16

L26335

SHAFT - pivot, throttle

1шт.

17

L15114

COLLAR - throttle shaft

1шт.

18

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex. socket head (1/4" - 20 NC x 1/4")

1шт.

L41342

SUPPORT ASSEMBLY - throttle linkage, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SUPPORT - throttle linkage

1шт.

20

L10818

BUSHING

- support

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

24

L26313

PEDAL ASSY.

PEDAL - foot accelerator (When stock is exhausted, order L47228 for service)

1шт.

24

L47228

PEDAL

- foot accelerator

1шт.

24a

L12421

PAD

- foot accelerator pedal

1шт.

25

L12427

PIN

- pivot, accelerator

1шт.

26

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

27

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

STOP BOLT - accelerator pedal (1/2" - 13 NC x 4")

1шт.

28

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

1шт.

29

L46363

STUD - accelerator link (When stock is exhausted, order L47222 for service)

1шт.

29

L47222

STUD - accelerator link

1шт.

30

D38296

JOINT

BALL JOINT - accelerator link

2шт.

31

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

4шт.

32

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

L41344

ARM ASSEMBLY - accelerator pedal to throttle rod, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

ARM - pedal to throttle rod

1шт.

34

A29946

BUSHING

- arm

1шт.

35

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

36

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - cotter (3/32" dia. x 1/2")

2шт.

36a

L18959

BRACKET - spring, accelerator return

1шт.

36b

L45825

SPRING - accelerator return

1шт.

36c

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

37

L19805

ROD - throttle, primary

1шт.

38

L19810

LEVER - throttle control

1шт.

39

135-334

PULLEY

PIN - groove, lever to shaft (5/32" dia. x 1")

1шт.

40

L15114

COLLAR - cross shaft

2шт.

41

181-216

SCREW - set, square head (1/4" - 20 NC x 1/2")

2шт.

42

L19802

BRACKET ASSY. - shaft mounting, R.H., Includes: Ref. 44

1шт.

43

L19804

BRACKET ASSY. - shaft mounting, L.H., Includes: Ref. 44

1шт.

44

L23765

BEARING

- alignment

1шт.

45

L19797

SHAFT - throttle cross

1шт.

46

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

47

95-8

WASHER,1/2"

- std. wrought 1/2"

1шт.

48

132-27

COTTER PIN,3/32" x 7/8"

PIN - cotter (3/32" dia. x 1")

1шт.

49

L19541

ROD

- throttle, middle (Before tractor SN. 9105443) When stock is exhausted, order L46253 rod and F22267 turnbuckle for service

1шт.

49

L46253

ROD

- throttle, middle (Tractor SN. 9105443 and after)

1шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Used with L45479 turnbuckle

1шт.

50

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC) Used with F22267 turnbuckle

1шт.

51

L45479

TURNBUCKLE

- special (Before tractor SN. 9105443) When stock is exhausted, order L46253 rod and F22267 turnbuckle for service

1шт.

51

F22267

TURNBUCKLE

- special (Tractor SN. 9105443 and after)

1шт.

52

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Used with L45479 turnbuckle

1шт.

52

129-343

NUT,Jam, 3/8"-16, G5, LH

- hex. L.H. jam (3/8" - 16 NC) Used with F22267 turnbuckle

1шт.

53

L19799

ROD - throttle, at injection pump

1шт.

54

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

1шт.

55

132-4

PIN - cotter, 1/16" dia. x 7/16"

1шт.
