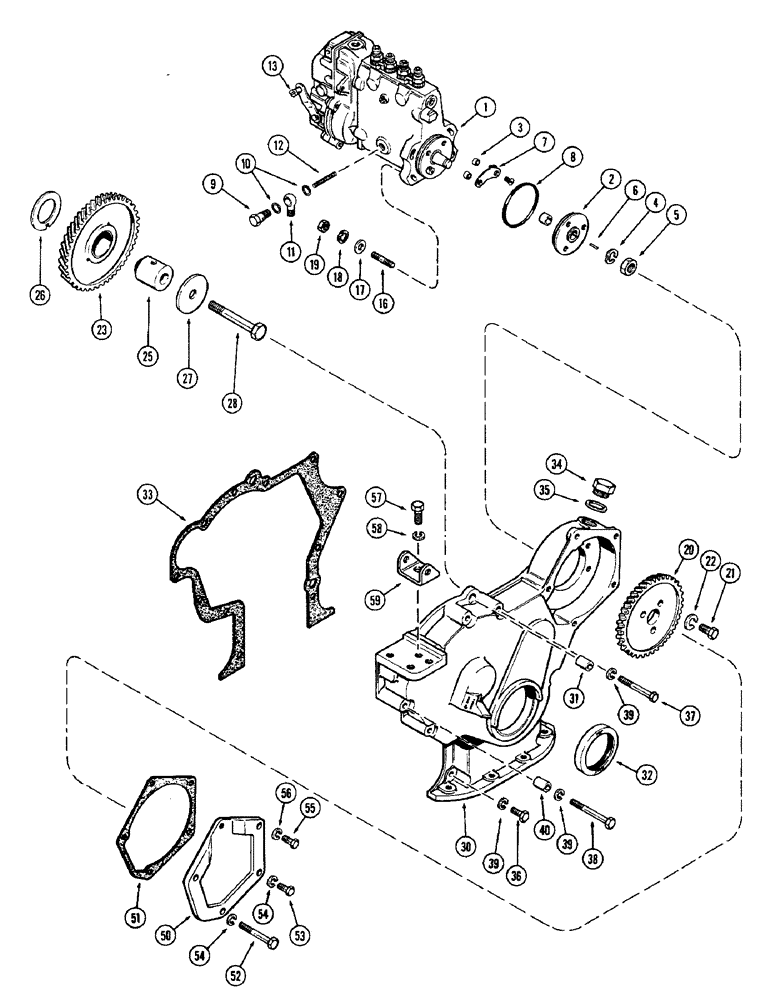

Запчасти Case 680CK (040) - FUEL INJECTION PUMP AND DRIVE, (267B) DIESEL ENGINE (10) - ENGINE

1

A60447

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2000 R.P.M.) (Pump No. PES4A80C420LS2263) (Governor No. EP/RSV300-1000A2B539DR), Includes: Ref. 2 - 13

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A42829

SCREW,M4 x 3/4" x 0.75mm

- lock, pump stop control cable

1шт.

16

A58689

STUD

- pump mounting

4шт.

17

A57470

WASHER

- (13/32 x 11/16" x 16 ga.)

4шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

4шт.

20

A58693

GEAR

- injection pump, w/o hub

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

22

92-6

LOCK WASHER,3/8"

3шт.

23

A58686

GEAR

ASSY. - idler

1шт.

25

A58690

SHAFT

- idler gear

1шт.

26

A58691

WASHER

- thrust, idler shaft

1шт.

27

A58692

PLATE

- thrust, idler shaft

1шт.

28

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

30

A58609

COVER

ASSY. - timing gear, Includes: Ref. 31

1шт.

31

A58611

PIN

- dowel, cover

2шт.

32

A62049

OIL SEAL

- crankshaft front

1шт.

33

A58612

GASKET

- cover, timing gear

1шт.

34

A21140

PLUG

- timing window

1шт.

35

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex. hd. (3/8 x 2-1/2" N.C.)

2шт.

38

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex. hd. (3/8 x 3-1/2" N.C.)

1шт.

39

92-6

LOCK WASHER,3/8"

7шт.

40

A19774

BUSHING

SPACER - alternator pry point

1шт.

50

A61053

COVER

- fuel pump

1шт.

51

A58615

GASKET

- fuel pump cover

1шт.

52

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex. hd. (3/8 x 3-1/2" N.C.)

2шт.

53

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

54

92-6

LOCK WASHER,3/8"

4шт.

55

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

56

92-5

LOCK WASHER,5/16"

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

58

92-6

LOCK WASHER,3/8"

2шт.

59

A38492

BRACKET

- alternator mounting

1шт.
