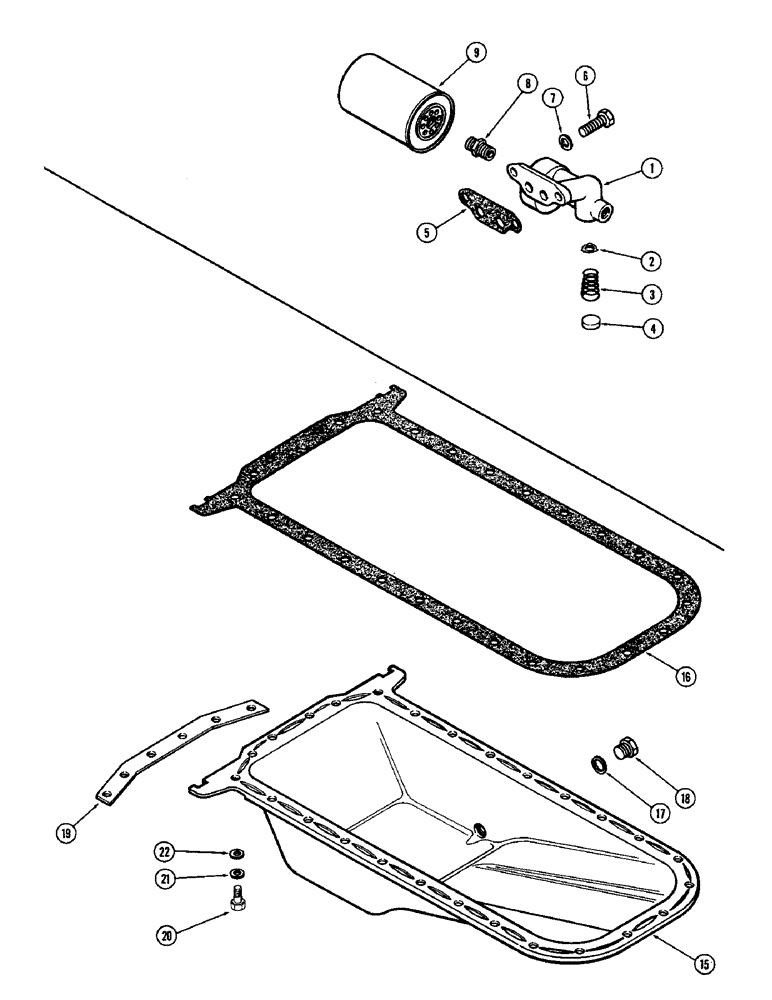

Запчасти Case 680CK (030) - OIL FILTER, (267B) DIESEL ENGINE, OIL PAN (10) - ENGINE

1

A58752

BASE

ASSY. - oil filter, Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief, filter

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex. hd. (1/2 x 1-3/4" N.C.)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A58757

ADAPTER

-, Serial Range: element-base

1шт.

9

A58758

FILTER, ELEMENT

ELEMENT - filter, oil

1шт.

15

A59140

PAN

- oil

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

17

A58933

OIL PAN GASKET SET

- oil pan drain plug

1шт.

18

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

19

A58932

STRAP

- oil pan, rear

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

24шт.

21

92-6

LOCK WASHER,3/8"

24шт.

22

195-25

WASHER,3/8"

24шт.
