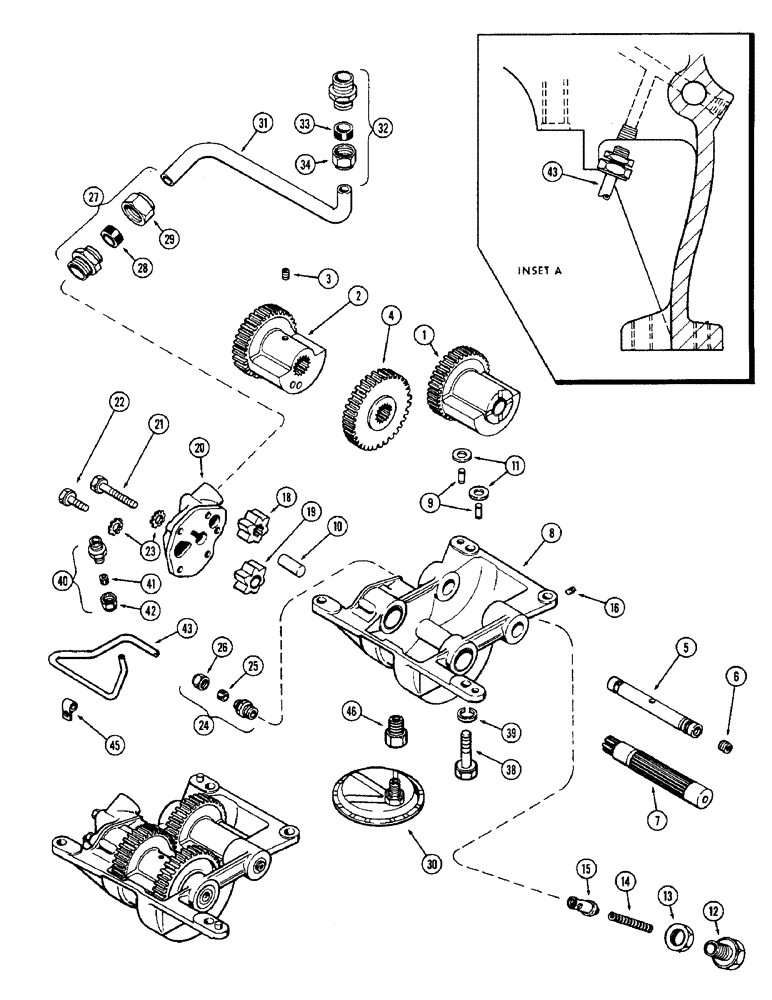

Запчасти Case 680CK (028) - 3 GEAR BALANCER AND OIL PUMP, (267B) DIESEL ENGINE (10) - ENGINE

A62235

BALANCER

& PUMP ASSY. - engine, Includes: Ref. 1 - 29

1шт.

1

A62236

WEIGHT

COUNTERWEIGHT ASSY. - driven

1шт.

2

A62238

WEIGHT

COUNTERWEIGHT - drive (Splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set (3/8 x 3/8" N.C. cup pt. socket head)

1шт.

4

A57958

GEAR

GEAAR - drive, counterweight

1шт.

5

A22563

SHAFT

- stationary

1шт.

6

221-841

PLUG

- pipe (1/4" hex. socket head)

1шт.

7

A57957

SHAFT

ASSY. - drive, counterweight

1шт.

8

A22541

HOUSING ASSY. - balancer, Includes: Ref. 9 and 10

1шт.

9

A8134

PIN

- dowel

2шт.

10

A22543

SHAFT

- stub, oil pump gear

1шт.

11

G49401

SHIM,.005" Thk

Housing to cylinder block .005" Thk

1шт.

11

G49402

SHIM,.010" Thk

Housing to cylinder block .010" Thk

1шт.

12

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

13

A27858

NUT

- adjusting screw

1шт.

14

A61958

VALVE SPRING

SPRING - relief, oil pump

1шт.

15

A22566

PLUNGER

- relief, oil pump

1шт.

16

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set (5/16 x 3/8" cone pt., hex. socket head)

1шт.

18

A22564

GEAR

- drive, oil pump (Splined)

1шт.

19

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

20

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - (1/4" tube x 1/4" P.T.), Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T., Includes: Ref. 28 and 29

1шт.

28

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

30

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

31

A22595

TUBE

- oil, Serial Range: pump-filter

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T., Includes: Ref. 33 and 34

1шт.

33

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

34

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

38

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - (1/4" tube x 1/8" P.T.), Includes: Ref. 41 and 42

1шт.

41

222-103

SLEEVE,5/16" Tube

- for 1/4" tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

43

A58857

TUBE

- oil gallery to balancer shaft (See Inset A)

1шт.

45

A20541

CLIP

- oil tube

1шт.

46

A21235

FITTING

ADAPTER - oil inlet screen

1шт.
