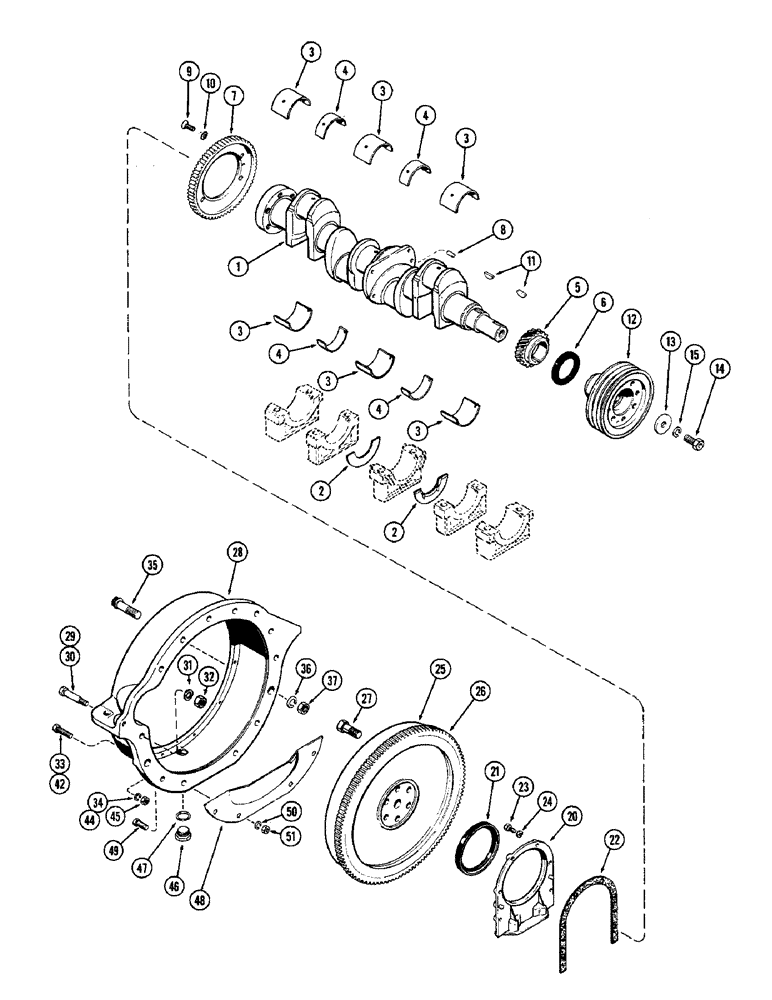

Запчасти Case 680CK (022) - CRANKSHAFT AND FLYWHEEL, (267B) DIESEL ENGINE (10) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A58786

WASHER

- thrust, crankshaft (Std.)

2шт.

2

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust (.006" oversize)

2шт.

3

A42490

BEARING LINER

LINER - main bearing, wide (Standard)

3шт.

3

A42486

LINING

LINER - main bearing, wide (-.002")

3шт.

3

A42487

LINER

- main bearing, wide (-.010")

3шт.

3

A42488

LINER

- main bearing, wide (-.020")

3шт.

3

A42489

BEARING

LINER - main bearing, wide (-.030")

3шт.

4

A42492

KIT

LINER - main bearing, narrow (Standard)

2шт.

4

A42482

LINING

LINER - main bearing, narrow (-.002")

2шт.

4

A42483

LINING

LINER - main bearing, narrow (-.010")

2шт.

4

A42484

KIT

LINER - main bearing, narrow (-.020")

2шт.

4

A42485

LINING

LINER - main bearing, narrow (-.030")

2шт.

5

A58573

GEAR

- crankshaft

1шт.

6

A62049

OIL SEAL

- crankshaft, front (Replaces A57342)

1шт.

7

A62450

GEAR

- balancer drive (86 teeth) (Used w/2 gear balancer) (See Page 24) (Ref. #8 not included), Includes: Ref. 8

1шт.

7

A22576

GEAR

- balancer drive (106 teeth) (Used w/3 gear balancer), Includes: Ref. 8

1шт.

8

A8134

PIN

- dowel, balancer drive gear

1шт.

9

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer drive gear

4шт.

10

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

12

A60012

PULLEY

- fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- oil, crankshaft rear (Replaces A23085)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A60500

FLYWHEEL ASSY., Includes: Ref. 26

1шт.

26

A58778

GEAR

- ring

1шт.

27

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- hex. hd. (5/8 x 1-1/2" N.F.)

6шт.

28

A34710

HOUSING - flywheel

1шт.

29

A61040

STEP BOLT

BOLT - dowel, long (Hsg. to block) (1/2 x 3") (Gr. 5S)

1шт.

30

A61041

STEP BOLT

BOLT - dowel, short (Hsg. to block) (1/2 x 2-7/16") (Gr. 5S)

1шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

2шт.

33

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Housing to block Hex, 1/2"-13 x 1 5/8", G5

3шт.

34

92-8

LOCK WASHER,1/2"

3шт.

35

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- hsg. to block (3/4 x 3" 12 pt. N.C.) (Grade 8)

2шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

37

25-1012

NUT,3/4"-10, G5

2шт.

42

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex. hd., hsg. to block (1/2 x 2-1/4" N.C.)

3шт.

44

92-8

LOCK WASHER,1/2"

3шт.

45

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

3шт.

46

A20917

PLUG

- drain (1-1/8" N.F.)

1шт.

47

A20916

MANIFOLD GASKET

WASHER - copper

1шт.

48

A58931

GUARD

SHIELD - flywheel housing

1шт.

49

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

50

92-8

LOCK WASHER,1/2"

4шт.

51

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

4шт.
