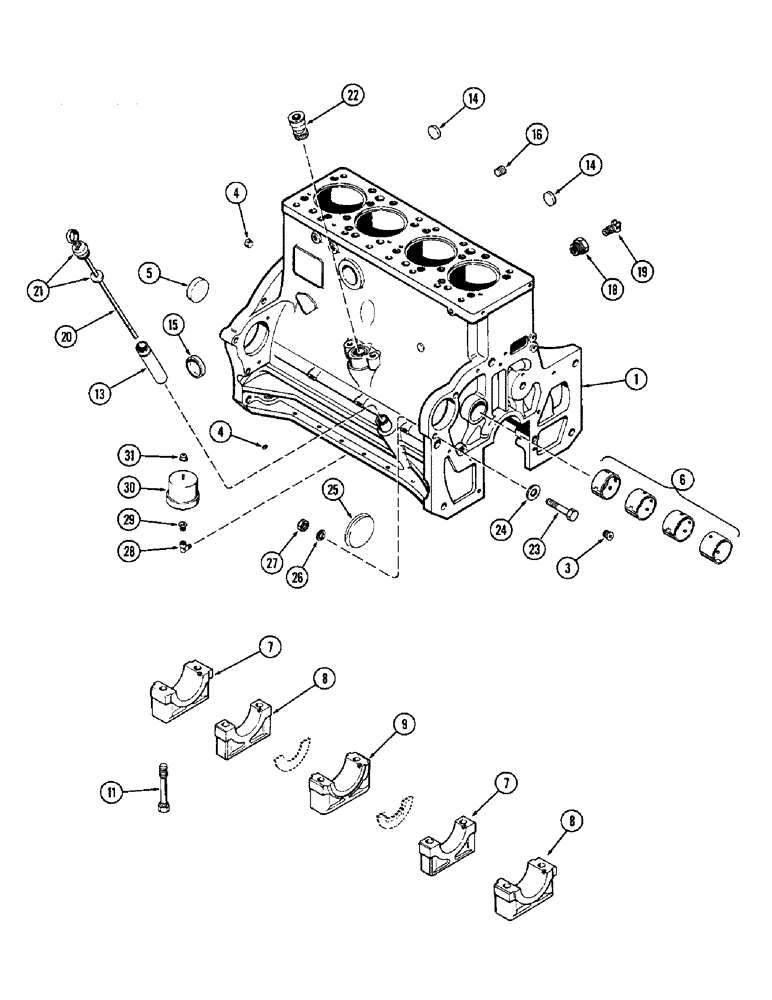

Запчасти Case 680CK (020) - CYLINDER BLOCK ASSEMBLY, 267B DIESEL ENGINE, W/3 GEAR BALANCER (10) - ENGINE

A41960

BLOCK ASSY. - short (Includes stripped block, pistons, conn., rods & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #A58501), Includes: Ref. 1 - 15

1шт.

1

A41961

BLOCK

ASSY. - stripped (Casting #A58501), Includes: Ref. 3 - 15

1шт.

3

221-1843

PLUG

- (3/8" P.T., hex. socket head)

3шт.

4

221-41

PLUG

- (1/8" P.T., slotted headless)

3шт.

5

A24361

PLUG

- camshaft hole (3-3/8" cup type)

1шт.

6

A23577

KIT

BUSHING KIT - camshaft

1шт.

7

A58783

BEARING CAP

CAP - main bearing, wide

2шт.

8

A58784

BEARING CAP

CAP - main bearing, narrow

2шт.

9

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap (5/8 x 4-1/2" N.C. special)

10шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

15

A58569

PLUG,Cup, 2", Stainless

- (2" cup type)

1шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, turbo drain hole (3/4" hex. socket head)

1шт.

18

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer (3/4 x 1/4")

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A34541

DIPSTICK

- oil level, Includes: Ref. 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

22

A34266

DRIVE

ASSY. - tachometer

1шт.

23

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex. hd. (3/8" x 3-3/4" N.C.)

2шт.

24

195-25

WASHER,3/8"

2шт.

25

A29268

PLUG

COVER - pump mounting

1шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

2шт.

28

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

29

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducing (3/8 x 1/8" hex.)

1шт.

30

A35031

SENDER UNIT

SENDING UNIT - engine oil pressure

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10 N.F. hex.)

1шт.
