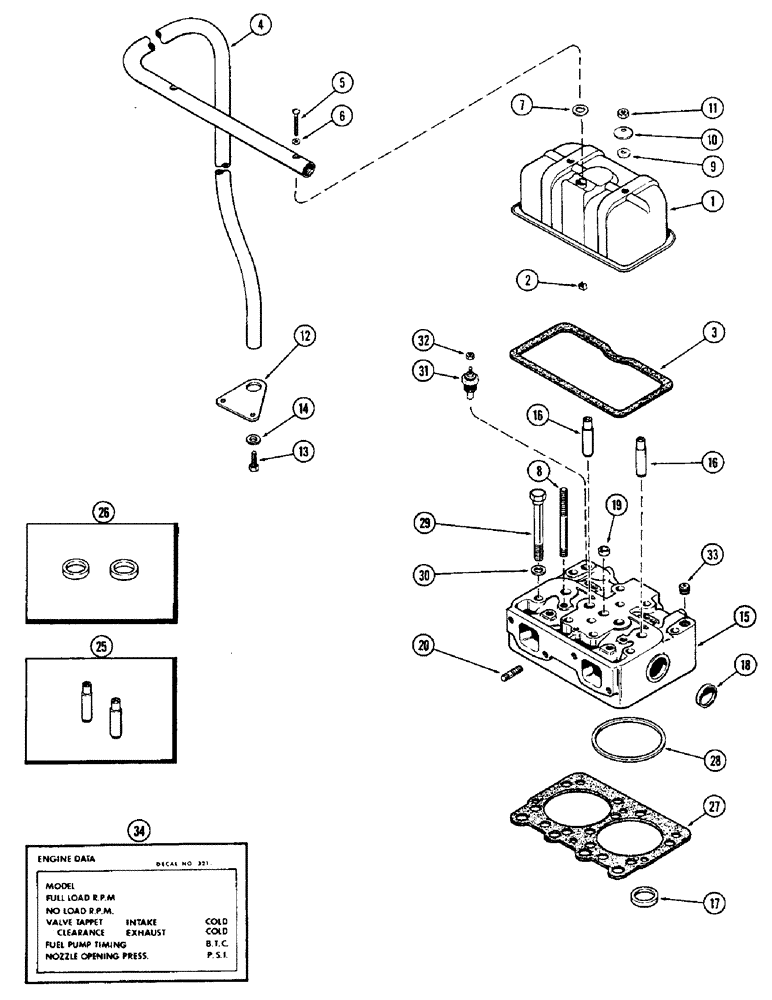

Запчасти Case 680CK (014) - CYLINDER HEAD AND COVER, (267B) DIESEL ENGINE (10) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C., Tinnerman)

1шт.

3

A58928

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A61103

TUBE - breather

1шт.

5

75-440

SCREW

- machine (1/4 x 2-1/2" round head)

2шт.

6

A34133

GASKET

- breather tube screw

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

2шт.

8

A60885

STUD

- rocker arm bracket & cyl. head cover

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

- cover stud (Beveled)

4шт.

11

25-107

NUT,7/16"-14, G5

- hex. (7/16" N.C.)

4шт.

12

A34781

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C. Sems)

2шт.

14

195-25

WASHER,3/8"

(Used as spacers) 3/8"

1шт.

15

A58885

CYLINDER

HEAD ASSY. - cylinder (Casting no. A58522), Includes: Ref. 16 - 19

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 26)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- (1-5/8" cup type)

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

- (3/4" cup type)

1шт.

20

A59077

STUD

- manifold mounting (3/8" N.C. x 1-13/16")

16шт.

25

A41781

GUIDE

KIT - intake & exhaust (Set of 2)

4шт.

26

A41985

INSERT

KIT - exhaust valve (Set of 2)

2шт.

27

A62215

GASKET

- cylinder head

2шт.

28

A34686

RING

- fire, standard

2шт.

29

A58630

BOLT

BOLT - hex. hd. (5/8 x 5-5/8" N.C.)

20шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

31

F13156

SENDER UNIT

UNIT - temperature sending (In rear head)

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. hex.) (Zinc)

1шт.

33

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T. hex. socket head)

4шт.

34

321-1378

DECAL - engine data

1шт.
