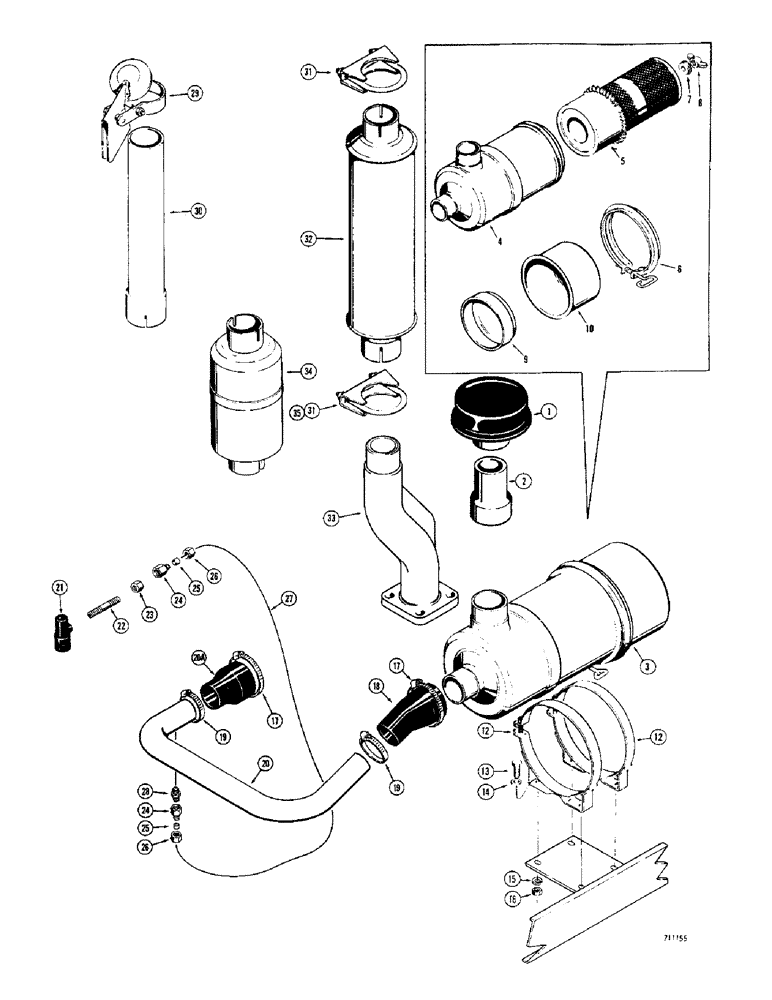

Запчасти Case 680CK (012) - AIR CLEANER AND MUFFLER (10) - ENGINE

1

A61277

CAP

- air cleaner

1шт.

2

L17169

CABLE EXTENSION

STACK - extension, air cleaner

1шт.

3

D36261

CLEANER

AIR CLEANER - dry type, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

5

D37975

FILTER

ELEMENT - air cleaner

1шт.

6

R15731

CLAMP

- air cleaner

1шт.

7

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- wing nut

1шт.

8

D37977

CAP

NUT - wing

1шт.

9

D37979

BAFFLE

- air cleaner

1шт.

10

D37980

CUP

- air cleaner

1шт.

11

D37974

DECAL

- service instructions (Not illustrated)

1шт.

12

A16485

CLAMP

- air cleaner mounting

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

4шт.

15

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex.(5/16" - 18 NC)

4шт.

17

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - air cleaner and manifold to adapter

2шт.

18

L18991

ADAPTER - air cleaner, upper

1шт.

19

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- adapter to intake tube #36, 1.81/2.75 Type F Worm

2шт.

20

L19026

TUBE - air, Serial Range: cleaner-manifold

1шт.

20a

L18992

TUBE NUT

ADAPTER - air cleaner, lower

1шт.

21

A17652

ELECTRICAL GAUGE

GAUGE - air cleaner restriction

1шт.

22

L13267

NIPPLE -, Serial Range: gauge-coupling

1шт.

23

L13268

LOCK NUT

- jam, nipple retaining

1шт.

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - female, Includes: Ref. 24 - 26

2шт.

24

NSS

NOT SOLD SEPARAT

COUPLING - female

1шт.

25

222-650

SLEEVE,1/8" Tube, Comp

1шт.

26

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

27

L11335

TUBE,60" L

- gauge to air intake tube

1шт.

28

D36264

FITTING

CONNECTOR - special, filter type

1шт.

29

A7479

CAP

- exhaust pipe (Standard)

1шт.

29

D28028

CAP

- exhaust pipe (Spark arresting muffler)

1шт.

30

L13824

EXTENSION

PIPE - exhaust, upper (Used on models without spark arresting muffler)

1шт.

31

A13240

CLAMP,2-5/8" ID

- tube

1-2шт.

32

A15163

MUFFLER

- exhaust (Standard)

1шт.

33

L19092

PIPE, EXHAUST SYSTEM

PIPE - exhaust, lower

1шт.

L15256

MUFFLER ASSEMBLY - spark arresting, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

MUFFLER - spark arresting

1шт.

35

A13240

CLAMP,2-5/8" ID

- tube

1шт.
