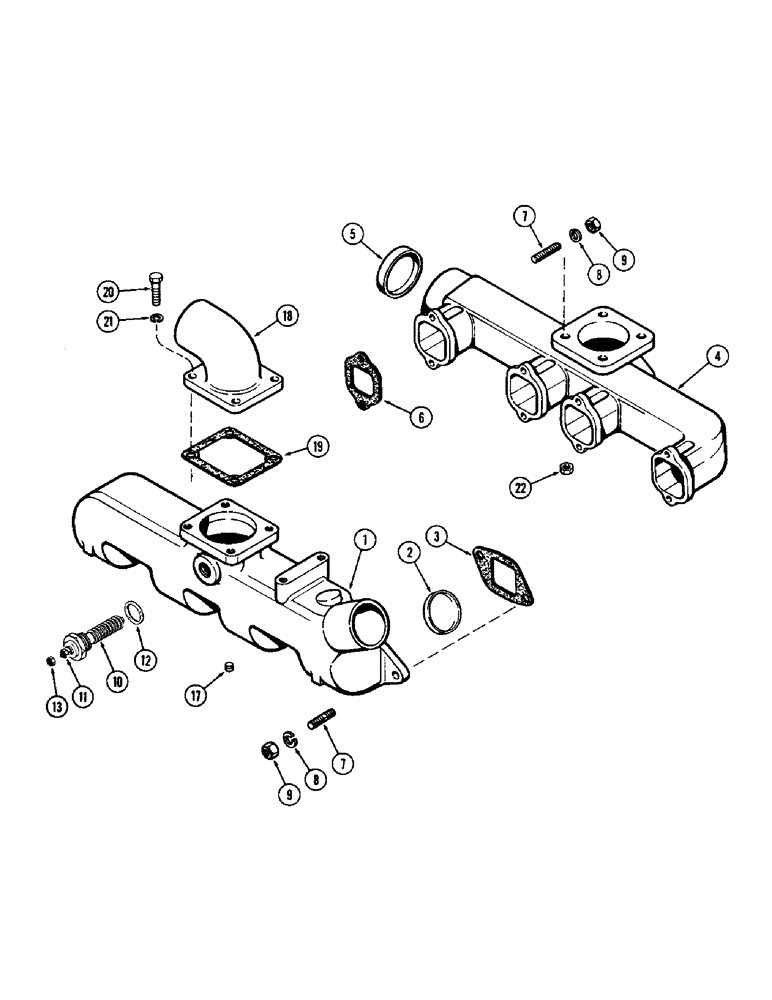

Запчасти Case 680CK (010) - MANIFOLD AND MUFFLER, (267B) DIESEL ENGINE (10) - ENGINE

1

A59225

MANIFOLD

- intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- intake manifold

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

4шт.

4

A62290

MANIFOLD

ASSY. - exhaust, Includes: Ref. 5

1шт.

5

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type)

1шт.

6

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

7

A59077

STUD

- manifolds (3/8" N.C. x 1-3/4")

16шт.

8

92-6

LOCK WASHER,3/8"

16шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.) (Intake manifold)

8шт.

9

131-903

NUT,3/8"-16

NUT - Seez-Pruf (3/8" N.C.) (Exhaust manifold)

8шт.

10

A37775

HEATER

ASSY. - intake manifold (12 V), Includes: Ref. 11

1шт.

11

129-503

NUT,1/4"-20, Brass

1шт.

12

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

13

129-503

NUT,1/4"-20, Brass

Cable to heater 1/4"-20, Brass

1шт.

17

221-1840

PLUG

- pipe (1/8" hex. socket head)

1шт.

18

A60458

ELBOW

- intake manifold

1шт.

19

A58910

GASKET

- intake manifold elbow

1шт.

20

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

4шт.
