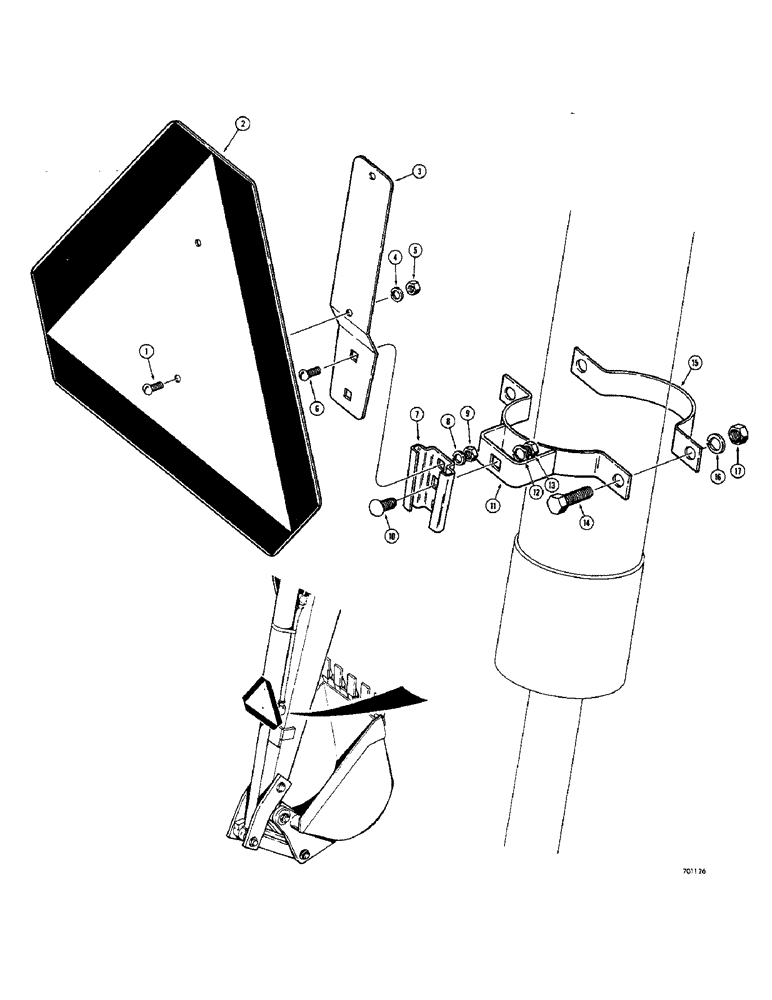

Запчасти Case 680CK (260) - SLOW MOVING VEHICLE EMBLEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- mach., pan head (#10 - 24 NC x 1/2") Zinc plated

2шт.

2

A59449

NO LONGER SERVICED

EMBLEM - slow moving vehicle

1шт.

3

L46914

BRACKET

- emblem mounting

1шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

2шт.

6

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- mach., pan head (5/16" - 18 NC x 5/8") Zinc plated

2шт.

7

L46915

SOCKET

- slow moving vehicle emblem

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

111-418

BOLT - round head square neck (7/16" - 14 NC x 3/4") Zinc plated Short NK, 7/16"-14 x 3/4", G2

1шт.

11

L47091

CLAMP ASSY. - socket mounting, emblem

1шт.

12

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

13

129-104

NUT,7/16"-14, G5

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

L47088

CLAMP - emblem to cylinder mounting

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
