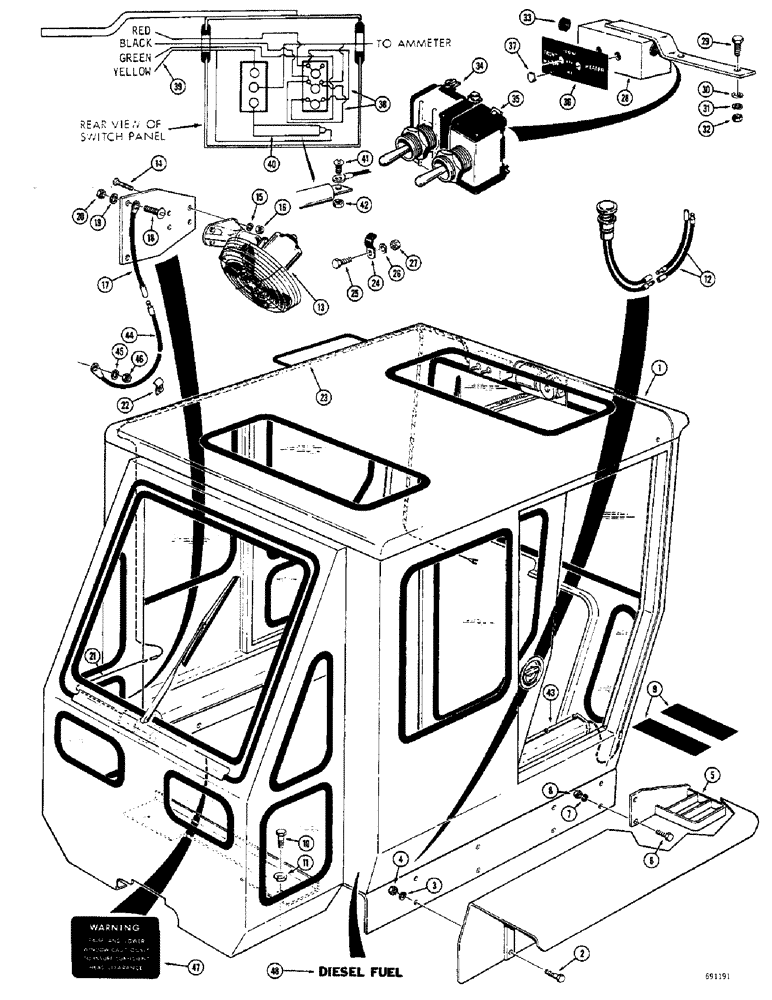

Запчасти Case 680CK (126) - CAB AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L40737

CAB - operator control (Plain glass)

1шт.

1

L17638

CAB - operator control (Tinted glass)

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

5

L15161

STEP - operators cab, R.H.

1шт.

5

L15162

STEP - operators cab, L.H.

1шт.

6

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

4шт.

7

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

8

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

4шт.

9

A55582

PAD

- non slip

4шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

11

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

12

L17980

WIRE - rear engine indicator light

2шт.

13

L13468

FAN

- defroster, rear window (Parts list Figure 130)

1шт.

14

165-31

SCREW,#10 - 32 x 1/2"

RHMS - #10 32 NF x 1/2"

4шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

16

129-37

NUT,#10-32

4шт.

17

L17982

WIRE - rear wiper ground (Short)

1шт.

18

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS - #10 - 24 NC x 1/2"

1шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

20

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

1шт.

21

L41288

WIRE - wiper motor

1шт.

22

L19840

CLIP

- roller nut, rear wiper wires

1шт.

23

L17983

HARNESS

- wire, defroster, Serial Range: switches-wiper

1шт.

24

L19840

CLIP

- wire, Includes: Ref. 25

3шт.

25

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

HHCS - 1/4" - 20 NC x 1/2"

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

27

25-104

NUT,1/4"-20, G5

3шт.

28

L15167

PANEL

- front, heater and wiper

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

31

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

33

F54096

GROMMET

- rubber

2шт.

34

L15168

SWITCH - front wiper

1шт.

35

L15170

SWITCH

- heater

1шт.

36

321-1119

DECAL - heater wiper panel

1шт.

37

205-21

CAPSCREW

PLUG - button (Used on models without heater)

1шт.

38

L15169

WIRE - switch crossover

2шт.

39

L17984

WIRE -, Serial Range: switchbox-heater

1шт.

40

A55708

RESISTOR - heater switch

1шт.

41

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4"

1шт.

42

129-6

NUT,#8-32

1шт.

43

A12897

HEATER - 12 volt (See Figure 128 for related parts)

1шт.

44

L17981

WIRE - rear wiper ground (Long)

1шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

46

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

1шт.

47

321-1291

DECAL - warning, rear window clearance

1шт.

48

321-230

DECAL

- diesel fuel

1шт.
