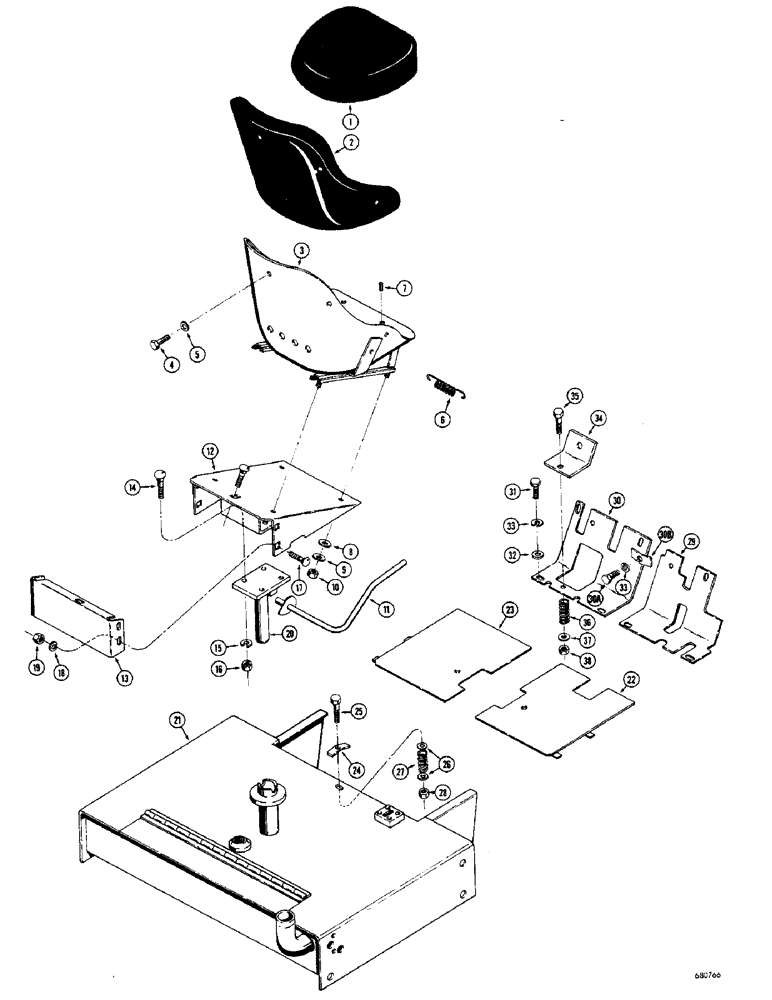

Запчасти Case 680CK (124) - SEAT PLATFORM, FLOOR PLATES AND SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L11074

SEAT

ASSEMBLY - operator's, Includes: Ref. 1 - 10

1шт.

1

L30536

BACKREST

- seat

1шт.

2

L30535

SEAT CUSHION

CUSHION - seat

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

5

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

5шт.

6

L30533

VALVE SPRING

SPRING - adjusting

2шт.

7

L30534

X

PIN - cushion alignment

2шт.

8

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

9

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

11

L16245

LEVER

- seat adjustment

1шт.

12

L16669

SUPPORT - seat

1шт.

13

L11422

PANEL - seat

1шт.

14

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - carriage (3/8" - 16 NC x 1-1/4")

4шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

18

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

5шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

5шт.

20

L16251

POST - seat, inside

1шт.

21

L42547

TANK ASSEMBLY - fuel (See Figure 34 for related parts)

1шт.

22

L26282

PLATE - floor, R.H. (Rear) When stock is exhausted, order L46807 for service

1шт.

22

L46807

PLATE - floor, R.H. (Rear)

1шт.

23

L26283

PLATE - floor, L.H. (Rear)

1шт.

24

L11056

LATCH - floor plate, battery access

1шт.

25

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

26

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

27

A33749

SPRING

- compression, latch

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

1шт.

29

L41336

PLATE - floor, board, R.H. (Front)

1шт.

30

L25723

PLATE - floor, board, L.H. (Front)

1шт.

30a

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

30b

L11056

LATCH - floor plate

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

32

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

7шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

6шт.

34

L26303

COVER

- access floor board

1шт.

35

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

36

A33749

SPRING

- compression, latch

1шт.

37

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.
