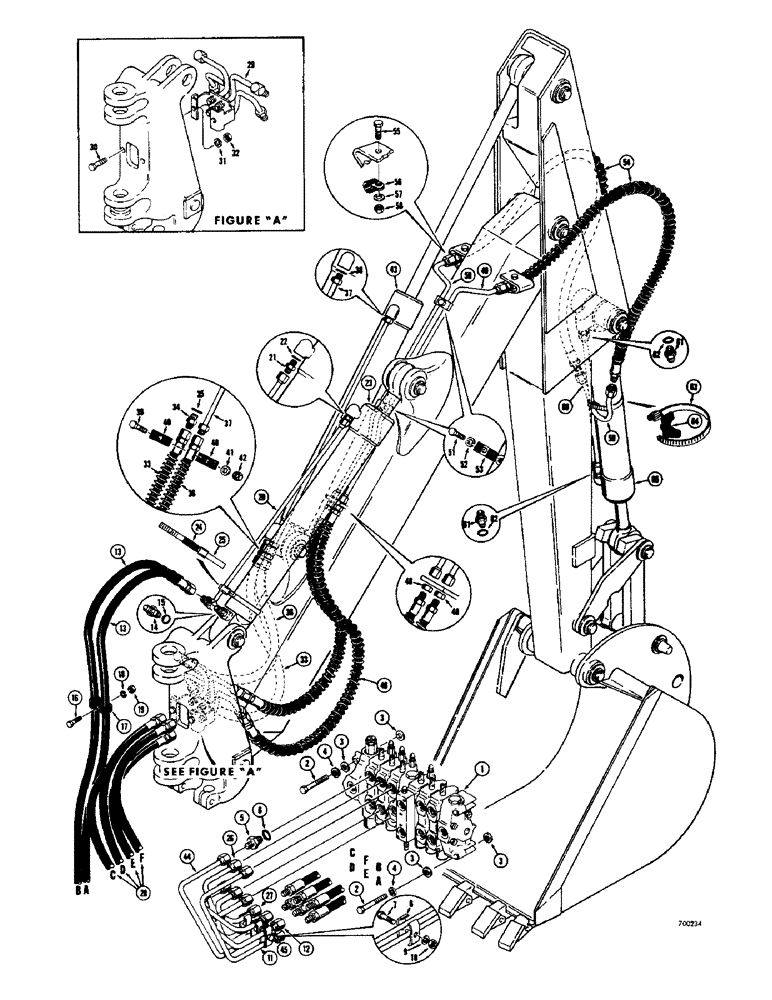

Запчасти Case 680CK (184) - BACKHOE HYDRAULICS, BOOM, CROWD AND BUCKET CYLINDER (84) - BOOMS, DIPPERS & BUCKETS

1

L42904

VALVE

- hydraulic, backhoe control (Parts list Figure 242)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

3шт.

3

95-8

WASHER,1/2"

- std. wrought 1/2"

6шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 6

6шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

8

D20045

PLATE ASSY.

CLAMP - tube

6шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

3шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

11

D44755

TUBE

- boom section, upper port, cylinder hydraulics

1шт.

12

D44757

TUBE - boom section, lower port, cylinder hydraulics

1шт.

13

D44679

HOSE ASSY.

HOSE - valve to boom cylinder (64" long), hydraulics

2шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

boom cylinder hydraulics 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, boom cylinder hydraulics

1шт.

16

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Boom cylinder hydraulics Hex, 7/16"-14 x 1 3/4", G5

1шт.

17

D42833

CLAMP

- hose, boom cylinder hydraulics

2шт.

18

92-7

LOCK WASHER,7/16"

med. sect., boom cylinder hydraulics 7/16"

1шт.

19

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, , Boom cylinder hydraulics 7/16"-14, GB

1шт.

20

D40653

TUBE - boom cylinder, rod end, hydraulics

1шт.

21

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, boom cylinder

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, boom cylinder hydraulics

1шт.

23

REF

INSTRUCTION

CYLINDER - hydraulic, boom (See Figures 224 and 226)

1шт.

24

D46440

SADDLE

SPACER - clamp, boom cylinder hydraulics

1шт.

25

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder, boom hydraulics

1шт.

26

D44810

TUBE - crowd section, upper port, crowd cylinder hydraulics

1шт.

27

D40642

TUBE

- crowd section, lower port, crowd cylinder hydraulics

1шт.

28

D42600

HOSE

- valve to manifold (22-1/2" long), crowd cylinder hydraulics

4шт.

29

D44652

MANIFOLD

- hose, at swing tower, crowd cylinder hydraulics

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Crowd cylinder hydraulics Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

med. sect., crowd cylinder hydraulics 3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), crowd cylinder hydraulics

2шт.

33

D44675

HOSE ASSY.

HOSE - manifold to crowd cylinder, closed end (49-1/2" long), hydraulics

1шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

crowd cylinder hydraulics, Incl. Ref. 35 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, crowd cylinder hydraulics

1шт.

36

D45549

HOSE ASSY.

HOSE - manifold to crowd cylinder, rod end (47-1/2" long), hydraulics

1шт.

37

D45536

TUBE - crowd cylinder, rod end, hydraulics, Includes: Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, crowd cylinder hydraulics

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Crowd cylinder hydraulics Hex, 5/16"-18 x 2", G5

1шт.

40

D33316

CLAMP

- hose, crowd cylinder hydraulics

2шт.

41

195-21

WASHER,5/16"

- plain (), Crowd cylinder hydraulics 5/16"

1шт.

42

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), crowd cylinder hydraulics

1шт.

43

REF

INSTRUCTION

CYLINDER - hydraulic, crowd (See Figures 228 and 230), hydraulics

1шт.

44

D44759

TUBE - bucket section, upper port, cylinder hydraulics

1шт.

45

D44757

TUBE - bucket section, lower port, cylinder hydraulics

1шт.

46

D44678

HOSE

- manifold to bucket cylinder, rod end (58" long), hydraulics

1шт.

47

D44677

HOSE ASSY.

HOSE - manifold to bucket cylinder, closed end (60" long), hydraulics

1шт.

48

D26231

NUT

- hex., jam (Special), bucket cylinder hydraulics

2шт.

49

D44680

TUBE - bucket cylinder, R.H., hydraulics

1шт.

50

D44682

TUBE - bucket cylinder, L.H., hydraulics

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

med. sect., bucket cylinder hydraulics 3/8"

2шт.

53

D40236

CLAMP

- tube, bucket cylinder hydraulics

2шт.

54

D45545

HOSE ASSY.

HOSE - bucket cylinder, upper (51-1/2" long), hydraulics

2шт.

55

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

56

D40471

CLAMP

- tube, bucket cylinder hydraulics

2шт.

57

195-25

WASHER,3/8"

Bucket cylinder hydraulics 3/8"

2шт.

58

131-6

LOCK NUT,3/8"-16, GC

NUT - hex. lock (3/8" - 16 NC), bucket cylinder hydraulics

2шт.

59

D46088

TUBE - bucket cylinder, closed end, hydraulics

1шт.

60

D46131

TUBE

- bucket cylinder, rod end, hydraulics

1шт.

61

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

bucket cylinder hydraulics, Incl. Ref. 62 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

62

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, bucket cylinder hydraulics

1шт.

63

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube to cylinder, bucket hydraulics

2шт.

64

D38648

BLOCK

SPACER - clamp, bucket cylinder hydraulics

2шт.

65

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figure 216 and 218 for proper cylinder)

1шт.
