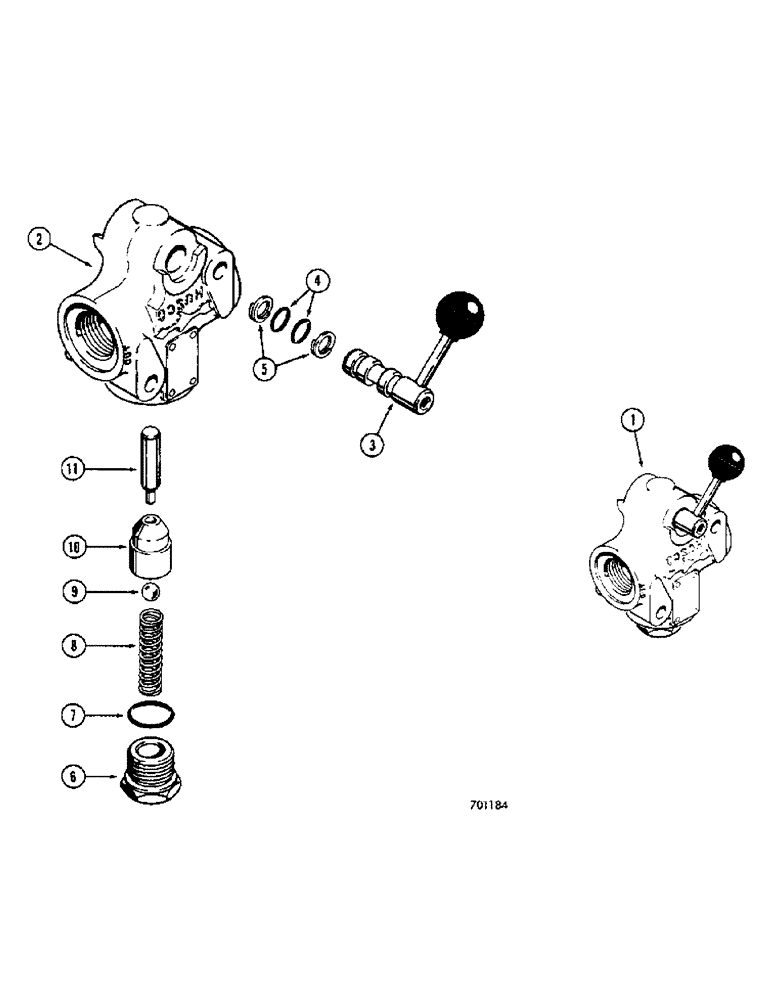

Запчасти Case 680CK (182) - D49932 BOOM LOCKOUT VALVE (84) - BOOMS, DIPPERS & BUCKETS

1

D49932

VALVE, CHECK

VALVE ASSEMBLY - boom lockout, complete, Inlcudes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

3

D51542

HANDLE

AND CAM ASSEMBLY - valve

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O" ring, cam

2шт.

5

D51535

RING

- backup, cam

2шт.

6

D51536

PLUG - check valve

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - check plug

1шт.

8

D51537

VALVE SPRING

SPRING - check valve

1шт.

9

211-102

BALL,1/2" Dia

- check valve

1шт.

10

D51538

SPOOL

POPPET - check valve

1шт.

11

D51539

FILTER HEAD

FOLLOWER - cam

1шт.
