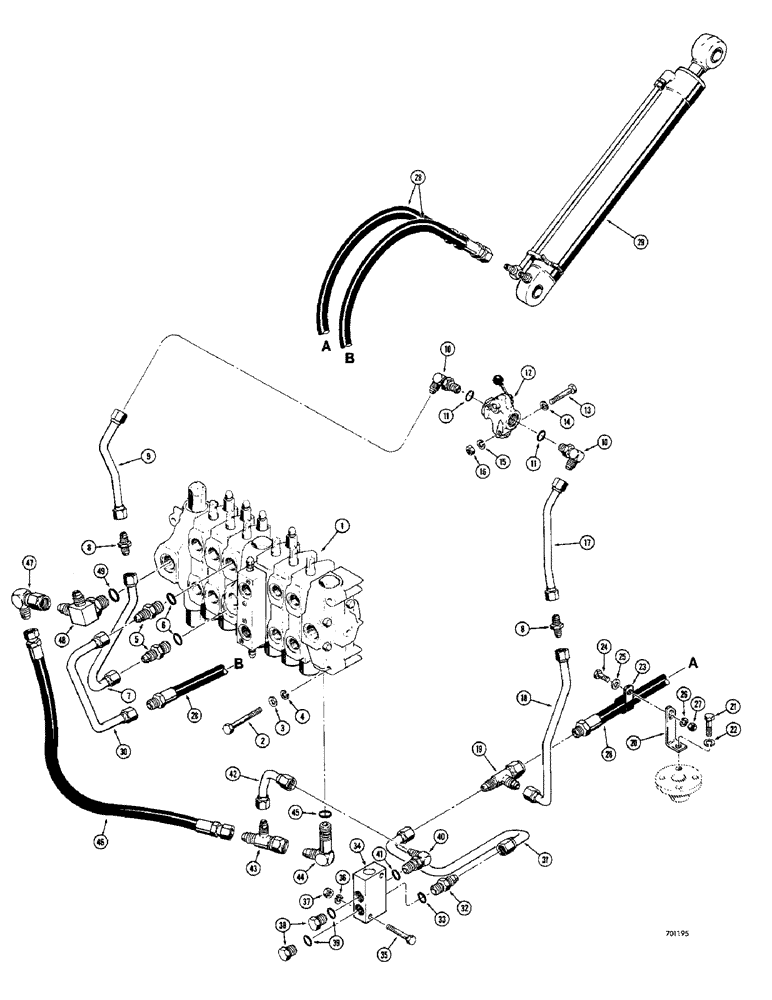

Запчасти Case 680CK (180) - BOOM LOCKOUT HYDRAULICS (84) - BOOMS, DIPPERS & BUCKETS

1

L42904

VALVE

- backhoe control (Parts list Figure 242)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

3шт.

3

95-8

WASHER,1/2"

- std. wrought 1/2"

6шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

L47384

TUBE,0.75" OD

- control valve to lockout valve, pressure line at control valve

1шт.

8

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - male, straight

2шт.

9

L47388

TUBE,0.75" OD x 11.4, 3.6" L

- control valve to lockout valve, pressure line at lockout vlave

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 11 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

D49932

VALVE, CHECK

VALVE - boom lockout (Parts list Figure 182)

1шт.

13

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

2шт.

14

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

L47389

TUBE,0.75" OD

- lockout valve to cylinder, pressure line at lockout valve

1шт.

18

L47385

TUBE - lockout valve to cylinder, pressure line at junction tee 0.75" OD

1шт.

19

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Lockout valve to cylinder, Pressure line 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

20

L47390

BRACKET - clamp mounting

1шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

22

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

23

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

25

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

28

D44679

HOSE ASSY.

HOSE - valve to boom cylinder (64" long)

2шт.

29

REF

INSTRUCTION

HYDRAULICS - boom cylinder (Parts list Figure 184)

1шт.

30

D44755

TUBE

- boom section, upper port

1шт.

31

L47387

TUBE,0.75" OD

- tee to relief valve, pressure side

1шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 33 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

34

D46850

VALVE

- relief, hydraulic

1шт.

35

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

36

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

38

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Hydraulic, Incl. Ref. 39 Hex Hd, 1 1/16"-12 ORB

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

40

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 41 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

42

L47386

TUBE - relief valve to control valve (Return line at relief valve)

1шт.

43

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Relief valve to control valve (Return line) 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

44

L42910

ELBOW UNION

ELBOW - adjustable, 90 degrees (Special), Inlcudes: Ref. 45

1шт.

45

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

46

D44752

HOSE

- bypass, end inlet to outlet (25" long)

1шт.

47

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

48

D44753

FITTING

TEE - special, bypass hose to outlet (At outlet)

1шт.

49

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
