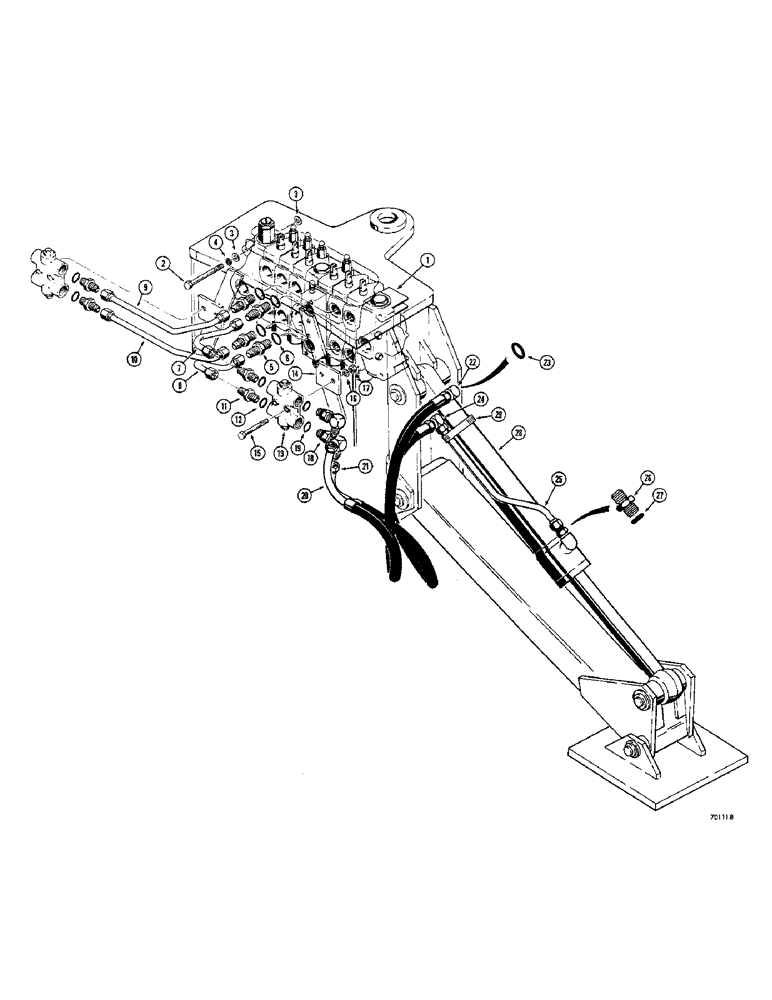

Запчасти Case 680CK (156) - STABILIZER CYLINDER LOCKING VALVES AND RELATED PARTS (84) - BOOMS, DIPPERS & BUCKETS

1

L42904

VALVE

Hydraulic, backhoe control (Parts list Figure 242)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

3шт.

3

95-8

WASHER,1/2"

Standard wrot

6шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, Includes: Ref. 6

4шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

7

L48348

SPARE PART Control valve to RH stabilizer cylinder, closed end 0.5" OD

1шт.

8

L48346

SPARE PART Control valve to RH stabilizer cylinder, rod end

1шт.

9

L48352

SPARE PART Control valve to LH stabilizer cylinder, closed end 0.5" OD

1шт.

10

L48350

SPARE PART Control valve to LH stabilizer cylinder, rod end 0.5" OD

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Male, straight, Incl. Ref 12

4шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

L46353

SPARE PART Lock, stabilizer cylnder

2шт.

14

L47195

SPARE PART Mounting, lock valve (Welded to mounting frame)

2шт.

15

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

131-4

LOCK NUT,5/16"-18, GB

4шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 19

4шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

L48139

HOSE ASSY.

Lock valve to stabilizer cylinder (Closed end) 23.1" long

2шт.

21

L48138

HOSE ASSY.

Lock valve to stabilizer cylinder (Rod end) 23.1" long

2шт.

22

D23974

ELBOW

Adjustable, 90 degrees (Closed end), Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

D26361

FITTING

ELBOW - female, 90 degrees

2шт.

25

D43621

TUBE

Valve to stabilizer cylinder, rod end

2шт.

26

218-5602

CONNECTOR - male, straight, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (See Figures 212 and 214 for proper cylinder)

2шт.

29

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Tube to cylinder

2шт.
