Артикул
Название
Примечание
Количество
1
D44624

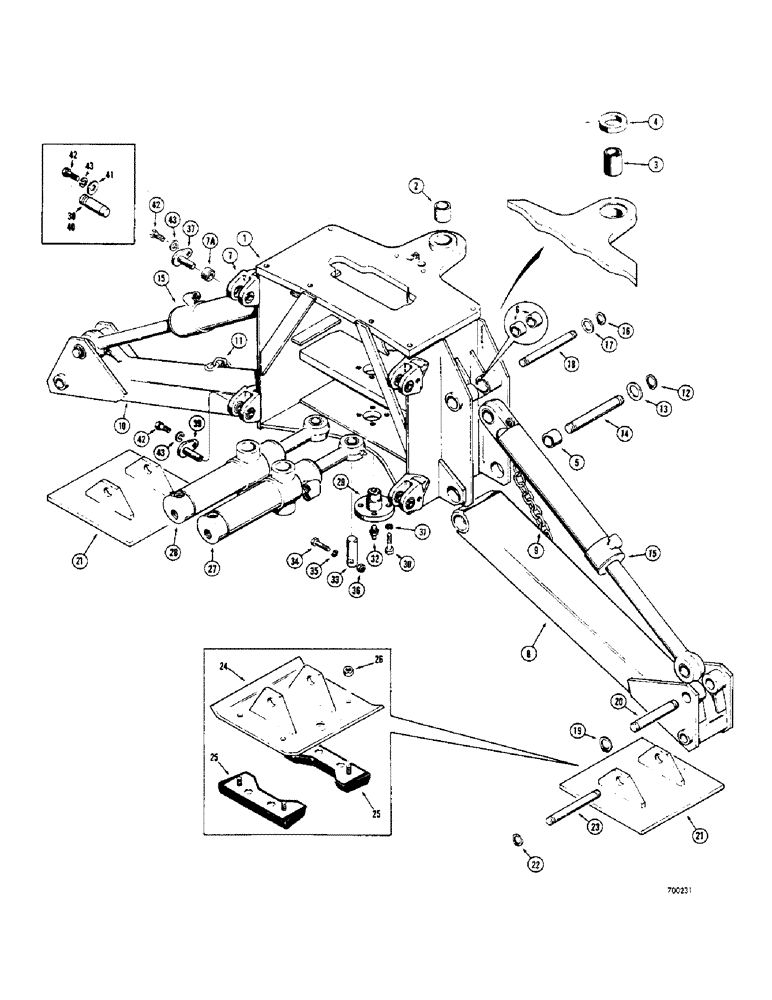

FRAME - backhoe mounting, Includes: Ref. 2 - 7A
1шт.
2
D33023
BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L
- upper, frame to swing tower
1шт.
3
D43508
BUSHING
- lower, frame to swing tower
1шт.
4
D44613
SPACER
WASHER - special, lower mounting
1шт.
5
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- stabilizer leg mounting
4шт.
6
D34340
BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L
- stabilizer cylinder mounting
4шт.
7
D44625
BRACKET ASSEMBLY - frame mounting, Includes: Ref. 7A
4шт.
7a
A19288
BUSHING
- mounting, Serial Range: frame-chassis
2шт.
8
D43292
SUPPORT ASSY.
LEG - stabilizer, R.H., Includes: Ref. 9
1шт.
9
D43895
CHAIN (AG)
CHAIN - transport
1шт.
10
D43291
SUPPORT ASSY.
LEG - stabilizer, L.H., Includes: Ref. 11
1шт.
11
D43895
CHAIN (AG)
CHAIN - transport
1шт.
12
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
4шт.
13
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, steel (2-1/16")
4шт.
14
D45523
PIN,50.8mm OD x 276.35mm L
- stabilizer to mounting frame
2шт.
15
REF
INSTRUCTION
CYLINDER - hydraulic, stabilizer (See Figures 212 and 214 for proper cylinder)
2шт.
16
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
4шт.
17
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
- flat, steel (1-5/16")
4шт.
18
D37611
PIVOT PIN,44.45mm OD x 255.59mm L
PIN - stabilizer cylinder, closed end
2шт.
19
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
4шт.
20
D42912
AXLE PIN
PIN - stabilizer, cylinder, rod end
2шт.
21
D42767
PAD
FOOT - stabilizer, cleated
2шт.
22
D26918
SNAP RING,#125, Ext
Ring, Snap, , pin #125, Ext
4шт.
23
D42785
AXLE PIN
PIN - stabilizer foot
2шт.
24
D43295
FOOT - stabilizer, street and cemetery pad (Optional)
2шт.
25
D40469
SHOE (ASSY)
PAD - rubber. D43295 stabilizer foot (Optional)
4шт.
26
D29712
SPECIAL NUT
- hex., special
8шт.
27
REF
INSTRUCTION
CYLINDER - hydraulic, R.H. swing (See Figures 220 and 222 for proper cylinder)
1шт.
28
REF
INSTRUCTION
cylinder - hydraulic, L.H. swing (See Figures 220 and 222 for proper cylinder)
1шт.
29
D48220
PIN
- swing, Serial Range: cylinder-frame
4шт.
30
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
16шт.
31
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
16шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT) Used on lower D48220 pins
2шт.
32a
219-39
FITTING
- grease, 45 degrees (1/8" NPT) Used on upper D48220 pin (Not shown)
2шт.
33
D47866
PIN,38.1mm OD x 139.7mm L
- swing cylinder to swing tower
2шт.
34
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
HHCS - 5/8" - 11 NC x 4"
2шт.
36
25-1010
NUT,5/8"-11, G5
2шт.
37
L16783
PIN
- mounting, backhoe mounting frame to chassis (Upper) Early production tear drop pin design (Order L40682 pin and L40681 washer for service)
2шт.
38
L40682
AXLE PIN
PIN - mounting, backhoe mounting frame to chassis (Upper) Late production washer retaining pin design
2шт.
39
L16782
PIN
- mounting, backhoe mounting frame to chassis (Lower) Early production tear drop pin design (Order L42611 pin and L40681 washer for service)
2шт.
40
L42611
AXLE PIN
PIN - mounting, backhoe mounting frame to chassis (Lower) Late production washer retaining pin design
2шт.
41
L40681
LOCK WASHER
-special, locking (Backhoe mounting pin) Used with L40682 and L42611 pins only
4шт.
42
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
4шт.
43
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
4шт.
Выбрано товаров: 45
