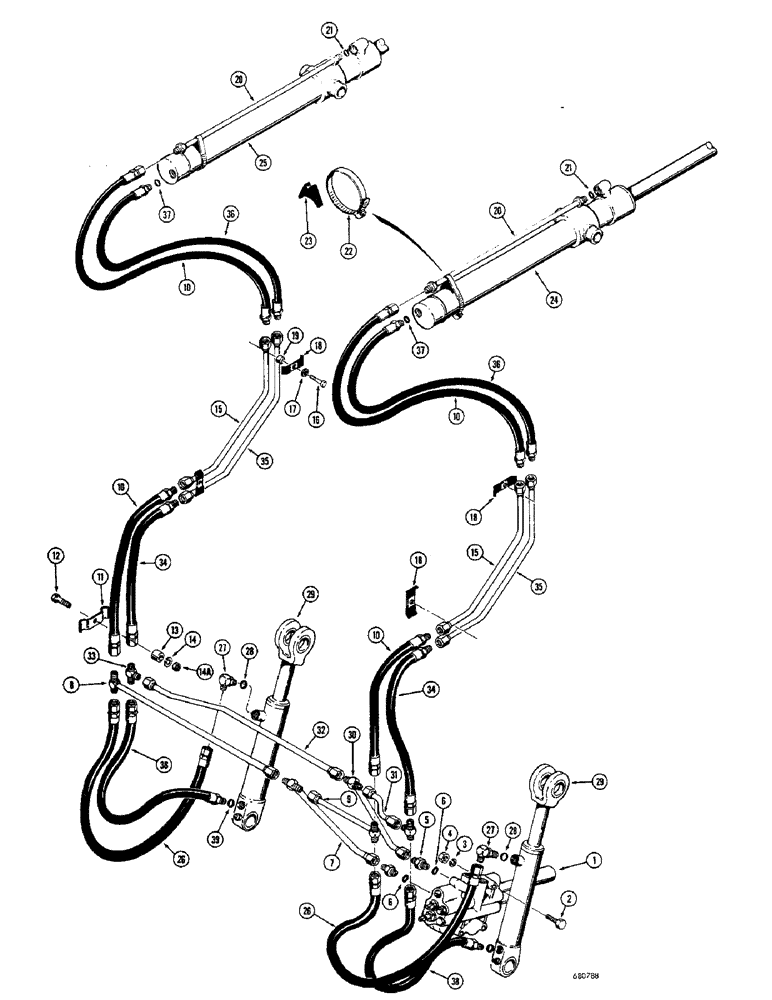

Запчасти Case 680CK (144) - LOADER HYDRAULICS, HYDRA-LEVELING AND TILT CYLINDERS (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 232 for proper valve)

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" -16 NC x 4-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 6 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

L26269

TUBE - valve to tilt and Hydra-Leveling cylinders, rod end

1шт.

8

L26268

TUBE - valve to L.H. tilt and L.H. Hydra-Leveling cylinders, rod end 0.625" OD x 20" L

1шт.

9

L26267

TUBE - valve to R.H. tilt and R.H, Hydra-Leveling cylinders, rod end

1шт.

10

L26727

HOSE ASSY.

HOSE - valve to tilt cylinders, rod end (43" long)

4шт.

11

L26312

CLAMP

- hose

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

13

D33551

BUSHING

SPACER - clamp

2шт.

14

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

14a

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

L26708

TUBE - valve to tilt cylinders, rod end (At lift frame) 0.625" OD

2шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

17

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

18

D33316

CLAMP

- tube

4шт.

19

D33552

BUSHING

SPACER - clamp

4шт.

20

L13737

TUBE

- valve to tilt cylinders, rod end (At tilt cylinder)

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

22

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

23

D38648

BLOCK

SADDLE - tube, rubber

2шт.

24

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. loader tilt (See Figures 202 and 204 for proper cylinder)

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. loader tilt (See Figures 202 and 204 for proper cylinder)

1шт.

26

L13744

HOSE ASSY.

HOSE - valve to Hydra-Leveling cylinders, rod end (28" long)

2шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

REF

INSTRUCTION

CYLINDER - hydraulic, Hydra-Leveling (See Figures 206 and 208 for proper cylinder)

2шт.

30

L16997

TUBE - valve to tilt and Hydra-Leveling cylinders, closed end 0.75" OD x 12.88, 3.0" L

1шт.

31

L17081

TUBE - valve to R.H. tilt and R.H. Hydra-Leveling cylinders, closed end

1шт.

32

L17082

TUBE - valve to L.H. tilt and L.H. Hydra-Leveling cylinders, closed end

1шт.

33

218-595

TEE,7/8"-14, 37 Degree

- valve to tilt and Hydra-Leveling cylinders, closed end

2шт.

34

D28111

HOSE ASSY.

HOSE - tee to tilt cylinders, closed end (39" long)

2шт.

35

L26710

TUBE,0.625" OD

- to tilt cylinders, closed end (At lift frame)

2шт.

36

L26725

HOSE ASSY.

HOSE - to tilt cylindrs, closed end (37" long) At cylinder, Includes: Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

35543

HOSE

- tee to Hydra-Leveling cylinder, closed end (28" long), Includes: Ref. 39

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
