Артикул
Название
Примечание
Количество
L15296

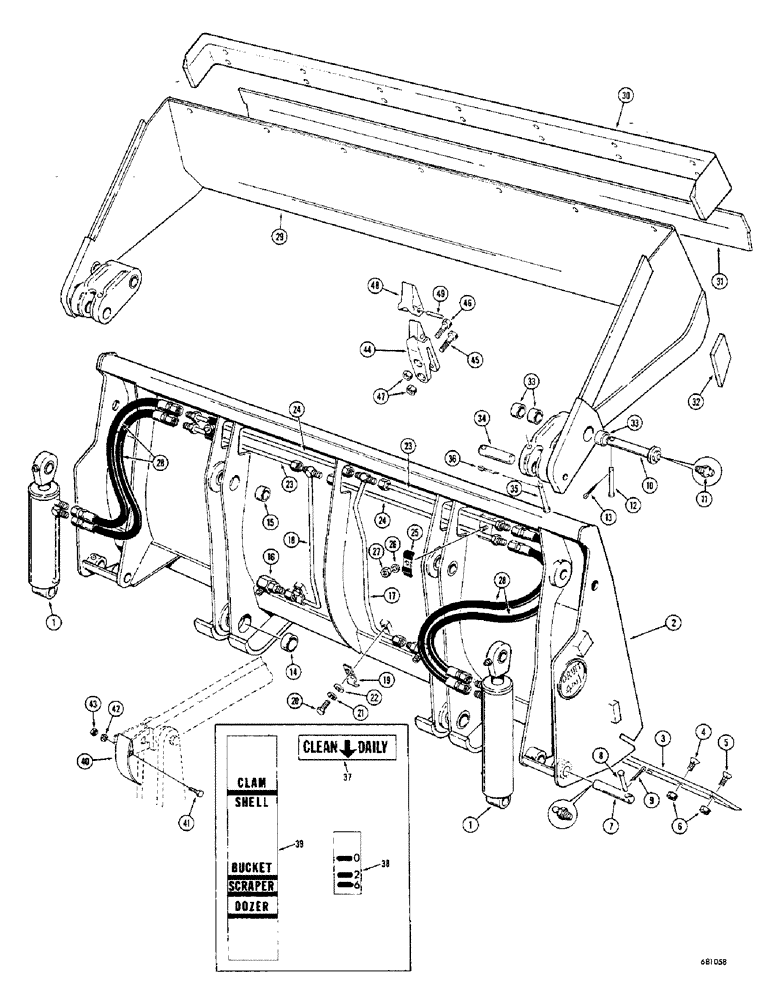

BUCKET - Drott, without teeth (1 cu. yd.) machinery item, Includes: Ref. 1 - 38
1шт.
1
A18679
CYLINDER
- clam (Parts list Figure 210)
2шт.
L32006
BLADE ASSEMBLY - bucket, Includes: Ref. 2 - 15
1шт.
2
NSS
NOT SOLD SEPARAT
BLADE - bucket
1шт.
3
A18658
EDGE
CUTTING EDGE - blade assembly
1шт.
4
19-1232
CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 5
BOLT - plow (3/4" - 10 NC x 2")
12шт.
5
19-1236
CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 5
BOLT - plow (3/4" - 10 NC x 2-1/4")
2шт.
6
25-1012
NUT,3/4"-10, G5
14шт.
7
A18665
PIN
-, Serial Range: cylinder-blade
2шт.
8
A18664
CLEVIS PIN
PIN - clevis (3/8" x 2-3/8")
2шт.
9
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
10
A18663
PIN
- clam to blade, Includes: Ref. 11
2шт.
11
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
12
A18666
PIN
- clevis (1/2" x 4")
2шт.
13
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
14
D33678
BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L
- lift arm mounting pins (Lower)
4шт.
15
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- lift arm mounting pins (Upper)
4шт.
16
A17668
CYLINDER
ELBOW - swivel, 90 degrees
2шт.
17
L32013
TUBE - control valve to clam cylinders, rod end
1шт.
18
L32015
TUBE - control valve to clam cylinders, closed end 0.75" OD x 20.45, 5" L
1шт.
19
A17698
CLAMP - tube
2шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
21
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
22
95-6
WASHER,3/8"
- plain () 3/8"
2шт.
23
L32017
TUBE - valve to clam cylinder, R.H. cylinder rod end - L.H. cylinder closed end 0.625" OD x 19.1" L
2шт.
24
L32019
TUBE,0.625" OD x 25.875" L
- valve to clam cylinder, R.H. cylinder closed end - L.H. cylinder rod end
2шт.
25
A17696
COLLAR CLAMP
CLAMP - tube
2шт.
26
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
27
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
28
D25670
FLEXIBLE HOSE
HOSE - valve to clam cylinder, at cylinder (26" long)
4шт.
A18659
CLAW
CLAM ASSEMBLY - bucket, Includes: Ref. 29 - 36
1шт.
29
NSS
NOT SOLD SEPARAT
CLAM - bucket
1шт.
30
A18660
BLADE
CUTTING EDGE - clam
1шт.
31
A18661
PLATE
WEAR PLATE - clam
1шт.
32
D38842
HOOK
GRAB HOOK - clam
2шт.
33
A18662
BUSHING
-, Serial Range: clam-blade
6шт.
34
A18667
PIN
-, Serial Range: clam-cylinder
2шт.
35
A18666
PIN
- clevis (1/2" x 4")
2шт.
36
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
37
A18673
DECAL
- cleanout
1шт.
38
A18489
DECAL
- clam opening
1шт.
39
321-1225
DECAL - bucket position
1шт.
40
L15299
BRACKET - mounting, bucket position decal
1шт.
41
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
42
92-5
LOCK WASHER,5/16"
med. sect. 5/16"
2шт.
43
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
2шт.
A18668
TOOTH
- bucket, Includes: Ref. 44 - 49
7шт.
44
NSS
NOT SOLD SEPARAT
SHANK - tooth, bucket optional
1шт.
45
13-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
Hex, 1/2"-13 x 2 3/4", G5, Bucket teeth optional
1шт.
46
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
HHCS - 1/2" - 13 NC x 2-1/2", bucket teeth optional
1шт.
47
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC), bucket teeth optional
2шт.
48
A18670
POINT
- tooth, bucket optional
1шт.
49
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, , Bucket teeth optional 3/8" x 2 1/4", Slotted
1шт.
Выбрано товаров: 53
