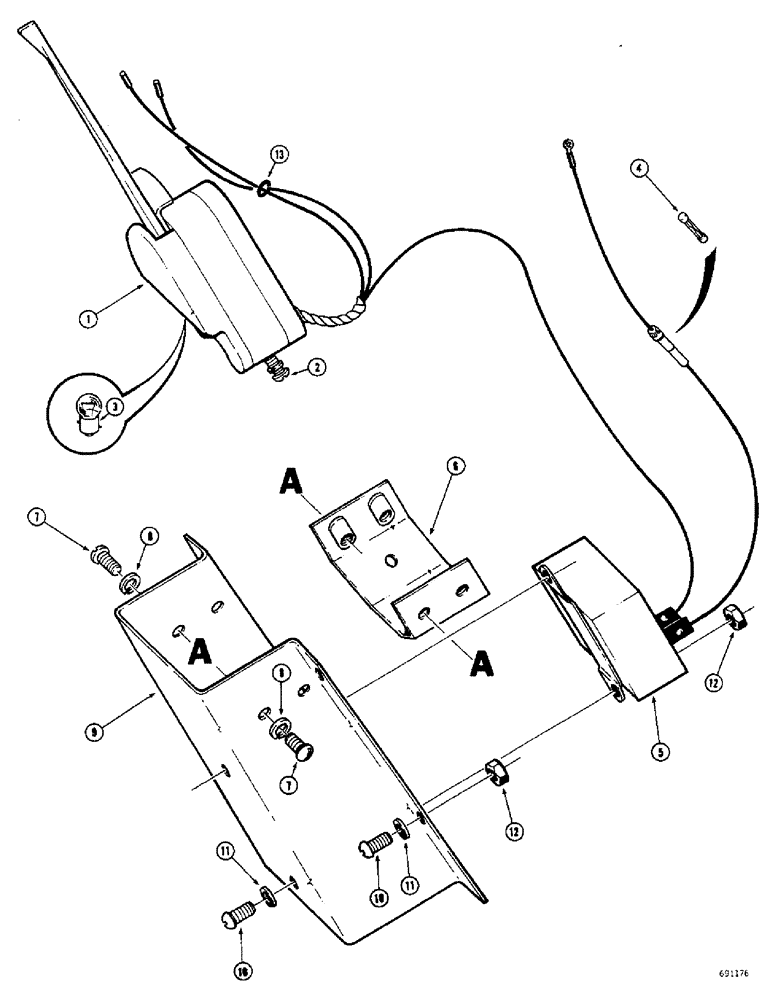

Запчасти Case 680CK (056) - L16459 SIGNAL AND FLASHER CONTROL (55) - ELECTRICAL SYSTEMS

1

L16459

SIGNAL CONTROL ASSEMBLY - turn and flasher, 12 volt (Signal - stat No. 922)

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - signal, turn

1шт.

2

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- machine, fillister head (#8 - 32 NC x 1")

2шт.

3

B50213

BULB

- 12 volt, signal switch

1шт.

4

223-14

FUSE,10 Amp, Type SFE

- protective (14 amp.)

1шт.

5

L32212

FLASHER UNIT

FLASHER - signal (Signal - stat No. 250)

1шт.

6

L16454

BRACKET - mounting, signal, Serial Range: control-cover

1шт.

7

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- machine, round head (#8 - 32 NC x 5/16") Zinc plated

4шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

9

L16453

COVER - signal control, at console

1шт.

10

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- machine, round head (1/4" - 20 NC x 1/2") Zinc plated

6шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

12

25-104

NUT,1/4"-20, G5

6шт.

13

L13486

X

GROMMET - signal wire protection

1шт.
