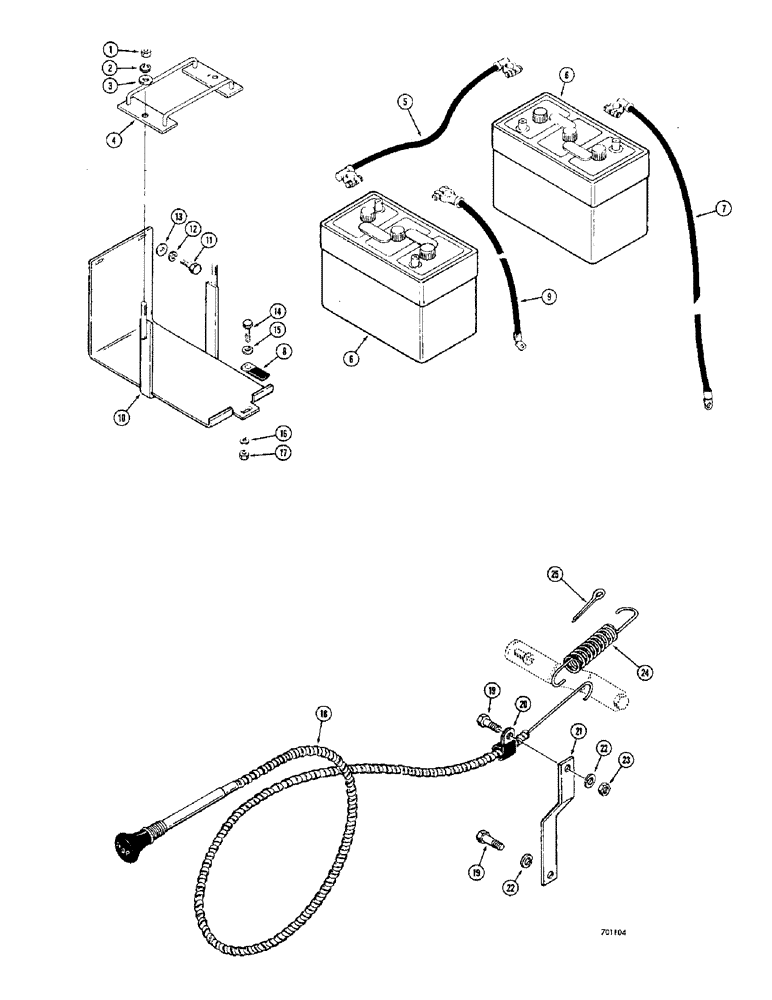

Запчасти Case 680CK (048) - BATTERIES AND CABLES, FUEL SHUT OFF CABLE (55) - ELECTRICAL SYSTEMS

1

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

2

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

3

195-22

WASHER

- plain (3/8")

4шт.

4

L15283

FUNNEL

FRAME - battery holddown

2шт.

5

L17227

CABLE - battery, jumper

1шт.

6

A8325

BATTERY - electrical, 6 volt (When stock is exhausted, order F53478 battery for service)

2шт.

6

F53478

DRY BATTERY

- electrical, 6 volt

2шт.

7

L17229

CABLE - battery, ground

1шт.

8

A22880

CLIP

CLAMP - ground cable

1шт.

9

L17228

CABLE - battery, to starter solenoid

1шт.

10

L11059

BATTERY TRAY

TRAY - battery

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

13

195-25

WASHER,3/8"

4шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

195-25

WASHER,3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC ) If used

2шт.

18

L47397

CONTROL

CABLE - control, fuel shut off

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Fuel shut off cable Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- cable, fuel shut off cable

1шт.

21

L40891

SUPPORT

BRACKET - cable mounting, fuel shut off cable

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect., fuel shut off cable 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), fuel shut off cable

1шт.

24

L45037

SPRING

- fuel shut off, fuel shut off cable

1шт.

25

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - cotter (3/32" dia. x 1/2"), fuel shut off cable

1шт.
