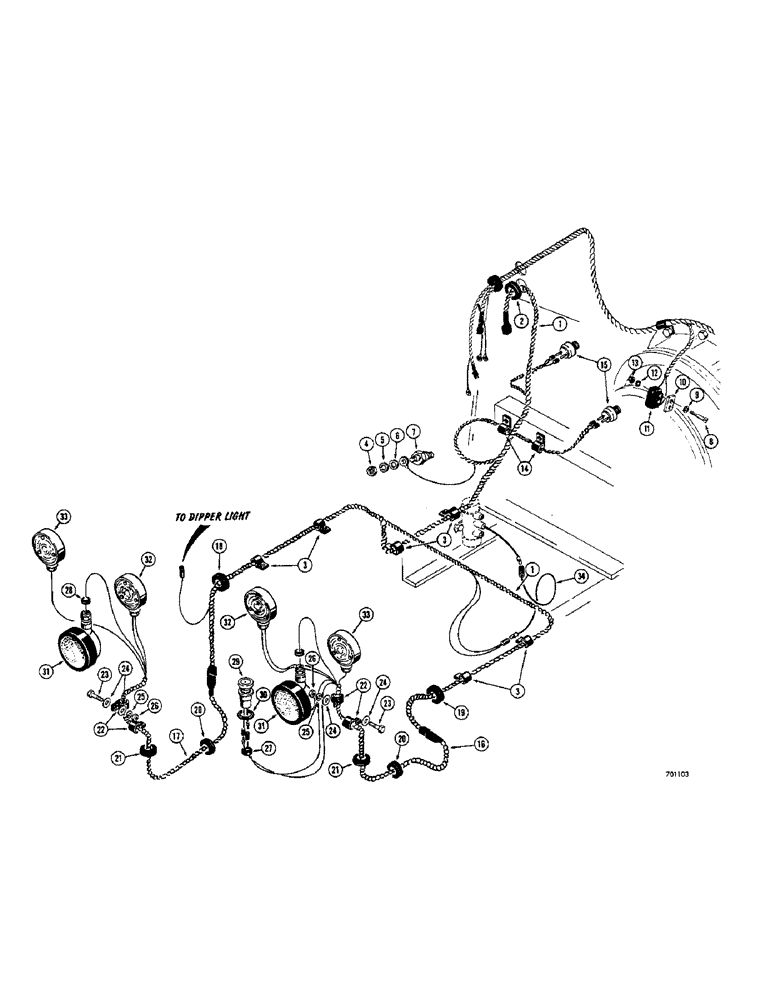

Запчасти Case 680CK (046) - ELECTRICAL SYSTEM, REAR HARNESS (55) - ELECTRICAL SYSTEMS

1

L42574

HARNESS

- main wiring, rear

1шт.

2

L17604

GROMMET

- rubber, at fire wall

1шт.

3

A22880

CLIP

- harness, gear shift cover and differential cover plate

6шт.

4

129-37

NUT,#10-32

1шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

6

195-512

WASHER,#10

- plain () Zinc plated #10

1шт.

7

A13795

SENDER UNIT

SENDING UNIT - converter temperature gauge

1шт.

8

173-69

RHMS - #6 - 32 NC x 1-1/2"

2шт.

9

195-6

WASHER,#6

- plain () #6

2шт.

10

L11524

SPACER - neutral starting switch

1шт.

11

L11349

SWITCH

- neutral starting

1шт.

12

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

13

129-5

NUT,#6-32

2шт.

14

A22880

CLIP

- harness, at brake support (If used)

2шт.

15

A12491

SWITCH

ASSY - brake, stop light

2шт.

16

L26381

HARNESS - rear lights, R.H.

1шт.

17

L26381

HARNESS - rear lights, L.H.

1шт.

18

49562

GROMMET,11/16" ID x 1" Groove Dia

- rear harness, at tool box (L.H.)

1шт.

19

49567

GROMMET

- rear harness, at tool box (R.H.)

1шт.

20

L17603

GROMMET

- rear harness, at fender

2шт.

21

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber, at fender

2шт.

22

49859

CLAMP

- harness to light bracket

4шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

8шт.

25

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

27

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, at light bracket (If used)

1шт.

28

A23870

GROMMET

- rubber, at light bracket

2шт.

29

L11344

WARNING LIGHT

LIGHT - engine warning (Parts list Figure 50)

1шт.

30

L11345

GASKET

- light, engine warning

1шт.

31

L19663

LIGHT

REAR LIGHT ASSEMBLY - 12 volt (Parts list Figure 50)

2шт.

32

L26301

STOP AND TAILLIGHT - 12 volt (Parts list Figure 50)

2шт.

33

L26302

LIGHT

FLASH AND DIRECTIONAL LIGHT - 12 volt (See Figure 50)

2шт.

34

L43268

ELECTRICAL WIRE

WIRE - harness to fuel pump (See Figure 34)

1шт.

35

A23870

GROMMET

- rubber, warning light wire at fuel tank (Not shown)

1шт.
