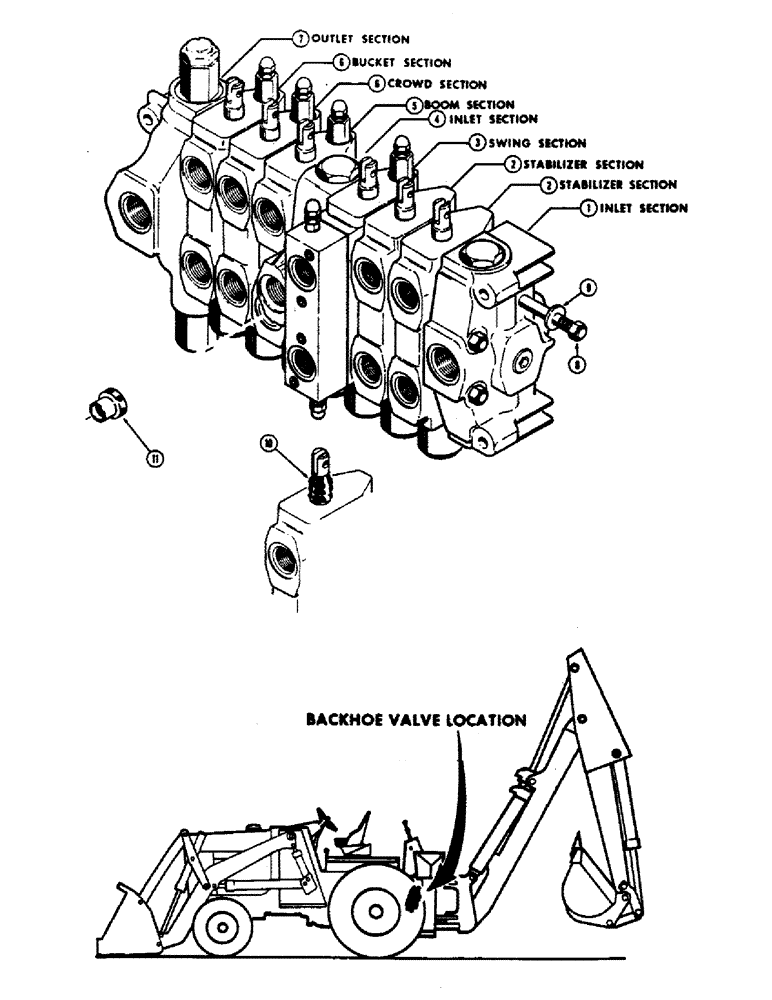

Запчасти Case 680CK (188) - L42904 BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

L42904

VALVE

- backhoe control, Includes: Ref. 1 - 9

1шт.

1

L32692

NUT

INLET SECTION - end, backhoe control valve (Figure 190)

1шт.

2

D40754

STABILIZER SECTION - backhoe control valve (Figure 192)

1шт.

3

D40756

KNIFE SECTION

SWING SECTION - backhoe control valve (Figure 194)

1шт.

4

D47621

X

INLET SECTION - center, backhoe control valve (Figure 194)

1шт.

5

D47624

SPARE PART

BOOM SECTION - backhoe control valve (Figure 198)

1шт.

6

D47622

BUCKET AND CROWD SECTION - backhoe control valve (Figure 196)

2шт.

7

D47623

VALVE BLOCK

OUTLET SECTION - backhoe control valve (Figure 190)

1шт.

8

D47627

STUD ASSEMBLY - backhoe control valve

4шт.

9

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

10

D46952

BELLOWS

- valve spool

6шт.

11

D47881

RESTRICTOR - boom drop, boom section only

1шт.
