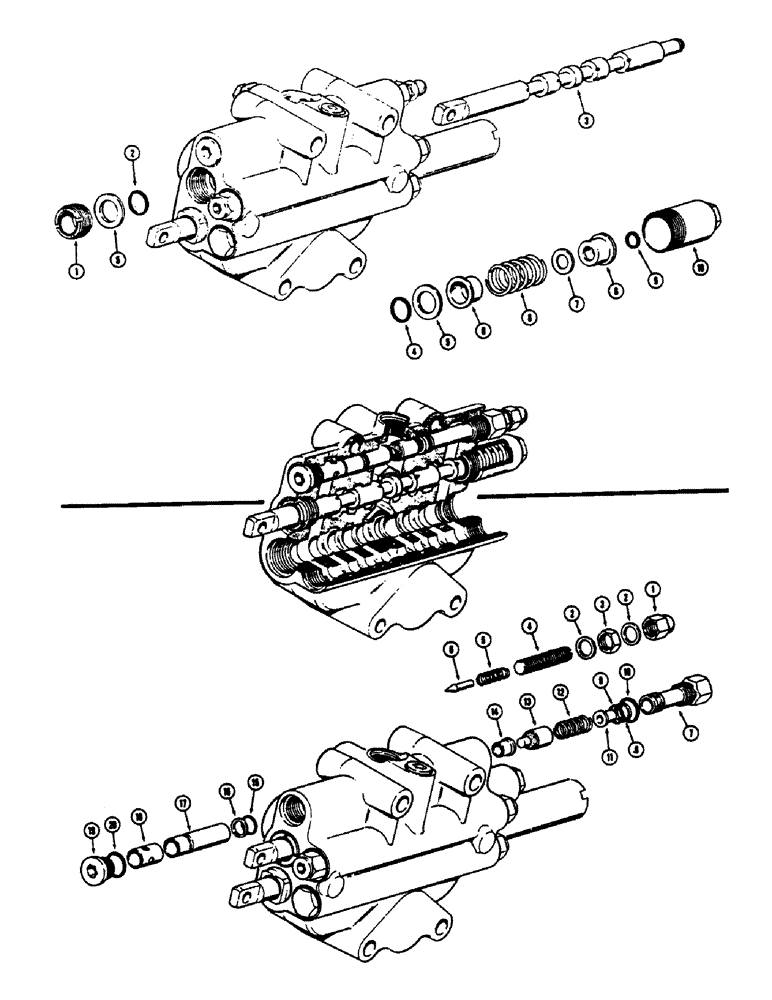

Запчасти Case 680CK (184) - THREE POSITION SPOOLS - DOUBLE ACTING, USED WITH THREE SPOOL LOADER VALVE ONLY (35) - HYDRAULIC SYSTEMS

D37050

SPOOL

ASSEMBLY - three position (Color code black or letter code W) .73700" to .73709", Includes: Ref. 1 - 10

1шт.

D37051

SPOOL

ASSEMBLY - three position (Color code blue or letter code X) .73710" to .73719", Includes: Ref. 1 - 10

1шт.

D37052

SPOOL

ASSEMBLY - three position (Color code yellow or letter code Y) .73720" to .73729", Includes: Ref. 1 - 10

1шт.

D37053

SPOOL

ASSEMBLY - three position (Color code green or letter code Z) .73730" to .73740", Includes: Ref. 1 - 10

1шт.

1

L30744

GLAND

AND WIPER - spool

1шт.

2

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25286

WASHER

- special

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, main relief valve

1шт.

2

D26270

WASHER, SEALING

WASHER - special, main relief valve

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16"-24 NF), main relief valve, Includes: Ref. 4

1шт.

4

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

SCREW - adjusting, main relief valve (5/16"-24 NF x 1-3/4")

1шт.

5

D26268

SPRING

- pilot, main relief valve

1шт.

6

D26267

PLUNGER

- relief valve, main, Includes: Ref. 7

1шт.

7

A25291

CAP

- relief valve, main

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, L30444 seal, main relief valve

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O" ring, relief valve cap (Small), main relief valve

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, relief valve cap, large, main

1шт.

11

D26266

SEAT

- plunger, main relief valve

1шт.

12

D52319

SPRING

- relief valve (Replaces D26261), main

1шт.

13

D37062

VALVE

POPPET ASSEMBLY - main relief valve

1шт.

14

D37063

SEAT

- poppet, main relief valve, Includes: Ref. 15

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O" ring, sleeve, main relief valve

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, L30444 seal, main relief valve

1шт.

17

D37064

SLEEVE

- poppet seat, main relief valve

1шт.

18

D37065

SLEEVE

- drain, main relief valve

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Main relief valve, Incl Ref 20 Hex Soc, 3/4"-16 ORB

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, main relief valve

1шт.
