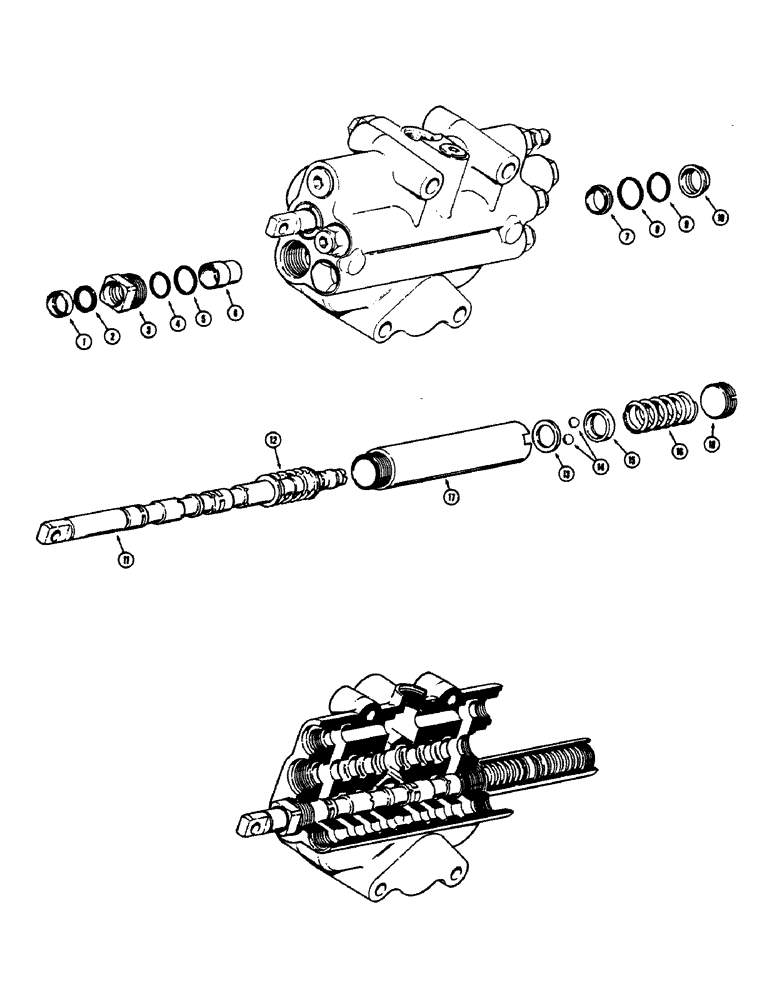

Запчасти Case 680CK (180) - FOUR POSITION SPOOLS - FLOAT (35) - HYDRAULIC SYSTEMS

L32150

SPOOL

ASSEMBLY - four position (Color code black or letter code W) .73700" to .73709", Includes: Ref. 1 - 18

1шт.

L32151

SPOOL

ASSEMBLY - four position (Color code blue or letter code X) .73710" to .73719", Includes: Ref. 1 - 18

1шт.

L32152

SPOOL

ASSEMBLY - four position (Color code yellow or letter code Y) .73720" to .73729", Includes: Ref. 1 - 18

1шт.

L32153

SPOOL

ASSEMBLY - four position (Color code green or letter code Z) .73730" to .73740", Includes: Ref. 1 - 18

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

GLAND - spool

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland (Small)

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

SEAL - "O" ring, gland (Large)

1шт.

6

D37076

SLEEVE

- spool, lug end

1шт.

7

D33857

RETAINER

- "O" ring

1шт.

8

A16877

SEAL

- "O" ring, housing (Large)

1шт.

9

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, spool (Small)

1шт.

10

D33856

RETAINER

- "O" ring

1шт.

L32154

KIT

SPOOL KIT - L32150 spool assembly only, Includes: Ref. 11 and 12

1шт.

L32155

KIT

SPOOL KIT - L32151 spool assembly only, Includes: Ref. 11 and 12

1шт.

L32156

KIT

SPOOL KIT - L32152 spool assembly only, Includes: Ref. 11 and 12

1шт.

L32157

KIT

SPOOL KIT - L32153 spool assembly only, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - four position

1шт.

12

A16882

SPRING

- centering

1шт.

13

L30455

WASHER

- detent

1шт.

14

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

15

L30456

CAM

- detent

1шт.

16

L30626

SPRING

- detent

1шт.

17

L30454

CAP

- valve, detent

1шт.

18

L30458

PLUG

- detent adjustment

1шт.
