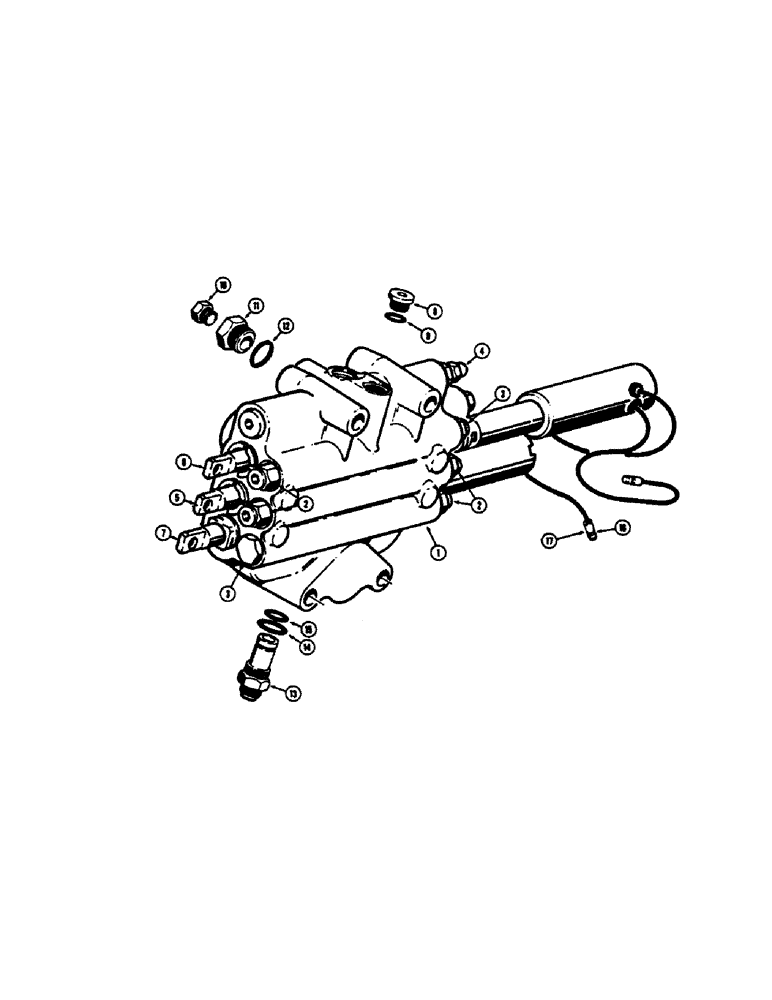

Запчасти Case 680CK (178[A]) - L15308 LOADER CONTROL VALVE - 3 SPOOL (35) - HYDRAULIC SYSTEMS

1

L15308

VALVE

- loader control, 3 spool, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Figure 186)

4шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check (Figure 186)

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Figure 184)

1шт.

5

L30954

SPOOL

- three position, with solenoid (Figure 182)

1шт.

L30640

SPOOL - three position, with solenoid (Figure 182)

1шт.

L30955

SPOOL

- three position, with solenoid (Figure 182)

1шт.

L30956

SPOOL

- three position, with solenoid (Figure 182)

1шт.

6

D37050

SPOOL

- three position, without solenoid (Figure 184)

1шт.

D37051

SPOOL

- three position, without solenoid (Figure 184)

1шт.

D37052

SPOOL

- three position, without solenoid (Figure 184)

1шт.

D37053

SPOOL

- three position, without solenoid (Figure 184)

1шт.

7

L32150

SPOOL

- four position (Figure 180)

1шт.

L32151

SPOOL

- four position (Figure 180)

1шт.

L32152

SPOOL

- four position (Figure 180)

1шт.

L32153

SPOOL

- four position (Figure 180)

1шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9 Hex Soc, 3/4"-16 ORB

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

10

L30683

X

PLUG - pressure check adapter

1шт.

11

D38825

ADAPTER

- pressure check, Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, adapter

1шт.

13

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 14 and 15

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, connector (Large)

1шт.

15

L32680

RING

SEAL - "O" ring, connector (Small)

1шт.

16

L11778

CONNECTOR, ELEC

TERMINAL - electrical, bullet type

2шт.

17

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

TUBING - insulation

2шт.
