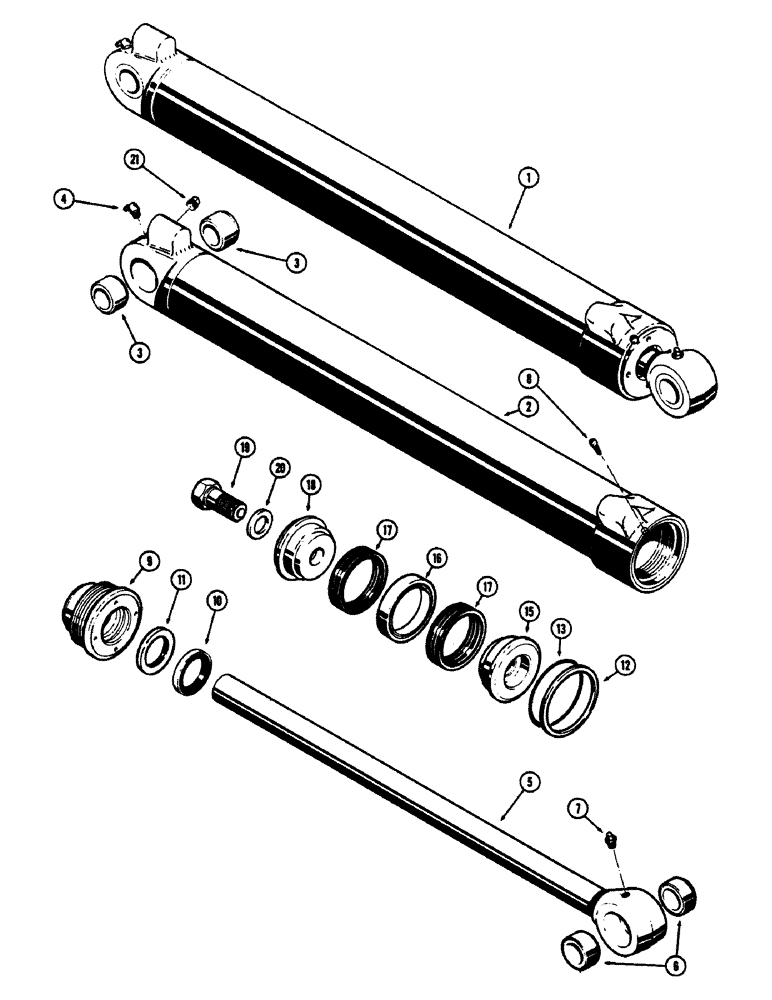

Запчасти Case 680CK (177A) - G32683 BACKHOE CYLINDER (35) - HYDRAULIC SYSTEMS

1

G32683

HYD TUBE,4.5" ID x 52.62" L

CYLINDER ASSY. - crowd, Includes: Ref. 2 - 21

1шт.

2

D44661

CYLINDER

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

D44659

ROD

ASSY. - piston, Includes: Ref. 6

1шт.

6

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" self-tapping

1шт.

9

G32731

GLAND

- packing

1шт.

10

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of cylinder packing seal kit P/N G32285

1шт.

11

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

Part of cylinder packing seal kit P/N G32285

1шт.

12

G32284

BACK-UP RING

- back-up

1шт.

Part of cylinder packing seal kit P/N G32285

1шт.

13

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - 4-1/2 x 4-3/4 x 1/8"

1шт.

Part of cylinder packing seal kit P/N G32285

1шт.

15

D46425

PISTON

- split, rod end

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - piston, vee seal

1шт.

17

D47205

PACKING

- piston, vee seal

1шт.

Part of cylinder packing seal kit P/N G32285

1шт.

18

D46931

PISTON

- split, bolt end

1шт.

19

D38425

BOLT

- piston retaining (Self-locking)

1шт.

20

G32351

WASHER

- piston bolt, 1-11/32 x 2-1/2 x 9/64"

1шт.

21

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" P.T. sq. hd.

1шт.

G32285

SEAL

KIT - cylinder packing, Includes: Ref. 10 thru 13 and 17

1шт.
