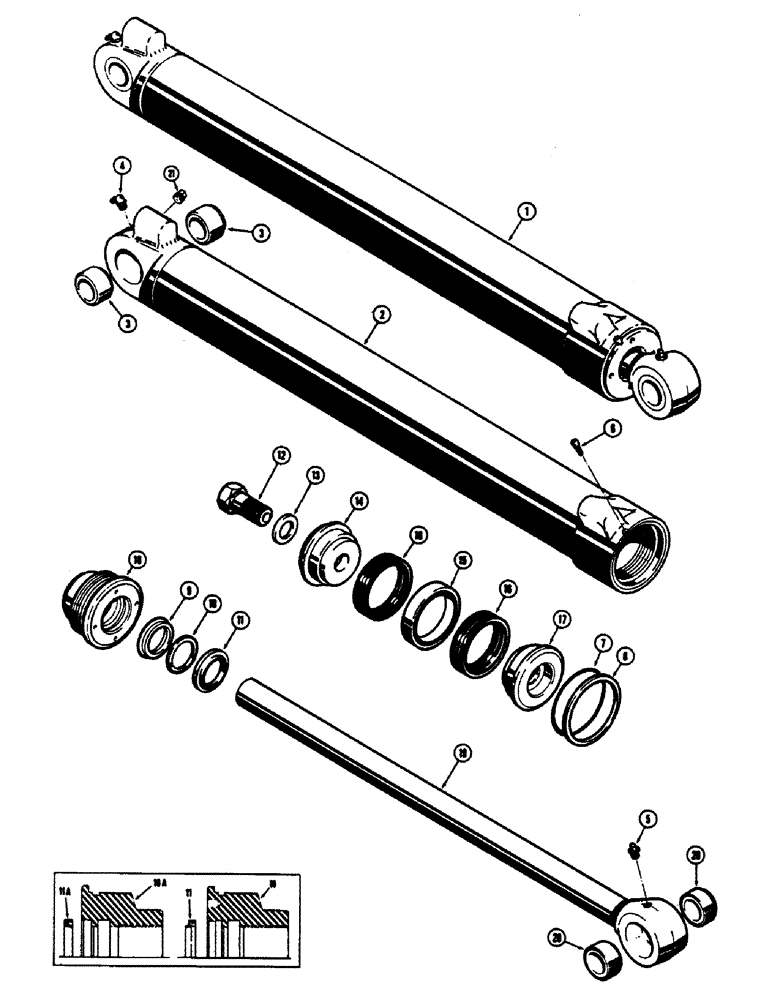

Запчасти Case 680CK (176) - BACKHOE CROWD CYLINDERS, D44658 AND D49525, CYLINDER WITH SNAP-IN TYPE OUTER ROD WIPER (35) - HYDRAULIC SYSTEMS

1

D44658

CYLINDER - hydraulic, crowd (4-1/2" I.D. x 40-1/8" stroke) When stock is exhausted, order D49525 crowd cylinder for service, Includes: Ref. 2 - 21

1шт.

1

D49525

CYLINDER BLOCK

CYLINDER - hydraulic, crowd (4-1/2" I.D. x 40-1/8" stroke), Includes: Ref. 2 - 21

1шт.

2

D44661

CYLINDER

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- cylinder tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D42878

GLAND

KIT - packing, gland type cylinder, Includes: Ref. 6 - 11A

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D38932

BACK-UP RING

RING - backup, gland seal

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

10

D39539

RING

- backup, rod seal

1шт.

11

D39360

WIPER

- rod (Used in D44658 cylinder only)

1шт.

11a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod (Used as production item in D49525 cylinder and as service replacement with D49504 gland in D44658 cylinder)

1шт.

12

D38425

BOLT

- special

1шт.

13

D36434

WASHER

- special (When stock is exhausted, order D95033 washer for service)

1шт.

14

D46931

PISTON

- split, bolt end

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - packing, piston

1шт.

16

D47205

PACKING

- piston, chevron

2шт.

17

D46425

PISTON

- split, rod end

1шт.

18

D44663

GLAND

ASSEMBLY - packing

1шт.

18a

D49504

GLAND ASSEMBLY - packing (Used as production item in D49525 cylinder and as service replacement with D95145 rod wiper in D44658 cylinder)

1шт.

19

D44659

ROD

- piston (2-1/4" dia.), Includes: Ref. 20

1шт.

20

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

21

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT) If used

1шт.
