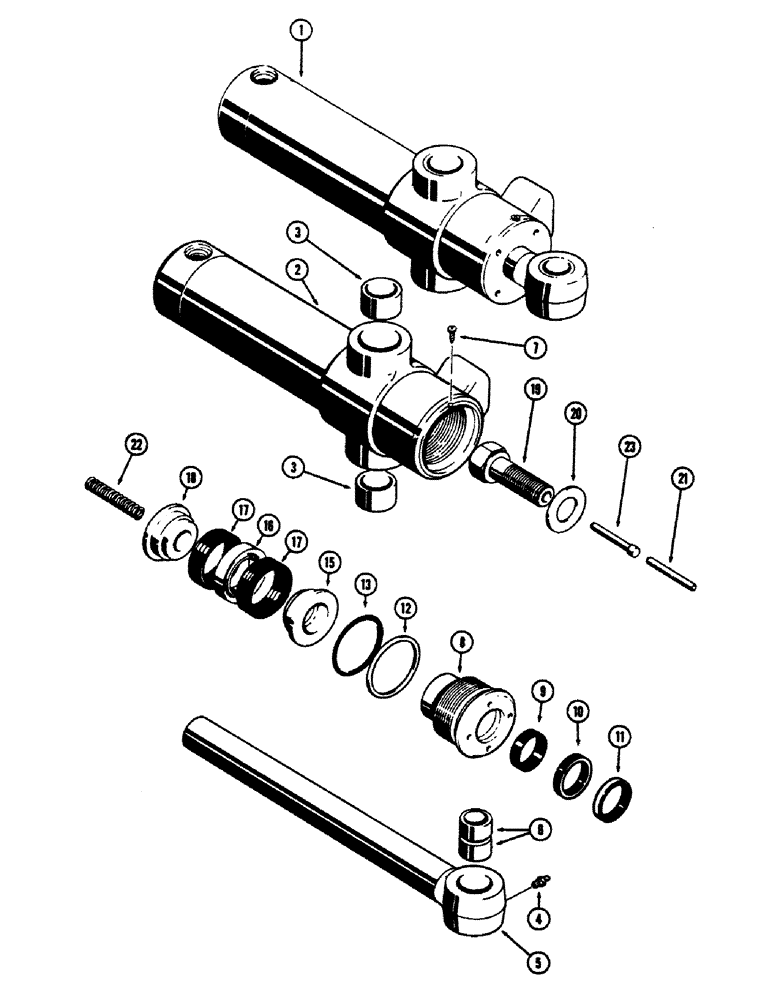

Запчасти Case 680CK (173C) - G32675 & G32676 BACKHOE SWING CYLINDERS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
G32676
CYLINDER ASSY. - swing, R.H. (Order G32878), Includes: Ref. 2 - 23
1шт.
1
G32675
CYLINDER ASSY. - swing, L.H. (Order G32879), Includes: Ref. 2 - 23
1шт.
2
D45306
CYLINDER
TUBE ASSY. - cylinder, R.H. (Order G32882), Includes: Ref. 3
1шт.
2
D45305
CYLINDER
TUBE ASSY. - cylinder, L.H. (Order G32883), Includes: Ref. 3
1шт.
3
D44543
BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L
- tube
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" P.T. str.
1шт.
5
D47975
PISTON ROD
ROD ASSY. - piston, Includes: Ref. 6
1шт.
6
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- rod
2шт.
7
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - #8-32 x 1/4" self-tapping
1шт.
8
G32114
GLAND - packing (Order G32730)
1шт.
9
D27380
SCRAPER RING
WIPER - rod, inner
1шт.
Part of cylinder packing seal kit P/N G32695
1шт.
10
D36971
RING
SEAL - rod
1шт.
Part of cylinder packing seal kit P/N G32695
1шт.
11
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
- Rod, outer
1шт.
Part of cylinder packing seal kit P/N G32695
1шт.
12
G32284
BACK-UP RING
- back-up
1шт.
Part of cylinder packing seal kit P/N G32695
1шт.
13
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
"O" RING - 4-1/2 x 4-3/4 x 1/8"
1шт.
Part of cylinder packing seal kit P/N G32695
1шт.
15
D49166
PISTON ASSY.
PISTON - split, rod end
1шт.
16
D47210
BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk
RING - piston, vee seal
1шт.
17
D47205
PACKING
- piston, vee seal
2шт.
Part of cylinder packing seal kit P/N G32695
1шт.
18
D46931
PISTON
- split, bolt end
1шт.
19
D44557
BOLT
- piston retaining
1шт.
20
G32351
WASHER
- piston bolt, 1-11/32 x 2-1/2 x 9/64"
1шт.
21
D46155
SPACER
- cushion pin
1шт.
22
D44554
VALVE SPRING
SPRING - cushion
1шт.
23
D46171
AXLE PIN
PIN - cushion
1шт.
G32695
PACKAGE, REPAIR
SEAL KIT - cylinder packing, Includes: Ref. 9 thru 13 and 17
1шт.
Выбрано товаров: 31
