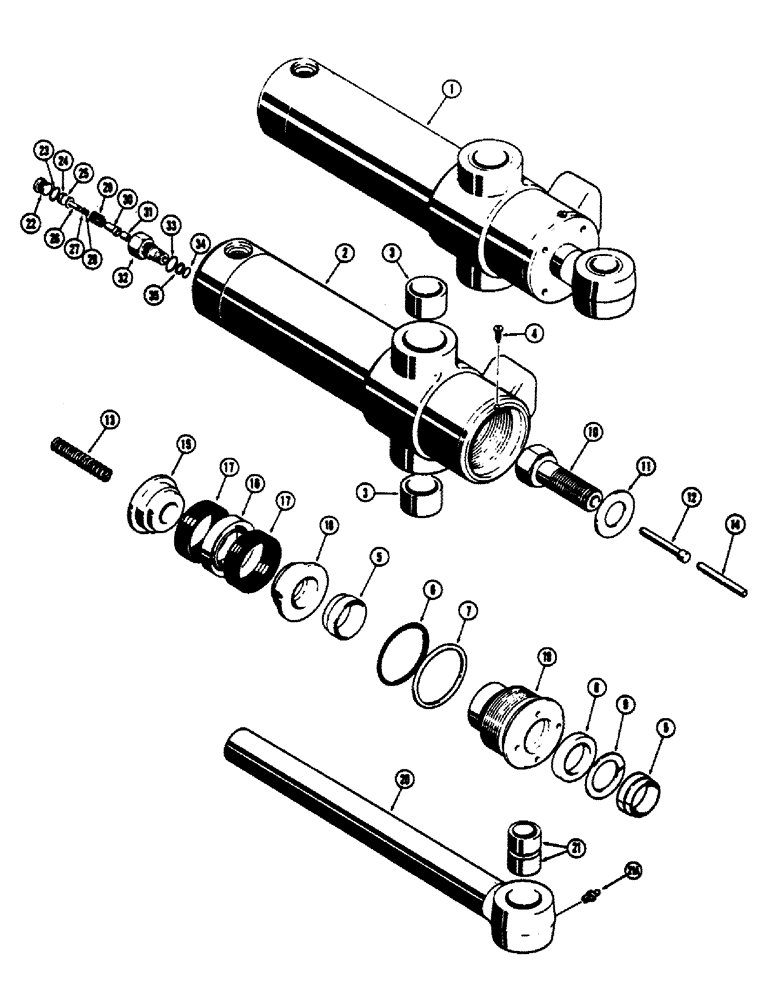

Запчасти Case 680CK (172) - D45303 AND D45304 BACKHOE SWING CYLINDERS, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER (35) - HYDRAULIC SYSTEMS

1

D45303

CYLINDER

- hydraulic, swing (L.H.) 4-1/2" I.D. x 11-3/8" stroke, Includes: Ref. 2 - 21A

1шт.

D45304

CYLINDER

- hydraulic, swing (R.H.) 4-1/2" I.D. x 11-3/8" stroke, Includes: Ref. 2 - 21A

1шт.

2

D45305

CYLINDER

TUBE - cylinder, L.H., Includes: Ref. 3

1шт.

D56306

TUBE - cylinder, R.H., Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube

2шт.

D47651

GLAND

KIT - packing, gland type cylinder, Includes: Ref. 4 - 9

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

5

D27380

SCRAPER RING

WIPER - rod

2шт.

6

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

7

D42452

RING

- backup, gland seal

1шт.

8

D36971

RING

SEAL - rod

1шт.

9

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

10

D44557

BOLT

- special

1шт.

11

D43745

WASHER

- special, bolt (When stock is exhausted, order D95033 washer for service)

1шт.

11

D95033

WASHER

- special bolt

1шт.

12

D46171

AXLE PIN

PIN - restrictor

1шт.

13

D44554

VALVE SPRING

SPRING - pin

1шт.

14

D46155

SPACER

STOP - restrictor pin

1шт.

15

D38934

PISTON

- split, bolt end (When stock is exhausted, order D46931 piston for service)

1шт.

15

D46931

PISTON

- split, bolt end

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - packing, piston

1шт.

17

D47205

PACKING

- piston, chevron

2шт.

18

D44556

PISTON

- split, rod end (When stock is exhausted, order D49166 piston for service)

1шт.

18

D49166

PISTON ASSY.

PISTON - split, rod end

1шт.

19

D44552

GLAND

- packing

1шт.

20

D47975

PISTON ROD

ROD - piston (2" dia.), Includes: Ref. 21

1шт.

21

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

21a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D44766

VALVE

CARTRIDGE - relief valve, non-adjustable, Includes: Ref. 22 - 35

1шт.

22

D40354

PLUG

- relief valve, Includes: Ref. 23

1шт.

24

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

25

16917

SHIM

- spring guide, .010"

1шт.

26

D37073

GUIDE

- spring

1шт.

27

D40357

RING

- backup, spring guide

1шт.

28

D40356

O-RING

SEAL - "O" ring, spring guide

1шт.

29

D37148

SPRING

- plunger

1шт.

30

D37074

PLUNGER

- relief valve

1шт.

31

D37075

SEAT

- plunger

1шт.

32

D47667

CAP

BODY - relief valve

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Valve body to cylinder

1шт.

34

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, valve body

1шт.

35

D37071

RING

- backup, valve body seal

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
