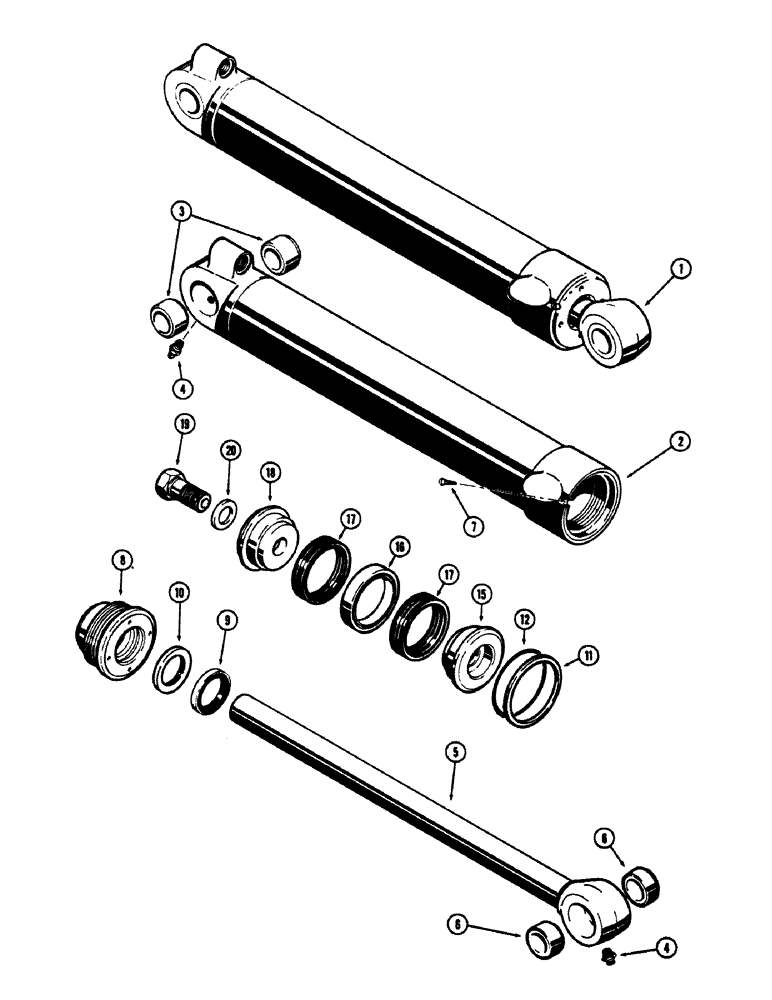

Запчасти Case 680CK (171A) - G32687 BACKHOE BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

G32687

CYLINDER

ASSY. - bucket, Includes: Ref. 2 - 20

1шт.

2

D43351

CYLINDER

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

5

D38957

PISTON ROD

ROD ASSY. - piston, Includes: Ref. 6

1шт.

6

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- rod

2шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" self-tapping

1шт.

8

D49500

GLAND

- packing

1шт.

9

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of cylinder packing seal kit P/N G32697

1шт.

10

D39359

RUBBER SEAL

SEAL - rod

1шт.

Part of cylinder packing seal kit P/N G32697

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of cylinder packing seal kit P/N G32697

1шт.

12

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8"

1шт.

Part of cylinder packing seal kit P/N G32697

1шт.

15

D49168

PISTON

- split, rod end

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - piston, vee seal

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, vee seal

2шт.

Part of cylinder packing seal kit P/N G32697

1шт.

18

D46930

PISTON

- split, bolt end

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

Piston retaining Hex, 1 1/4"-12 x 2 1/2", G8

1шт.

20

G32351

WASHER

- piston bolt, 1-11/32 x 2-1/2 x 9/64"

1шт.

G32697

SEAL

KIT - cylinder packing, Includes: Ref. 9 thru 12 and 17

1шт.
