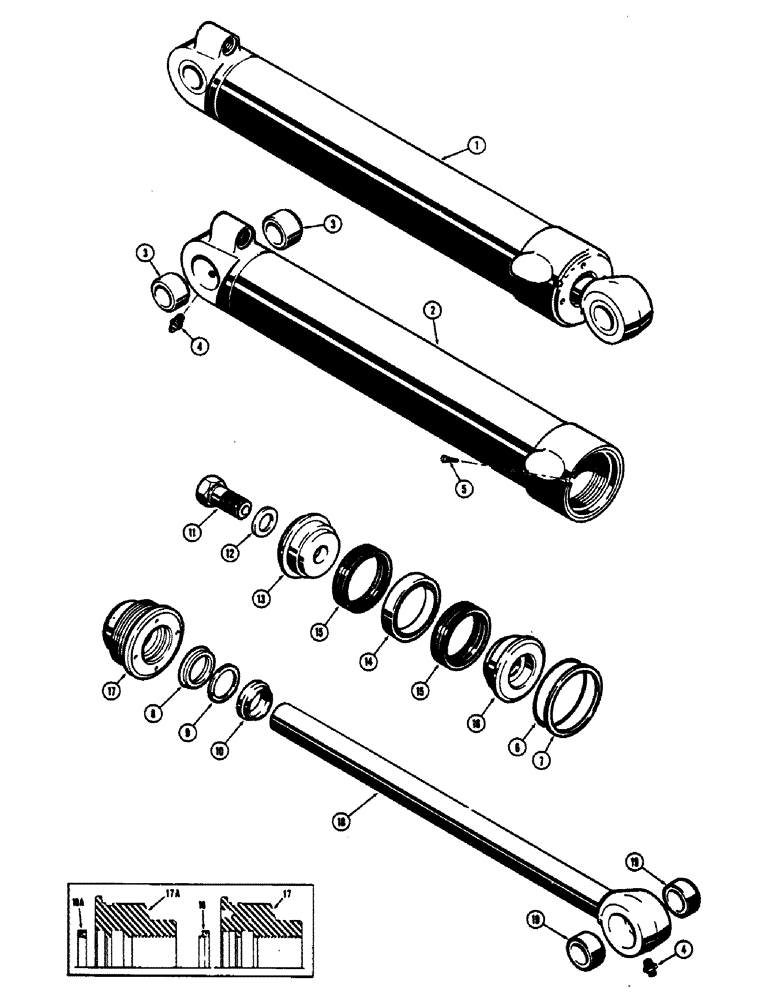

Запчасти Case 680CK (170) - D42628 AND D49524, BACKHOE BUCKET CYLINDERS, CYLINDER WITH SNAP-IN TYPE OUTER ROD WIPER (35) - HYDRAULIC SYSTEMS

1

D42628

CYLINDER

- hydraulic, bucket (4" I.D. x 27-1/4" stoke) When stock is exhausted, order D49524 bucket cylinder for service, Includes: Ref. 2 - 19

1шт.

1

D49524

CYLINDER - hydraulic, bucket (4" I.D. x 27-1/4" stroke), Includes: Ref. 2 - 19

1шт.

2

D43351

CYLINDER

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

D42877

GLAND

KIT - packing, gland type cylinder, Includes: Ref. 5 - 10A

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

7

D27382

RING

- backup, gland seal

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

9

D39539

RING

- backup, rod seal

1шт.

10

D39360

WIPER

- rod (Used in D42628 cylinder only)

1шт.

10a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod (Used as production item in D49524 cylinder and as service replacement with D49500 gland in D42628 cylinder)

1шт.

11

D31642

BOLT

- special

1шт.

12

D36434

WASHER

- special (When stock is exhausted, order D95033 washer for service)

1шт.

12

D95033

WASHER

- special

1шт.

13

D28370

PISTON

- split, bolt end (When stock is exhausted, order D46930 piston for service)

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, chevron

2шт.

16

D38958

PISTON

- split , eye end (When stock is exhausted, order D49168 piston for service)

1шт.

16

D49168

PISTON

- split, eye end

1шт.

17

D39368

GLAND

ASSEMBLY - packing (Used in D42628 cylinder only) Order D49500 gland assembly and D95145 rod wiper for service)

1шт.

17a

D49500

GLAND

ASSEMBLY - packing (Used as production item in D49524 cylinder as service replacement with D95145 roe wiper in D42628 cylinder)

1шт.

18

D38957

PISTON ROD

ROD - piston (2-1/4" dia.)

1шт.

19

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- rod

2шт.
