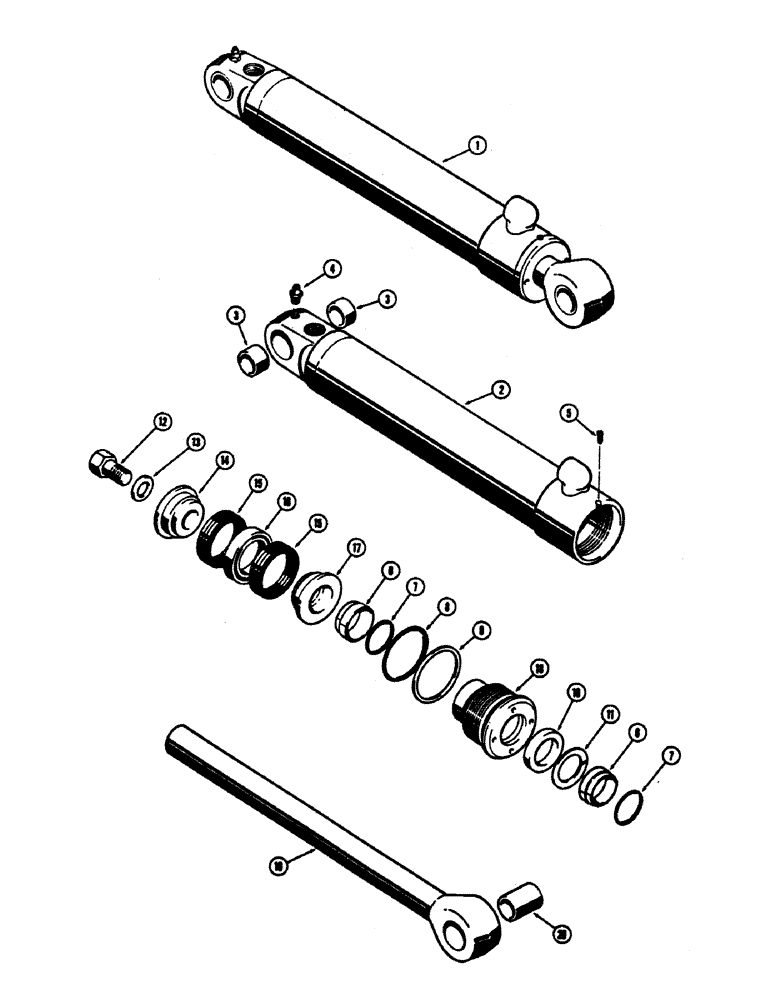

Запчасти Case 680CK (168) - D42708 BACKHOE STABILIZER CYLINDER, CYLINDER WITH FLAT SNAP-IN TUPE OUTER ROD WIPER (35) - HYDRAULIC SYSTEMS

1

D42708

CYLINDER - hydraulic stabilizer (4" I.D. x 21-3/8" stroke), Includes: Ref. 2 - 20

2шт.

2

D42707

CYLINDER

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D42876

GLAND

KIT - packing, gland type cylinder, Includes: Ref. 5 - 11

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

6

D27380

SCRAPER RING

WIPER - rod

2шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D36095

BACK-UP RING

- backup, gland seal

1шт.

10

D36971

RING

SEAL - rod

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

12

D31642

BOLT

- special

1шт.

13

D36434

WASHER

- special (When stock is exhausted, order D95033 washer for service)

1шт.

13

D95033

WASHER

- special

1шт.

14

D28370

PISTON

- split, bolt end (When stock is exhausted, order D46930 piston for service)

1шт.

14

D46930

PISTON

- split, bolt end

1шт.

15

D43112

PACKING

- piston, chevron

2шт.

16

D43113

PACKAGE

RING - packing, piston

1шт.

17

D28371

PISTON

- split, eye end (When stock is exhausted, order D46424 piston for service)

1шт.

17

D46424

PISTON

- split, eye end

1шт.

18

D45071

GLAND

- packing

1шт.

19

D42703

ROD ASSY.

ROD - piston (2" dia.), Includes: Ref. 20

1шт.

20

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- rod

1шт.
