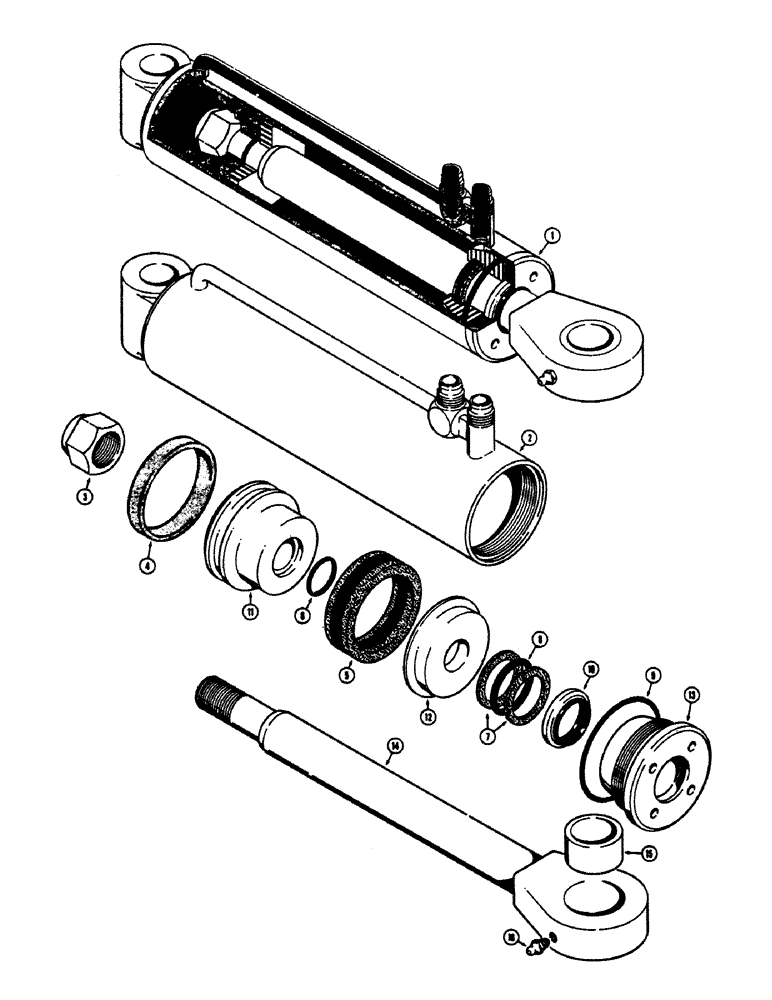

Запчасти Case 680CK (166) - A18679 DROTT CLAM CYLINDER (35) - HYDRAULIC SYSTEMS

1

A18679

CYLINDER

- hydraulic, clam (3-1/2" I.D. x 9-3/4" stroke), Includes: Ref. 2 - 16

1шт.

2

A18680

TUBE

- cylinder

1шт.

D35644

CYLINDER

KIT - packing, cylinder, Includes: Ref. 3 - 10

1шт.

3

131-21

LOCK NUT,1 1/8"-12, GB

NUT - hex., lock (1-1/8"-12 NF)

1шт.

4

A18693

RING

- wear

1шт.

5

A18684

PACKING

- piston

1шт.

6

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, piston

1шт.

7

A18686

WASHER

- backup, leather

2шт.

8

A18687

O-RING

SEAL - "O" ring, gland packing

1шт.

9

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

SEAL - "O" ring, gland

1шт.

10

A18690

RING

WIPER - rod

1шт.

11

A18682

PISTON

- split, nut end

1шт.

12

D35619

PISTON - split, rod end

1шт.

13

A18689

GLAND

- packing

1шт.

14

A18691

ROD

- piston (1-1/2" dia.), Includes: Ref. 15

1шт.

15

A17670

BUSHING

- piston rod

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight

1шт.
