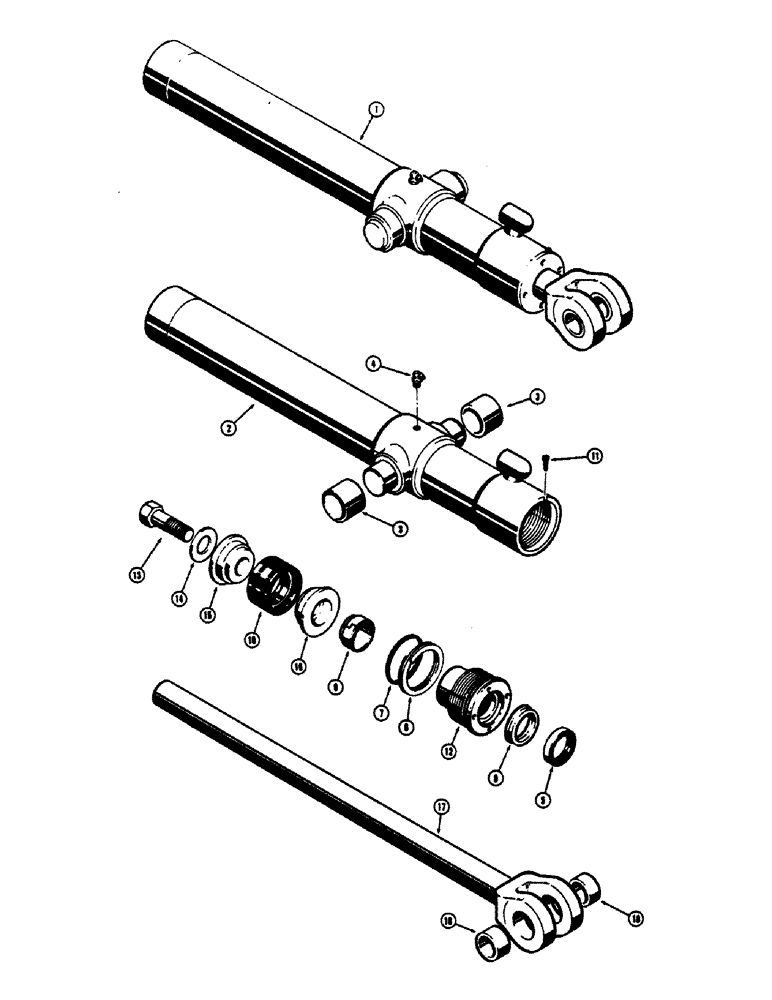

Запчасти Case 680CK (163A) - G32140 AND G32137 LOADER TILT CYLINDERS, CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER (35) - HYDRAULIC SYSTEMS

1

G32140

CYLINDER

- hydraulic, R.H. tilt (3" I.D. x 23-9/16" stroke), Includes: Ref. 2 - 18

1шт.

1

G32137

CYLINDER

- hydraulic, L.H. tilt (3" I.D. x 23-9/16" stroke) Not illustrated, Includes: Ref. 2 - 18

1шт.

2

D35102

TUBE

- cylinder, R.H., Includes: Ref. 3

1шт.

2

D35103

TUBE

- cylinder, L.H. (Not illustrated), Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

G32289

SEAL

KIT - seal repair, Includes: Ref. 5 - 10

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D36970

CUP

SEAL - rod

1шт.

9

D27432

SHIM

- rod, inner

1шт.

10

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8-32 NC x 1/4")

1шт.

12

G32115

GLAND

- packing

1шт.

13

D32861

BOLT

- special

1шт.

14

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

15

D28896

PISTON

- split, bolt end

1шт.

16

D28897

PISTON

- split, yoke end

1шт.

17

D35098

PISTON

ROD AND YOKE - piston (1-3/4" dia.), Includes: Ref. 18

1шт.

18

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod

2шт.
