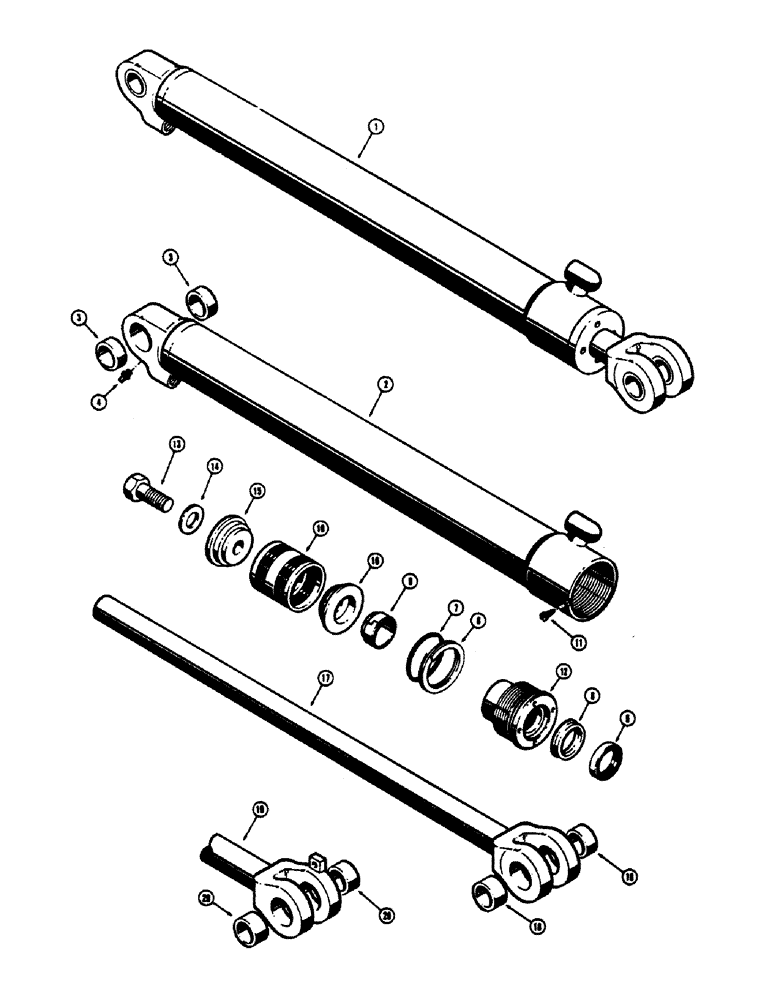

Запчасти Case 680CK (161A) - G32139 AND G32164 LOADER LIFT CYLINDERS, CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER (35) - HYDRAULIC SYSTEMS

1

G32139

CYLINDER - hydraulic, L.H. loader lift (3-1/2" I.D. x 31" stroke), Includes: Ref. 2 - 20

1шт.

1

G32164

CYLINDER

- hydraulic, R.H. loader lift (3-1/2" I.D. x 31" stroke) Not illustrated, Includes: Ref. 2 - 20

1шт.

2

D35063

TUBE

- cylinder (L.H.), Includes: Ref. 3

1шт.

2

D35064

TUBE

- cylinder (R.H.) Not illustrated, Includes: Ref. 3

1шт.

3

D35071

BUSHING

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

G32290

SEAL

KIT - seal repair, Includes: Ref. 5 - 10

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper, rod, outer

1шт.

6

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D36971

RING

SEAL - rod

1шт.

9

D27380

SCRAPER RING

WIPER - rod, inner

1шт.

10

D36963

PACKING

- piston

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8-32 NC x 1/4")

1шт.

12

G32112

GLAND

- packing

1шт.

13

D32861

BOLT

- special

1шт.

14

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

15

D28367

PISTON

- split, bolt end

1шт.

16

D28368

PISTON

- split, rod end

1шт.

17

D35057

PISTON ROD

ROD - piston, 2" dia. (G32139 L.H. cylinder only), Includes: Ref. 18

1шт.

18

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

19

D42739

ROD ASSY.

ROD - piston, 2" dia. (G32164 R.H. cylinder only), Includes: Ref. 20

1шт.

20

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.
