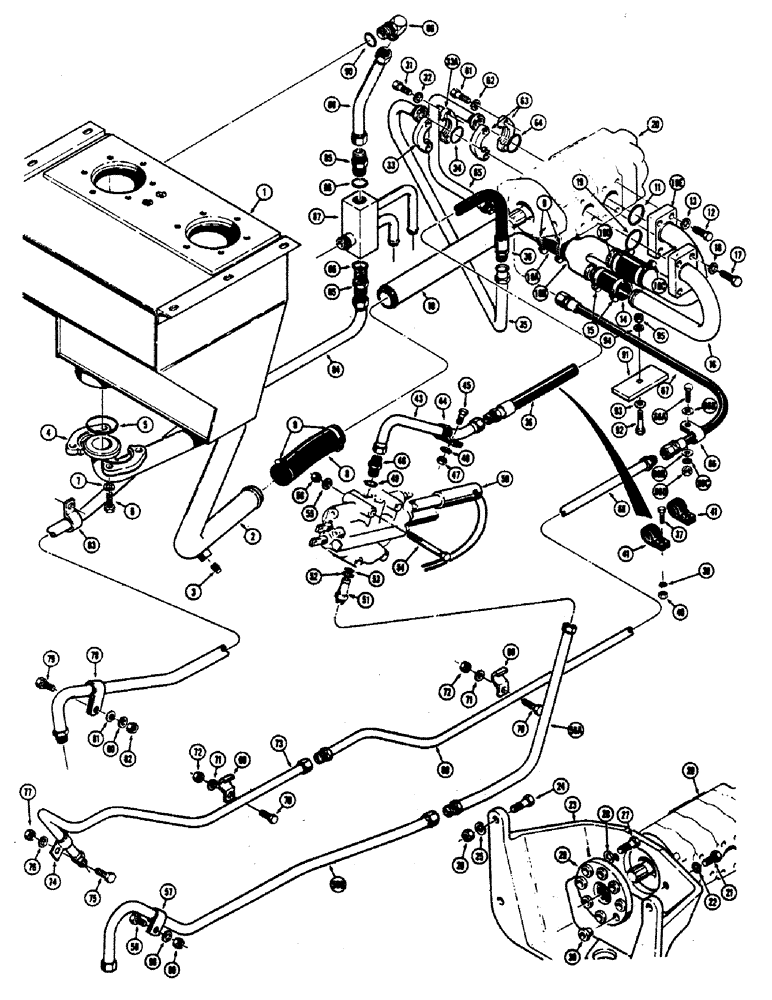

Запчасти Case 680CK (157A) - EQUIPMENT HYD., PUMP SUCTION & PRESSR LINE HYD., USED ON TRAC. S/N 9103613 & AFT. (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

TANK - hydraulic oil reservoir (See Figure 104 for service)

1шт.

2

L25763

TUBE - suction, tank to pump 2" OD x 26.8, 18.9" L

1шт.

3

221-674

DRAIN PLUG,Sq Hd, 1/2" NPT

PLUG - drain, magnetic (1/2" NPT)

1шт.

4

A14141

FLANGE

- split, tube (2")

2шт.

5

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

SEAL - "O" ring, flange

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

L25993

HOSE,2.00" ID x 8.00"

Suction, Tank to Junction Tube 2.00" ID x 8.00"

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

10

L40466

TUBE - suction tube to pump 2" OD x 12.7, 4.5" L

1шт.

10a

L40465

HOSE - low pressure, tank to joint (4" long) 2" I.D.

1шт.

10b

L40462

JOINT TURNING

Y JOINT - junction, suction, Serial Range: tube-pump

1шт.

10c

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

10d

L19862

HOSE,1.50" ID x 4.00", SAE 100R1

Low Pressure, Joint to Pump 1.50" ID x 4.00", SAE 100R1

1шт.

10e

L40002

TUBE,1.5" OD x 2.8" L

- suction, joint to pump

1шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2"-13 NC x 1-3/4"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

L40547

HOSE

- suction, junction to pump (1-1/4" I.D. x 4" long)

1шт.

15

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

16

L40464

TUBE

- suction, junction to pump (1-1/4")

1шт.

17

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

18

92-7

LOCK WASHER,7/16"

4шт.

19

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

20

L26379

PUMP

- hydraulic, equipment (25 G.P.M. and 17 G.P.M. 42 G.P.M. total at 2000 P.S.I. at 2000 R.P.M.) See Figure 200

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

L10793

BRACKET

- pump and engine mounting

1шт.

24

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

26

25-1012

NUT,3/4"-10, G5

4шт.

27

L11274

LOCK BOLT

BOLT - special, coupling mounting

8шт.

28

195-29

WASHER,7/16"

- plain () 7/16"

8шт.

L16692

COUPLING, BREAK AWAY

COUPLING - pump to crankshaft pulley, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

30

G36905

BLOCK

BUSHING - hub

8шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"-16 NC x 1-1/2"

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

A12306

FLANGE

- split, tube (1")

1шт.

33a

L19864

CLAMP

FLANGE - split, tube (1") Sheared edge

1шт.

34

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

35

L25909

TUBE ASSY.

TUBE - pump to loader control valve, at pump

1шт.

36

L11315

HOSE

- pressure, pump to loader control valve (39" long)

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

41

R13931

CLAMP

- hose

2шт.

43

L11472

TUBE,1" OD x 12.44, 6.06" L

- pump to loader control valve, at valve

1шт.

44

49789

CLAMP

- tube

1шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

46

92-5

LOCK WASHER,5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 NC)

1шт.

48

L12050

CONNECTOR, ELEC

ADAPTER - male, straight (Special)

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

50

REF

INSTRUCTION

VALVE - hyd., ldr. control (See Figure 178 for proper valve), Includes: Ref. 51 - 53

1шт.

51

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 52 and 53

1шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, connector (Large)

1шт.

53

L32680

RING

SEAL - "O" ring, connector (Small)

1шт.

54

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8"-16 NC x 4-1/2"

3шт.

55

92-6

LOCK WASHER,3/8"

3шт.

56

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

3шт.

56a

L26259

TUBE - ldr. valve to b/hoe valve, end inlet (At ldr. valve) 1" OD x 16.7, 12.38" L

1шт.

56b

L25917

TUBE,36.1, 8.3" L

- ldr. valve to b/hoe valve, end inlet (At b/hoe valve)

1шт.

57

49840

CLAMP

- tube

1шт.

58

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

59

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

60

25-104

NUT,1/4"-20, G5

1шт.

61

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"-16 NC x 1-1/2"

4шт.

62

92-6

LOCK WASHER,3/8"

4шт.

63

A16961

FLANGE

- split (3/4")

2шт.

64

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

65

L25900

TUBE ASSY.

TUBE - pump to backhoe valve, center inlet (At pump)

1шт.

66

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- tube

1шт.

66a

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

66b

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

66c

92-5

LOCK WASHER,5/16"

1шт.

66d

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 NC)

1шт.

67

D31796

HOSE

- pump to backhoe (29" long)

1шт.

68

L26262

TUBE - pump to backhoe valve, center inlet (Intermediate) 0.75" OD x 69.6, 4.25" L

1шт.

69

L25930

CLAMP

- tube

2шт.

70

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8"-16 NC x 1/2"

2шт.

71

92-6

LOCK WASHER,3/8"

2шт.

72

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

73

L25921

TUBE,0.75" OD x 26.8, 6.9" L

- pump to backhoe valve, center inlet (Rear)

1шт.

74

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

1шт.

75

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

76

92-6

LOCK WASHER,3/8"

1шт.

77

25-106

NUT,3/8"-16, G5

- hex. (3/8"_16 NC)

1шт.

78

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- tube

1шт.

79

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

80

92-5

LOCK WASHER,5/16"

1шт.

81

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

82

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 NC)

1шт.

83

L19682

CLAMP - tube, at fuel tank mounting bolt

1шт.

84

L25919

TUBE - return, backhoe valve to reservoir 1.25" OD x 68.8, 8.6" L

1шт.

85

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 86

2шт.

86

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

87

L24325

MANIFOLD - oil cooler (See Figure 158 for related parts)

1шт.

88

L25792

TUBE - return, Serial Range: manifold-reservoir

1шт.

89

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- adjustable, 90 degrees, Includes: Ref. 90

1шт.

90

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

91

L41803

BRACKET - hose mounting

1шт.

92

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

93

95-6

WASHER,3/8"

- standard wrot

1шт.

94

92-6

LOCK WASHER,3/8"

1шт.

95

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

1шт.
