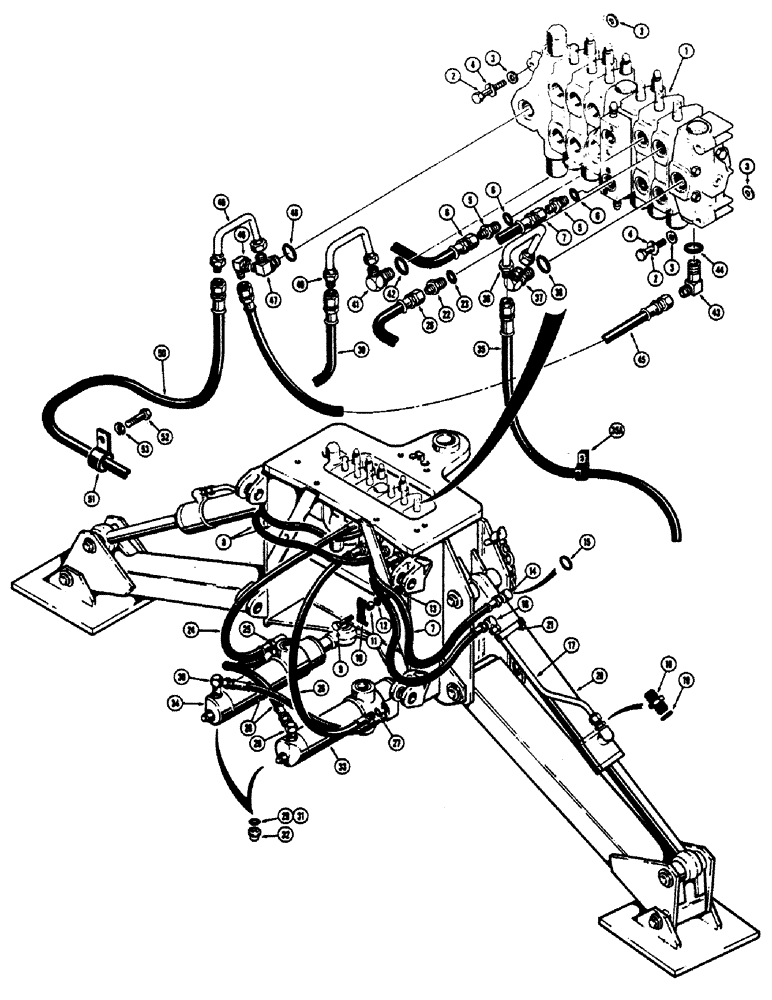

Запчасти Case 680CK (146) - BACKHOE HYDRAULICS, SWING, STABILIZER, INLET AND OUTLET HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

L42904

VALVE

- hydraulic, backhoe control (Figure 188)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

3шт.

3

95-8

WASHER,1/2"

- standard wrot 1/2"

6шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 6

4шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, stabilizer cylinder hydraulics

1шт.

7

D40809

HOSE

- valve to R.H. stabilizer cylinder (33-1/2" long), hydraulics

2шт.

8

D39220

HOSE ASSY.

HOSE - valve to L.H. stabilizer cylinder (43" long), hydraulics

2шт.

9

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cylinder hydraulics Hex, 5/16"-18 x 2 1/4", G5

2шт.

10

D33316

CLAMP

- hose, stabilizer cylinder hydraulics

2шт.

11

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulics

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16"), stabilizer cylinder hydraulics

2шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16"-18 NC), stabilizer cylinder hydraulics

2шт.

14

D23974

ELBOW

- adjustable, 90 degrees (Closed end), stabilizer cylinder hydraulics, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

16

D26361

FITTING

ELBOW - female, 90 degrees, stabilizer cylinder hydraulics

2шт.

17

D43621

TUBE

- valve to stabilizer cylinder, rod end, hydraulics

2шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

20

D42708

CYLINDER - hydraulic, stabilizer (4" I.D. x 21-3/8" stroke) Figure 168

2шт.

21

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder, stabilizer hydraulics

2шт.

22

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, swing cylinder hydraulics, Includes: Ref. 23

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, swing cylinder hydraulics

1шт.

24

D45558

HOSE ASSY.

HOSE - upper valve port to L.H. swing cylinder, rod end (35" long), hydraulics, Includes: Ref. 25

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.

26

D37219

HOSE

- lower valve port to R.H. swing cylinder, rod end crossover swing cylinders (30" long), hydraulics, Includes: Ref. 27

3шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees (R.H. swing cylinder), hydraulics, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cylinder hydraulics

1шт.

30

D36934

FITTING

ELBOW - adjustable, 90 degrees (L.H. swing cylinder), hydraulics, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cylinder hydraulics

1шт.

32

L42801

VALVE, CHECK

RESTRICTOR - check, swing cylinder hydraulics

2шт.

33

D45304

CYLINDER

- hydraulic, R.H. swing (4-1/2" I.D. x 11-3/8" stroke) Figure 172, swing cylinder hydraulics

1шт.

34

D45303

CYLINDER

- hydraulic, L.H. swing (4-1/2" I.D. x 11-3/8" stroke) Figure 172, swing cylinder hydraulics

1шт.

35

L16416

HOSE ASSY.

HOSE - to backhoe valve, end (41" long), inlet and outlet hydraulics

1шт.

35a

R13931

CLAMP

- hose, inlet and outlet hydraulics

1шт.

36

L16420

TUBE - to backhoe valve, end inlet, outlet hydraulics 0.39" OD x 8.0, 3.5" L

1шт.

37

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, inlet and outlet hydraulics, Incl. Ref. 38 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, inlet and outlet hydraulics

1шт.

39

L16415

HOSE,0.75" ID x 33.50", SAE 100R2A

ASSY, , To Backhoe Valve, Center, Inlet and Outlet Hydraulics 0.75" ID x 33.50", SAE 100R2A

1шт.

40

L26462

TUBE ASSY.

TUBE - to backhoe valve, center, inlet and outlet hydraulics

1шт.

41

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 90 degrees, inlet and outlet hydraulics, Includes: Ref. 42

1шт.

42

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, inlet and outlet hydraulics

1шт.

43

L42910

ELBOW UNION

ELBOW - adjustable, 90 degrees (Special), inlet and outlet hydraulics, Includes: Ref. 44

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, inlet and outlet hydraulics

1шт.

45

D44752

HOSE

- bypass, end inlet to outlet (25" long), inlet and outlet hydraulics

1шт.

46

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Adjustable, Inlet and outlet hydraulics 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

47

D44753

FITTING

TEE - special, bypass hose to outlet, inlet and outlet hydraulics, Includes: Ref. 48

1шт.

48

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, inlet and outlet hydraulics

1шт.

49

L16450

TUBE - return, valve outlet to reservoir, inlet and outlet hydraulics 1.25" OD x 7.88, 4.3" L

1шт.

50

L16417

HOSE ASSY.

HOSE - return, valve outlet to reservoir (52-1/2" long), inlet and outlet hydraulics

1шт.

51

L17513

CLAMP

- hose to transmission housing, inlet and outlet hydraulics

1шт.

52

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

Inlet and outlet hydraulics Hex, 5/8"-11 x 3/4", G5, Full Thd

1шт.

53

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Inlet and outlet hydraulics 5/8"

1шт.
