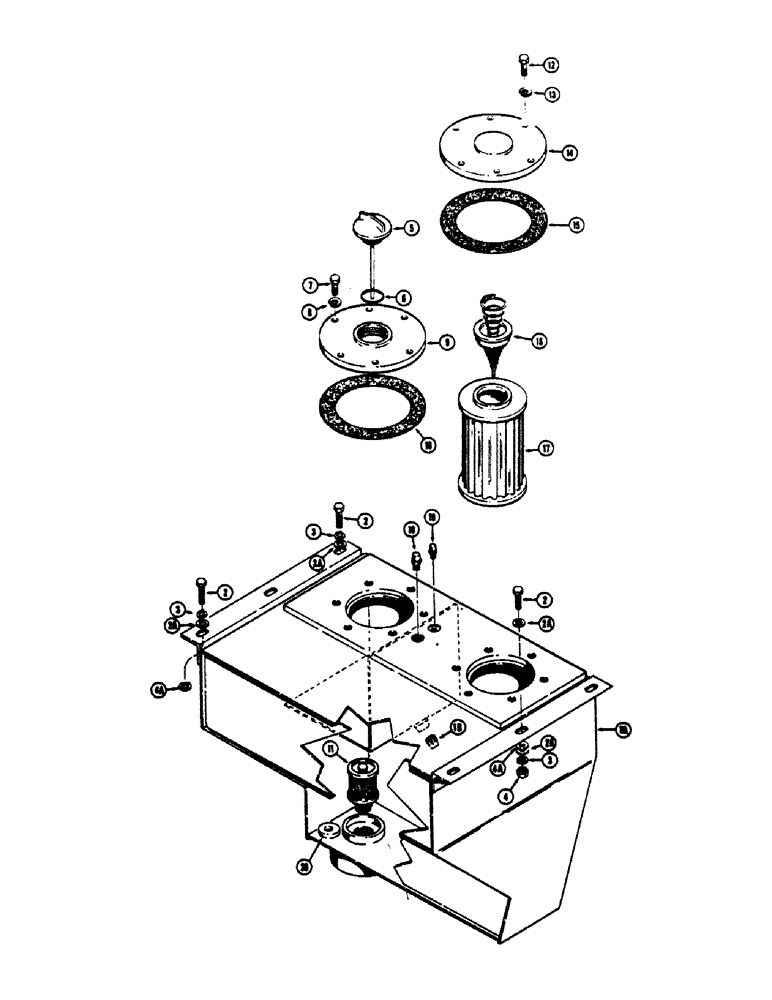

Запчасти Case 680CK (104) - HYDRAULIC TANK (35) - HYDRAULIC SYSTEMS

1

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT) Not shown

1шт.

1a

L43183

TANK

- hydraulic oil reservoir, Includes: Ref. 1B

1шт.

1b

221-676

PLUG

- pipe, magnetic drain (3/4" NPT)

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"-16 NC x 1-1/2"

3шт.

2a

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

1шт.

4a

A29277

WASHER

SPACER -, Serial Range: tank-chassis

1шт.

5

L26082

DIPSTICK

- hydraulic oil level gauge

1шт.

6

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "O" ring, dipstick

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

D34977

CAP

COVER - hydraulic tank, R.H.

1шт.

10

D34978

GASKET

- cover (When stock is exhausted, order D505047 gasket for service)

1шт.

10

D50547

GASKET,1.52mm Thk

- cover

1шт.

11

A18789

FILTER, ENGINE OIL

FILTER - hydraulic oil, suction line

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

D34976

COVER - hydraulic tank, L.H.

1шт.

15

D34978

GASKET

- cover (When stock is exhausted, order D50547 gasket for service)

1шт.

15

D50547

GASKET,1.52mm Thk

- cover

1шт.

16

D35996

VALVE PRESSURE RELIE

VALVE - filter bypass, 25 P.S.I.

1шт.

17

D35995

STRAINER ELEMENT

FILTER - hydraulic oil, return line

1шт.

18

R15538

VALVE

- hydraulic tank, air inlet

1шт.

19

R15536

VALVE

- hydraulic tank, relief

1шт.

20

L15043

MAGNET

- hydraulic tank

1шт.
