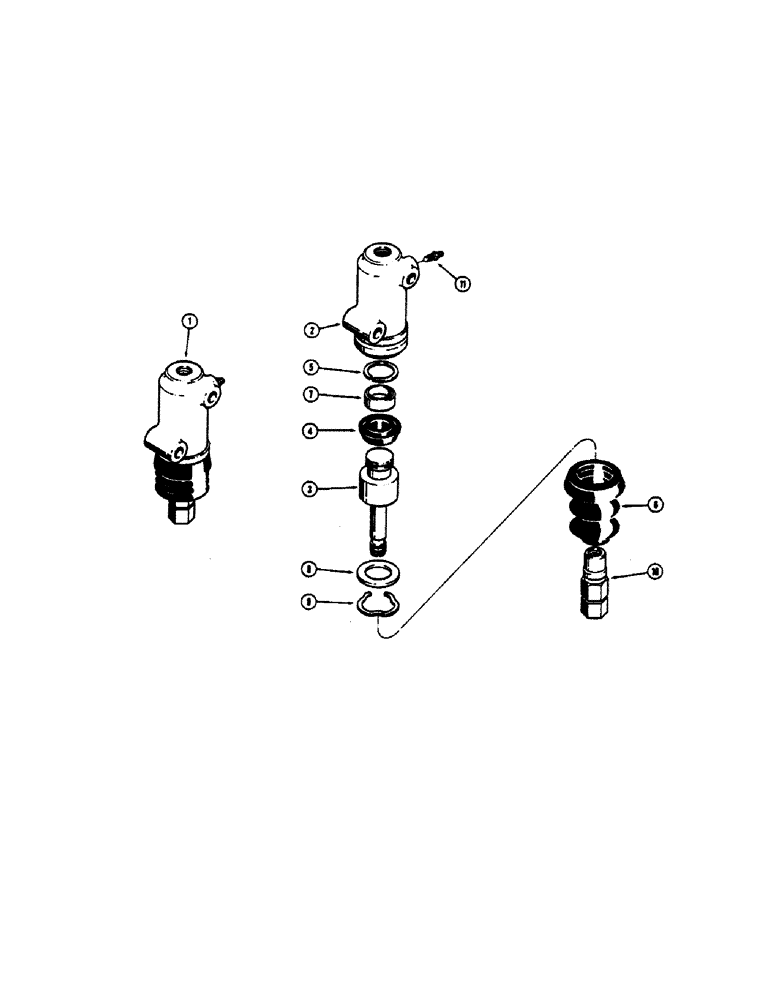

Запчасти Case 680CK (082[A]) - L25589 WHEEL CYLINDER (33) - BRAKES & CONTROLS

1

L25589

CYLINDER

- wheel, brake, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - wheel cylinder

1шт.

3

L32193

PISTON AND ROD ASSEMBLY - cylinder

1шт.

L32203

KIT

- cylinder repair, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

6

A12434

BOOT

- rod protector

1шт.

7

L32195

RETAINER - piston cup

1шт.

8

T39010

PLATE

- piston stop

1шт.

9

T39011

LOCKING DEVICE

LOCK WIRE - stop plate

1шт.

10

L32200

CONNECTOR, ELEC

CONNECTOR - piston rod

1шт.

11

L32202

SCREW,1/4" - 28

- bleeder

1шт.
