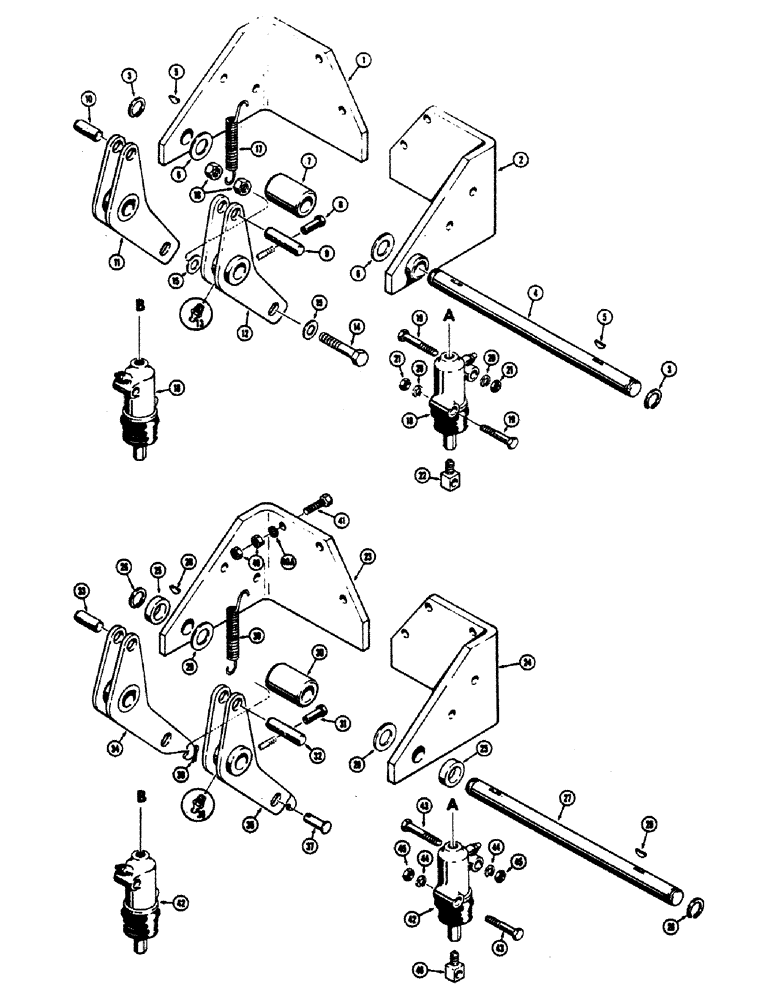

Запчасти Case 680CK (081A) - WHEEL BRAKE CYLINDERS AND LINKAGE, USED BEFORE TRACTOR S/N 9103640 (33) - BRAKES & CONTROLS

1

L16364

BRACKET

- wheel cylinder support, L.H. (When stock is exhausted, order L16361 bracket and L40650 spacer below for service)

1шт.

2

L16365

BRACKET

- wheel cylinder support, R.H. (When stock is exhausted, order L16360 bracket and L40650 spacer below for service)

1шт.

3

F62093

RING, SNAP

RING - snap

2шт.

4

L25738

SHAFT

- bellcrank pivot

1шт.

5

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

6

195-79

WASHER - plain (1-3/16")

2шт.

7

L25579

SPACER -, Serial Range: bellcrank-differential

1шт.

8

A27686

NUT

- retaining, differential, Serial Range: rod-trunnion

2шт.

9

L25736

TRUNNION - brake, bellcrank to differential brake rod (R.H.)

1шт.

10

L25907

TRUNNION - brake, bellcrank to differential brake rod (L.H.)

1шт.

11

L25733

BELLCRANK - brake, L.H.

1шт.

12

L25582

BELLCRANK - brake, R.H.

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

14

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

15

95-8

WASHER,1/2"

- plain 1/2"

4шт.

16

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

17

R15380

SPRING

- return, wheel cylinder

2шт.

18

L25589

CYLINDER

- wheel, brake (Figure 82 (1))

2шт.

19

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8"-16 NC x 2-3/4"

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

22

L25562

ROD EYE - push, wheel cylinder

2шт.

23

L16361

BRACKET - wheel cylinder support, L.H., Used on tractor s/n 9103640 and after

1шт.

24

L16360

BRACKET

- wheel cylinder support, R.H., Used on tractor s/n 9103640 and after

1шт.

25

L40650

SPACER

- bracket, Used on tractor s/n 9103640 and after

2шт.

26

F62093

RING, SNAP

RING - snap, Used on tractor s/n 9103640 and after

2шт.

27

L25738

SHAFT

- bellcrank pivot, Used on tractor s/n 9103640 and after

1шт.

28

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Used on tractor S/N 9103640 and after #15, 1/4" x 1"

2шт.

29

195-79

WASHER - plain (1-3/16"), Used on tractor s/n 9103640 and after

2шт.

30

L25579

SPACER - bellcrank to differential, Used on tractor s/n 9103640 and after

1шт.

31

A27686

NUT

- retaining, differential rod to trunnion, Used on tractor s/n 9103640 and after

2шт.

32

L25736

TRUNNION - brake, bellcrank to differential brake rod (R.H.), Used on tractor s/n 9103640 and after

1шт.

33

L25907

TRUNNION - brake, bellcrank to differential brake rod (L.H.), Used on tractor s/n 9103640 and after

1шт.

34

L40699

BELLCRANK - brake, L.H., Used on tractor s/n 9103640 and after

1шт.

35

L40700

BELLCRANK - brake, R.H., Used on tractor s/n 9103640 and after

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), Used on tractor s/n 9103640 and after

1шт.

37

R22609

PIN - bellcrank to cylinder, Used on tractor s/n 9103640 and after

2шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Used on tractor s/n 9103640 and after 1/8" x 1"

2шт.

39

R15380

SPRING

- return, wheel cylinder, Used on tractor s/n 9103640 and after

2шт.

40

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8"-16 NC), Used on tractor s/n 9103640 and after

4шт.

40a

92-6

LOCK WASHER,3/8"

Used on tractor s/n 9103640 and after 3/8"

2шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used on tractor S/N 9103640 and after Hex, 3/8"-16 x 2", G5

2шт.

42

L25589

CYLINDER

- wheel, brake (Figure 82 (1)), Used on tractor s/n 9103640 and after

2шт.

43

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8"-16 NC x 2-3/4", Used on tractor s/n 9103640 and after

4шт.

44

92-6

LOCK WASHER,3/8"

Used on tractor s/n 9103640 and after 3/8"

4шт.

45

25-106

NUT,3/8"-16, G5

- hex, (3/8"-16 NC), Used on tractor s/n 9103640 and after

4шт.

46

L25562

ROD EYE - push, wheel cylinder, Used on tractor s/n 9103640 and after

2шт.
